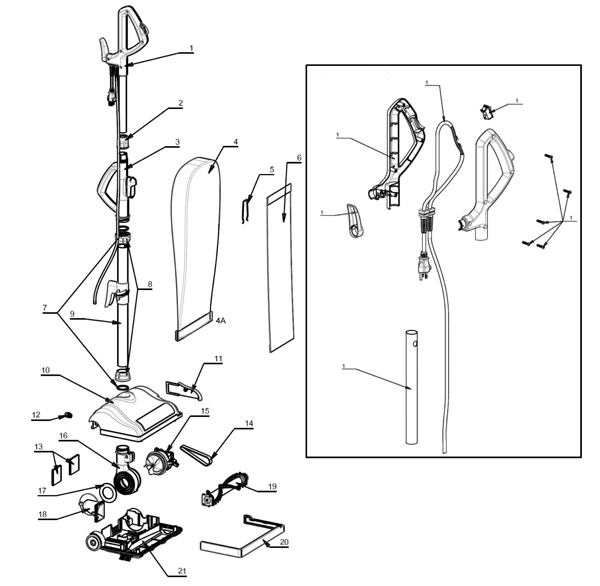

Entire Assembly - 194-0023 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
194-0613 |
Handle tube |
1 |
|
| 1b |
194-0614 |
Top handle grip |
1 |
|
| 1c |
194-0615 |
Upper cord hook |
1 |
|
| 1d |
194-0616 |
Cord harness with pig tail |
1 |
|
| 1e |
194-0617 |
On/off switch |
1 |
|
| 2 |
194-0620 |
Upper collar |
1 |
|
| 3 |
194-0621 |
Carry handle |
1 |
|
| 4a |
194-0622 |
Outer cloth bag |
1 |
|
| 6a |
194-0625 |
Paper bag (pkg of 10) |
1 |
|
| 6b |
194-0626 |
Paper bag (pkg of 25) |
1 |
|
| 8 |
194-0167 |
Lower retaining collar |
1 |
|
| 9 |
194-0168 |
Lower tube assembly |
1 |
|
| 12 |
194-0632 |
Strain relief bushing |
1 |
|
| 13 |
194-0633 |
Exhaust foam |
1 |
|
| 15 |
194-0636 |
Motor assembly |
1 |
|
| 16 |
194-0125 |
Fan housing |
1 |
|
| 17 |
194-0126 |
Inlet duct gasket |
1 |
|
| 19a |
194-0170 |
Brush roller |
1 |
|
| 19b |
194-0649 |
Brush roller (for BGU8500) |
1 |
|
| 20 |
194-0650 |
Furniture guard bumper |
1 |
|
| 21 |
194-0651 |
Base plate assembly |
1 |
|
|
|

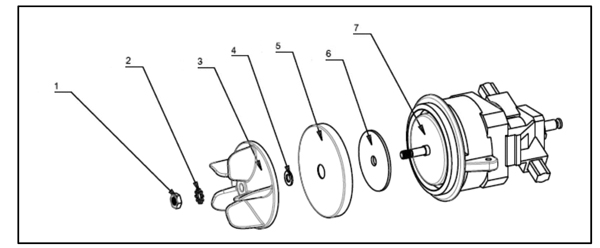

Motor Assembly - 194-0024 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 6 |
194-0642 |
Motor gasket |
1 |
|
| 7a |
194-0643 |
Motor (for BGU8000) |
1 |
|
| 7b |
194-0644 |
Motor (for BGU8500) |
1 |
|
|
|

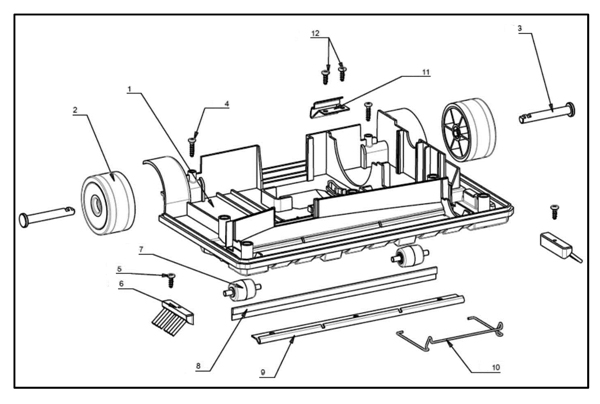

Base Assembly - 194-0025 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
194-0653 |
Rear wheel with oil bearing |
2 |
|
| 3 |
194-0654 |
Rear wheel shaft |
1 |
|
| 7 |
194-0658 |
Front roller with shaft |
1 |
|
| 8 |
194-0659 |
Rubber blade |
1 |
|
| 9 |
194-0660 |
Bottom metal plate |
1 |
|
| 10 |
194-0661 |
Support frame |
1 |
|
|
|
- Commonly Asked For Parts - 194-9994 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
194-0165 |
Paper vacuum bag (pkg of 10) |
|
|
| 03 |
194-0167 |
Lower retaining collar |
|
|
| 04 |
194-0168 |
Lower tube assembly |
|
|
|
|
