Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|

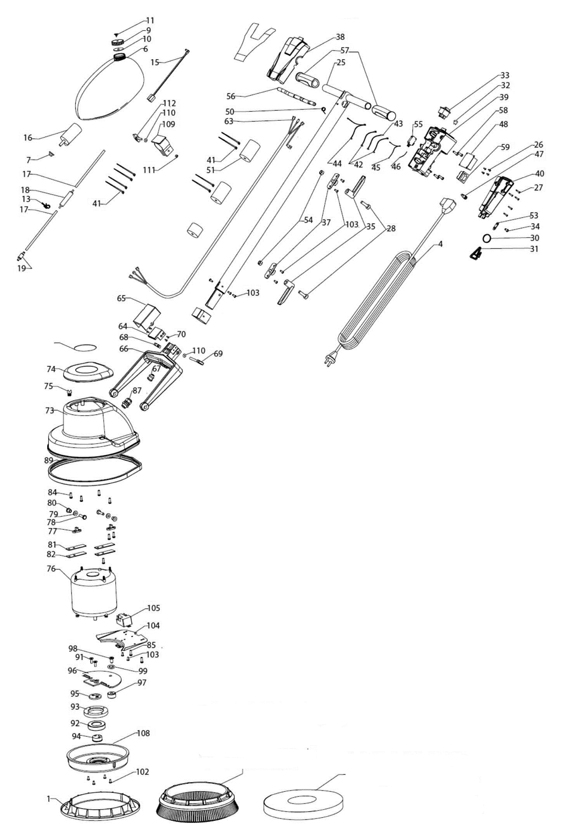

Entire Assembly - 194-0019 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
194-0441 |
Pear cotton plate head |
1 |
|
| 4 |
194-0442 |
Detachable cordset |
1 |
|
| 6 |
194-0444 |
Water tank (white) |
1 |
|
| 8 |
194-0446 |
Breathing valve cap (yellow) |
1 |
|
| 9 |
194-0447 |
Cap (yellow) |
1 |
|
| 10 |
194-0448 |
Washer (white) |
1 |
|
| 11 |
194-0449 |
Breathing valve |
1 |
|
| 12 |
194-0450 |
Water pump with hose |
1 |
|
| 15 |
194-0453 |
Pump motor cord |
1 |
|
| 16 |
194-0454 |
24V water pump |
1 |
|
| 18 |
194-0456 |
Dripping pot |
1 |
|
| 19 |
194-0457 |
Spray nozzle |
1 |
|
| 20 |
194-0458 |
Spray nozzle housing |
1 |
|
| 21 |
194-0459 |
One way valve cap (black) |
1 |
|
| 22 |
194-0460 |
Rubber pad holder |
1 |
|
| 25 |
194-0463 |
Handle assembly |
1 |
|
| 26 |
194-0464 |
Screw M3-.5 x 8mm |
1 |
|
| 27 |
194-0465 |
Screw M3-.5 x 12mm |
1 |
|
| 28 |
194-0466 |
Screw M8-1.25 x 27mm |
1 |
|
| 29 |
194-0467 |
Sealed rivet |
1 |
|
| 31 |
194-0469 |
Cable restrain |
1 |
|
| 32 |
194-0470 |
Push switch (black) |
1 |
|
| 33 |
194-0397 |
Switch (light green) |
1 |
|
| 35 |
194-0472 |
Cable hook (black) |
1 |
|
| 36 |
194-0473 |
Handle tube (silver) |
1 |
|
| 37 |
194-0474 |
Cable holder adaptor |
1 |
|
| 38 |
194-0475 |
Front handle cover |
1 |
|
| 39 |
194-0476 |
Middle handle cover |
1 |
|
| 40 |
194-0477 |
Rear handle cover (black) |
1 |
|
| 42 |
194-0479 |
Power inlet to main switch wire |
1 |
|
| 43 |
194-0480 |
Ground wire |
1 |
|
| 44 |
194-0481 |
Main switch to transforma wire |
1 |
|
| 45 |
194-0482 |
Pump switch wire |
1 |
|
| 46 |
194-0483 |
Pump switch to outlet wire |
1 |
|
| 47 |
194-0490 |
DC connector |
1 |
|
| 48 |
194-0491 |
12V power box |
1 |
|
| 49 |
194-0492 |
Fixed housing |
1 |
|
| 50 |
194-0493 |
Switch lever spring |
1 |
|
| 52 |
194-0495 |
Tube bushing |
1 |
|
| 55 |
194-0498 |
Power unit switch |
1 |
|
| 56 |
194-0499 |
Handle control unit |
1 |
|
| 57 |
194-0500 |
Grip control |
1 |
|
| 58 |
194-0385 |
Screw M5 x 16 |
1 |
|
| 59 |
194-0501 |
Receptable inlet |
1 |
|
| 60 |
194-0502 |
Alignment pin |
1 |
|
| 63 |
194-0505 |
Core cable with female connector |
1 |
|
| 64 |
194-0506 |
Outlet connector cover |
1 |
|
| 66 |
194-0508 |
Support bracket |
1 |
|
| 67 |
194-0509 |
Cable insert |
1 |
|
| 69 |
194-0511 |
Screw M6 x 55mm |
1 |
|
| 70 |
194-0512 |
Screw M3 x 10mm |
1 |
|
| 71 |
194-0513 |
Motor housing (green) |
1 |
|
| 73 |
194-0515 |
Motor housing |
1 |
|
| 74 |
194-0516 |
Cover (green) |
1 |
|
| 75 |
194-0517 |
Spray nozzle holder |
1 |
|
| 76 |
194-0518 |
1/2HP 115V motor |
1 |
|
| 77 |
194-0519 |
Bracket holder |
1 |
|
| 78 |
194-0520 |
Shaft support bracket |
1 |
|
| 81 |
194-0523 |
Shim (plastic) |
1 |
|
| 82 |
194-0524 |
Shim (steel) |
1 |
|
| 83 |
999-1182 |
Screw M5-.8 x 16mm pan head slotted stainless steel |
1 |
|
| 84 |
194-0525 |
Screw M5-.8 x 16mm nylon |
1 |
|
| 85 |
194-0526 |
Screw M5-.8 x 12mm |
1 |
|
| 86 |
194-0527 |
Shakeproof washer |
1 |
|
| 87 |
194-0528 |
Cable gland |
1 |
|
| 88 |
N/A |
Not available |
1 |
(Locktite) |
| 90 |
194-0530 |
Driver plate |
1 |
|
| 93 |
194-0533 |
Bearing case |
1 |
|
| 95 |
194-0535 |
Washer bearing |
1 |
|
| 96 |
194-0536 |
Driver plate |
1 |
|
| 97 |
194-0537 |
Driver block |
1 |
|
| 100 |
N/A |
Not available |
1 |
(Locktite) |
| 101 |
194-0540 |
Relay holder plate |
1 |
|
| 103 |
194-0467 |
Sealed rivet |
1 |
|
| 104 |
194-0543 |
Relay holder plate |
1 |
|
| 105 |
194-0544 |
115V relay |
1 |
|
| 106 |
194-0545 |
Drive disk assembly |
1 |
|
| 108 |
194-0547 |
Drive disk |
4 |
|
| 112 |
194-0487 |
Thumb screw |
4 |
|
| 114 |
194-0489 |
Nut (black) |
4 |
|
|
|
- Pads - 255-1200 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1240 |
12 inch aqua plus burnishing pad (pkg of 20) |
|
|
| 02 |
255-1235 |
12 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1264 |
12 inch Blue ace pad (pkg of 20) |
|
|
| 04 |
255-1242 |
12 inch Blue Jay burnishing pad (pkg of 20) |
|
|
| 05 |
255-1212 |
12 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1277 |
12 inch Diamondback extreme stripping pad (pkg of 20) |
|
|
| 07 |
255-1238 |
12 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1221 |
12 inch gorilla lite burnishing pad (pkg of 20) |
|
|
| 09 |
255-1250 |
12 inch gorilla spray buff/polish/burnish pad (pkg of 20) |
|
|
| 10 |
255-1265 |
12 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1230 |
12 inch jaguar burnishing pad (pkg of 20) |
|
|
| 12 |
255-1290 |
12 inch premium black stripping pad (pkg of 20) |
|
|
| 13 |
255-1270 |
12 inch premium blue cleaning pad (pkg of 20) |
|
|
| 14 |
255-1292 |
12 inch premium brown stripping pad (pkg of 20) |
|
|
| 15 |
255-1280 |
12 inch premium green scrubbing pad (pkg of 20) |
|
|
| 16 |
255-1260 |
12 inch premium red scrubbing pad (pkg of 20) |
|
|
| 17 |
255-1252 |
12 inch premium tan polishing pad (pkg of 20) |
|
|
| 18 |
255-1220 |
12 inch premium white polishing pad (pkg of 20) |
|
|
| 19 |
255-1295 |
12 inch razorback stripping pad (pkg of 20) |
|
|
| 20 |
255-1247 |
12 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 21 |
255-1255 |
12 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 22 |
255-1211 |
12 inch superspeed rubberized pad (pkg of 20) |
|
|
| 23 |
255-0193 |
12 inch Superscreen sand screen 100grit(pkg of 10) (OBSOLETE |
|
|
| 24 |
255-0194 |
12 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 25 |
255-0195 |
12 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 26 |
255-0191 |
12 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 27 |
255-0192 |
12 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 28 |
255-0108 |
12 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0109 |
12 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0110 |
12 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0106 |
12 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-0107 |
12 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 34 |
255-1224 |
12 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 35 |
255-9535 |
12 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 36 |
255-9532 |
12 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 37 |
255-9529 |
12 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 38 |
255-9533 |
12 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 39 |
255-9530 |
12 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 40 |
255-9531 |
12 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 41 |
255-9534 |
12 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 42 |
255-9637 |
12 inch Diamond starter pack (1 of each grit) |
|
|
| 43 |
255-1215 |
12 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 44 |
255-1216 |
12 inch 2001 Duala clean and shine pad-high speed (pkg of 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
