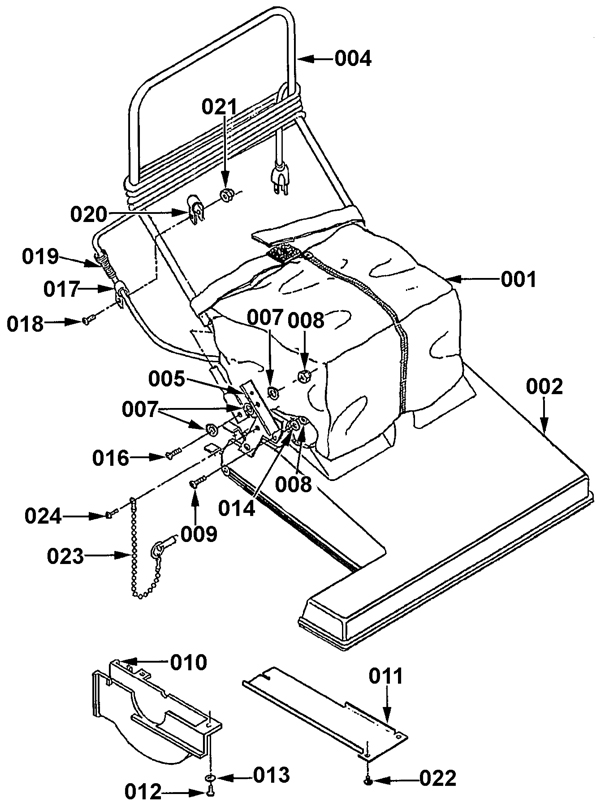

Bag and Handle Assembly - 195-6201 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0002g |
295-3060 |
Housing cover |
1 |
|
| 001 |
195-8456 |
Cloth filter bag |
1 |
|
| 002a |
195-9430 |
20 inch housing non-drive models |
1 |
|
| 002b |
195-9680 |
24 inch housing non-drive models |
1 |
|
| 002c |
195-9431 |
28 inch housing non-drive models |
1 |
|
| 002d |
195-8457 |
20 inch housing drive models |
1 |
|
| 002e |
295-1150 |
24 inch housing drive models |
1 |
|
| 002f |
295-1190 |
28 inch housing drive models |
1 |
|
| 004 |
295-1199 |
Push handle |
1 |
|
| 005a |
195-8458 |
Handle bracket right side |
1 |
|
| 005b |
195-8459 |
Handle bracket left side |
1 |
|
| 007 |
195-9372 |
Washer flat |
6 |
|
| 008 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
6 |
|
| 009 |
195-8460 |
Screw 1/4-20 x 7/8 |
4 |
|
| 011 |
195-9401 |
Intake cover |
1 |
|
| 014 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 016 |
195-6061 |
Screw 1/4-20 x 3/4 |
2 |
|
| 017 |
195-9388 |
Handle clamp |
1 |
|
| 018 |
195-6337 |
Screw 1/4-20 x 1/2 |
1 |
|
| 019 |
195-9392 |
Strain relief |
1 |
|
| 022 |
195-6095 |
Screw 8-32 x 1/4 |
3 |
|
| 023 |
295-1225 |
Chain assembly |
1 |
|
| 024 |
195-6304 |
Screw 10-24 x 1/2 type F |
1 |
|
|
|

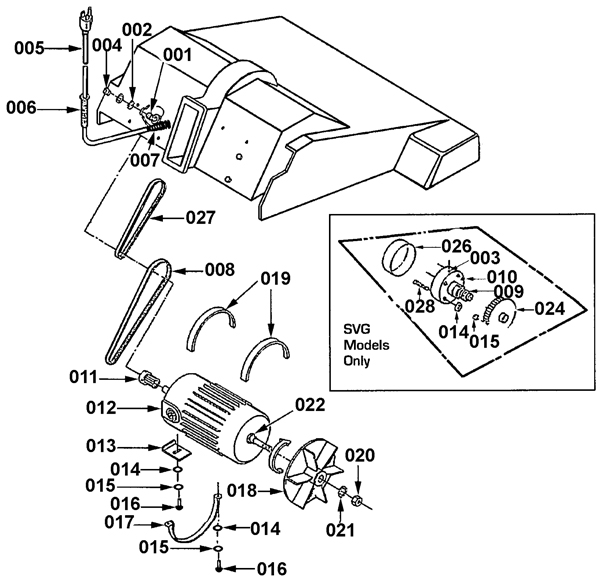

Brush Drive Assembly - 195-6203 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
195-8273 |
Push button switch kit |
1 |
|
| 003a |
295-1159 |
Ball bearing |
2 |
SVG Models |
| 003b |
195-8467 |
Bearing housing |
1 |
SVG Models |
| 004 |
195-9387 |
Switch button |
1 |
|
| 005 |
195-9429 |
60 feet line cord |
1 |
|
| 006 |
195-9392 |
Strain relief |
1 |
|
| 007 |
195-8384 |
Strain relief black plastic |
1 |
|
| 008 |
295-1157 |
Timing belt |
1 |
SVG Models |
| 009 |
195-9396 |
Motor pulley |
1 |
SVG Models |
| 010 |
999-0448 |
Screw 10-24 x 1/4 cup point socket set alloy plain finish |
2 |
SVG Models |
| 011a |
195-9396 |
Motor pulley |
1 |
SV Models |
| 011b |
295-1158 |
Motor pulley |
1 |
|
| 012a |
195-8464 |
Motor 115V |
1 |
|
| 012b |
195-9439 |
Motor bearing |
1 |
|
| 013 |
195-9421 |
Motor bracket |
2 |
|
| 014 |
999-0016 |
Washer 1/4 flat plain finish |
8 |
|
| 015 |
999-1049 |
Washer 1/4 split lock zinc plated |
4 |
|
| 016 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
4 |
|
| 017 |
195-9412 |
Motor clamp |
1 |
|
| 019 |
195-9422 |
Sponge strip |
2 |
|
| 020 |
999-0190 |
Nut 1/4-20 hex plain finish |
1 |
|
| 021 |
195-8465 |
Washer steel tooth |
1 |
|
| 022 |
195-9369 |
Dust cover ring |
1 |
|
| 024 |
195-8466 |
Timing belt pulley |
1 |
SVG Models |
| 026 |
195-8468 |
Vinyl cap |
1 |
SVG Models |
| 027a |
195-9390 |
V belt |
1 |
SV Models |
| 027b |
195-8469 |
Poly V belt |
1 |
SVG Models |
| 028 |
999-0748 |
Screw 1/4-20 x 1 1/2 flat head phillips zinc plated |
4 |
SVG Models |
| N/S |
195-9437 |
Carbon brush |
1 |
|
| N/S |
195-8472 |
Jack shaft |
1 |
SVG Models |
| N/S |
295-1184 |
Jackshaft assembly |
1 |
SVG Models |
| N/S |
195-8473 |
Jack shaft assembly with pulley |
1 |
SVG Models |
| N/S |
195-8471 |
Keeper ring |
1 |
SVG Models |
| N/S |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
4 |
SVG Models |
|
|

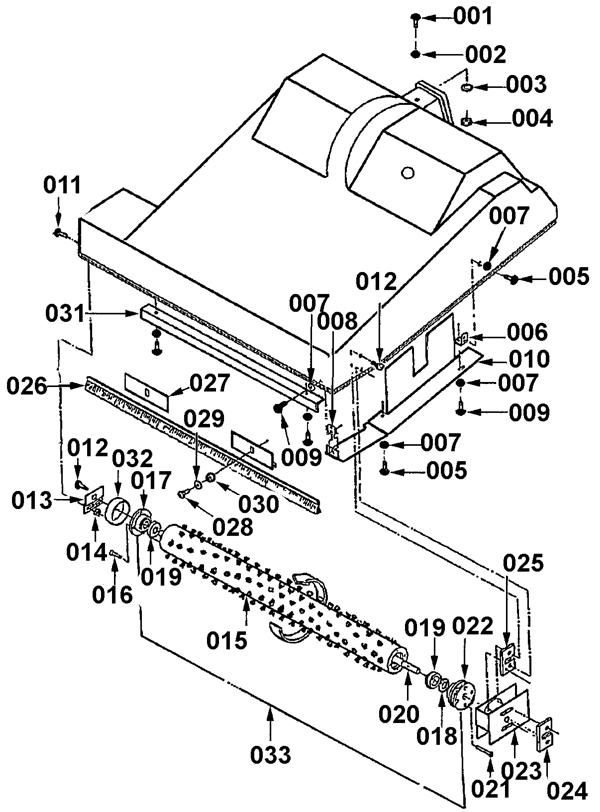

Base Assembly - 195-6204 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0326 |
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
1 |
|
| 002 |
999-0016 |
Washer 1/4 flat plain finish |
1 |
|
| 003 |
999-1049 |
Washer 1/4 split lock zinc plated |
1 |
|
| 004 |
999-0190 |
Nut 1/4-20 hex plain finish |
1 |
|
| 005 |
195-9426 |
Screw lens head |
2 |
|
| 006 |
195-8475 |
Tinnerman nut |
1 |
|
| 008 |
195-8476 |
Tinnerman nut |
1 |
|
| 009 |
195-9426 |
Screw lens head |
2 |
|
| 010a |
195-9410 |
Belt guard |
1 |
(SV Models) |
| 010b |
195-8477 |
Belt guard |
1 |
(SVG Models) |
| 013 |
195-9399 |
Brush bracket |
1 |
|
| 015a |
195-8478 |
20 inch brush |
1 |
(SV200) |
| 015b |
195-8479 |
24 inch brush |
1 |
(SV240) |
| 015c |
195-9442 |
28 inch brush assembly |
1 |
(SV280) (includes 15-22) |
| 015d |
195-8481 |
20 inch brush |
1 |
(SVG201) |
| 015e |
195-8482 |
24 inch brush |
1 |
(SVG241) |
| 015f |
195-9442 |
28 inch brush assembly |
1 |
(SV281) (includes 15-22) |
| 017 |
195-6592 |
Bearing cap |
1 |
|
| 020a |
195-9416 |
20 inch brush shaft |
1 |
|
| 020b |
195-9402 |
24 inch brush shaft |
1 |
|
| 020c |
195-9417 |
28 inch brush shaft |
1 |
|
| 021 |
195-9511 |
Screw 8-18 x 1 1/4 hi/lo |
4 |
|
| 022 |
195-9397 |
Brush pulley |
1 |
|
| 023 |
195-9415 |
Thread guard |
1 |
|
| 026a |
195-8484 |
20 inch brush strip |
1 |
|
| 026b |
295-1197 |
24 inch brush strip |
1 |
|
| 026c |
295-1198 |
28 inch brush strip |
1 |
|
| 027 |
195-8485 |
Brush strip holder |
2 |
|
| 028 |
195-6304 |
Screw 10-24 x 1/2 type F |
2 |
|
| 029 |
195-9242 |
Knob washer |
4 |
|
| 030 |
195-6326 |
Washer nylon |
4 |
|
| 031 |
195-9405 |
Mount bracket |
1 |
|
| 032 |
195-9419 |
Thread guard |
1 |
|
| 033a |
195-9440 |
20 inch brush assembly |
1 |
(SV200) (includes 15-22) |
| 033b |
195-8479 |
24 inch brush |
1 |
(SV240) (includes 15-22) |
| 033c |
195-9442 |
28 inch brush assembly |
1 |
(SV280) (includes 15-22) |
| 033d |
195-9440 |
20 inch brush assembly |
1 |
(SV201) (includes 15-22) |
| 033e |
195-8487 |
24 inch brush assembly (OBSOLETE) |
1 |
(SV241) (includes 15-22) |
| 033f |
195-9442 |
28 inch brush assembly |
1 |
(SV281) (includes 15-22) |
| N/S |
295-1188 |
28 inch baffle strip |
1 |
|
| N/S |
195-8489 |
24 inch baffle strip |
1 |
|
| N/S |
295-1187 |
20 inch baffle strip |
1 |
|
|
|

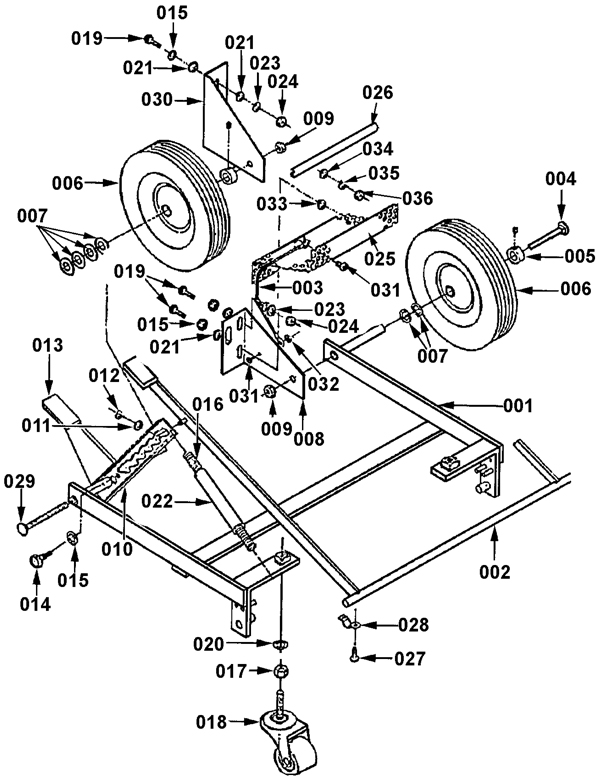

Chassis Assembly - 195-6205 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
195-9409 |
Frame with welded nuts |
1 |
|
| 003 |
195-8490 |
Ground lead with terminals |
1 |
|
| 004 |
195-9424 |
Bolt 3 1/4 in carriage |
1 |
|
| 005 |
195-9434 |
Collar with set screw |
2 |
|
| 006 |
195-7069 |
Wheel 5 x 1.25 black |
2 |
|
| 007 |
999-0187 |
Washer 1/2 flat plain finish |
6 |
|
| 008 |
195-9404 |
Wheel bracket left side |
1 |
|
| 009 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
| 010 |
195-9393 |
Ratchet plate |
1 |
|
| 011 |
195-9372 |
Washer flat |
1 |
|
| 012 |
195-9386 |
Retaining ring |
1 |
|
| 013 |
195-9407 |
Height adjustment pedal kit |
1 |
includes 010, 014 and 015 |
| 014 |
195-8491 |
Screw 1/4-20 x 3/8 |
2 |
|
| 016 |
195-9435 |
Adjustment pedal spring |
1 |
|
| 017 |
999-0170 |
Nut 3/8-16 hex plain finish |
2 |
|
| 018 |
195-9391 |
Caster assembly |
2 |
|
| 019 |
195-6046 |
Screw 1/4-20 x 7/8 |
5 |
|
| 020 |
195-9596 |
Washer 3/8 in interior tooth |
2 |
|
| 021 |
999-0016 |
Washer 1/4 flat plain finish |
5 |
|
| 022 |
195-9425 |
Tube dampener |
1 |
|
| 023 |
999-1049 |
Washer 1/4 split lock zinc plated |
5 |
|
| 024 |
999-0190 |
Nut 1/4-20 hex plain finish |
3 |
|
| 025 |
195-9411 |
Cover assembly |
1 |
|
| 026 |
195-9414 |
3 inch bumper |
1 |
|
| 027 |
295-0572 |
Screw 10 5/8 hi/lo |
2 |
|
| 028 |
195-9400 |
Linkage retainer |
1 |
|
| 029 |
195-9423 |
Bolt 4 1/4 carriage |
1 |
|
| 030 |
195-9403 |
Wheel bracket right side |
1 |
|
| 031 |
195-9330 |
Screw 6/32 x 3/8 |
2 |
|
| 032 |
999-0195 |
Nut 6-32 hex plain |
1 |
|
| 034 |
999-0016 |
Washer 1/4 flat plain finish |
7 |
|
| 035 |
999-1049 |
Washer 1/4 split lock zinc plated |
5 |
|
| 036 |
999-0190 |
Nut 1/4-20 hex plain finish |
2 |
|
|
|

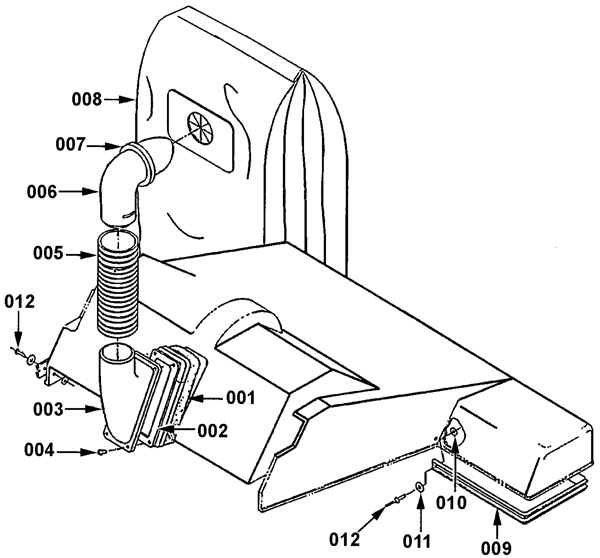

Bag Adaptor and Bumper Assembly - 195-6206 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 003 |
195-9471 |
Hose adapter |
1 |
|
| 004 |
195-8494 |
Screw 10 x 5/8 hi/lo |
4 |
|
| 005 |
295-1227 |
Hose 2 1/2 in x 3 in |
1 |
|
| 006 |
195-9465 |
Paper bag adaptor |
1 |
|
| 008 |
295-1369 |
Paper bag (pkg of 5) |
1 |
|
| 009a |
195-8496 |
Bumper 20 inch |
1 |
|
| 009b |
295-1252 |
Bumper 24 inch |
1 |
|
| 009c |
295-1253 |
Bumper 28 inch |
1 |
|
| 010 |
195-6333 |
Washer flat 3/16 inch |
2 |
|
| 011 |
195-9242 |
Knob washer |
4 |
|
|
|
