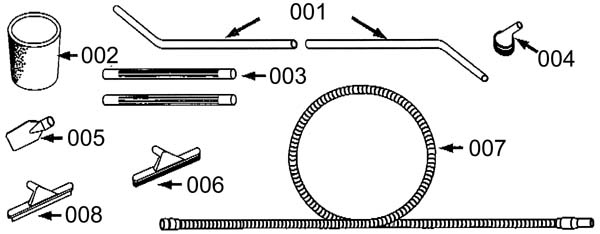

Filter and Squeegee Accessories - 189-0195 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
189-9033 |
Two piece two bend wand |
|
|
| 003 |
189-9269 |
Plastic extension wand (pkg of 2) |
|
|
| 004 |
189-9270 |
Dusting brush |
|
|
| 005 |
189-9271 |
Crevice tool |
|
|
| 006 |
189-9272 |
Hard floor brush tool |
|
|
| 008 |
189-9005 |
Squeegee tool |
|
|
| N/S |
189-4372 |
Squeegee vacuum hose |
|
(for use with front mount squeegee) |
| N/S |
189-8605 |
Front mount squeegee assembly |
|
(front mount assembly) |
| N/S |
189-8606 |
Squeegee blade (pkg of 2) |
1 |
(replacement blades for front mount assembly) |
|
|

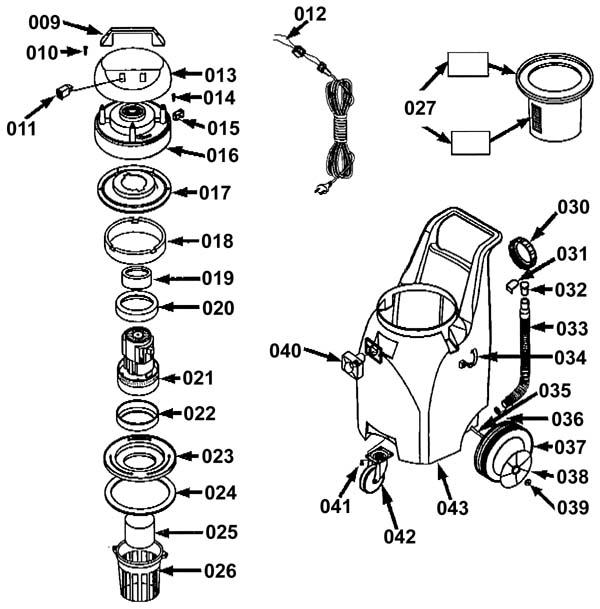

Entire Assembly - 189-0196 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 015 |
189-9261 |
Strain relief |
|
|
| 017 |
189-9262 |
Upper motor plate |
|
|
| 018 |
189-5139 |
Noise reduction foam |
|
|
| 021 |
189-5135 |
120V vacuum motor |
|
|
| 023 |
189-4371 |
Bottom mounting plate |
|
|
| 027b |
189-8767 |
Cloth filter |
|
|
| 030 |
189-8757 |
Drain cap (black) |
|
|
| 031 |
189-8758 |
Drain hose bracket |
|
|
| 032 |
189-8759 |
Drain hose plug |
|
|
| 036 |
189-8762 |
Rubber drain hose gasket |
|
|
| 039 |
189-8765 |
Axle end cap |
|
|
| 040 |
189-8745 |
Suction hose inlet |
|
|
| 041 |
189-5161 |
Caster wheel |
|
|
| 042 |
189-5161 |
Caster wheel |
|
|
|
|

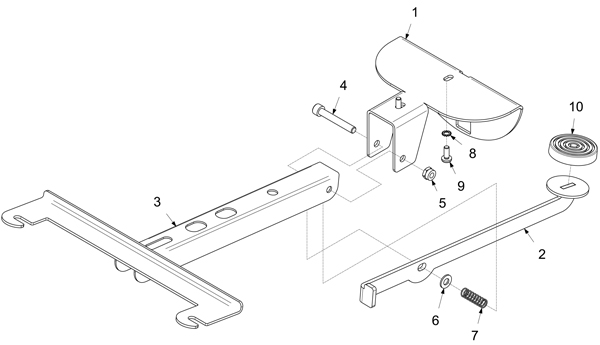

Squeegee Bracket Assembly - 189-8003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
189-8768 |
Front mount squeegee plate |
1 |
|
| 2 |
189-8769 |
Squeegee lift pedal |
1 |
|
| 3 |
189-8770 |
Lifting bracket |
1 |
|
| 5 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
| 9 |
189-8772 |
Screw M6-1 x 16mm |
2 |
|
| 10 |
206-0545 |
Pedal cover (OBSOLETE) |
1 |
|
|
|

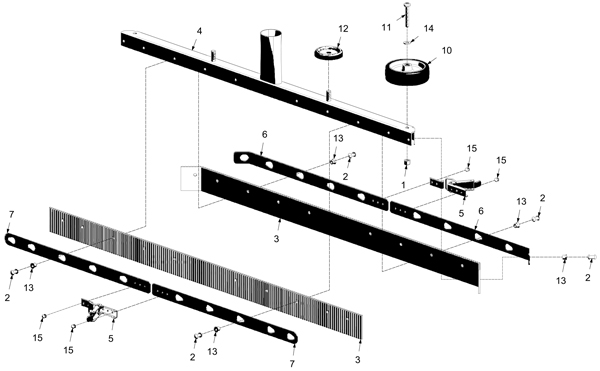

Squeegee Assembly - 189-8004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
N/A |
Not available |
20 |
(Rivet) |
| 3 |
189-8606 |
Squeegee blade (pkg of 2) |
1 |
|
| 4 |
189-8776 |
Squeegee weldment |
1 |
|
| 5 |
189-8775 |
Latch kit without rivets |
2 |
|
| 6 |
189-8773 |
Rear squeegee band |
2 |
|
| 7 |
189-8774 |
Front squeegee band |
2 |
|
| 10 |
189-0005 |
Guide wheel |
2 |
|
| 12 |
189-8777 |
Squeegee knob |
2 |
|
| 13 |
N/A |
Not available |
20 |
(Rivet) |
| 14 |
N/A |
Not available |
2 |
(Washer) |
| 15 |
N/A |
Not available |
8 |
(Rivet) |
| N/S |
189-8737 |
Squeegee assembly |
1 |
(inclues 1-7 and 10-15) |
|
|

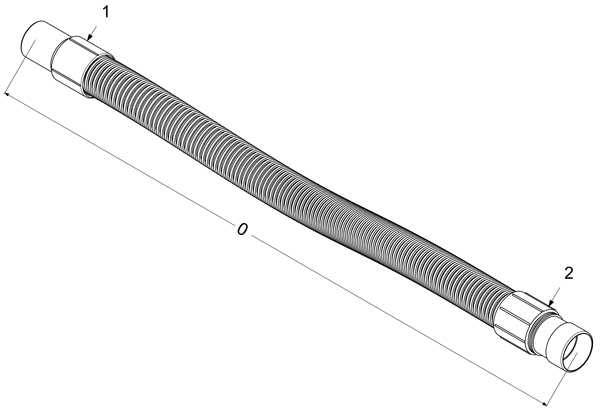

Squeegee Hose Assembly - 189-8005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
189-4372 |
Squeegee vacuum hose |
1 |
(includes 1 and 2) |
|
|
