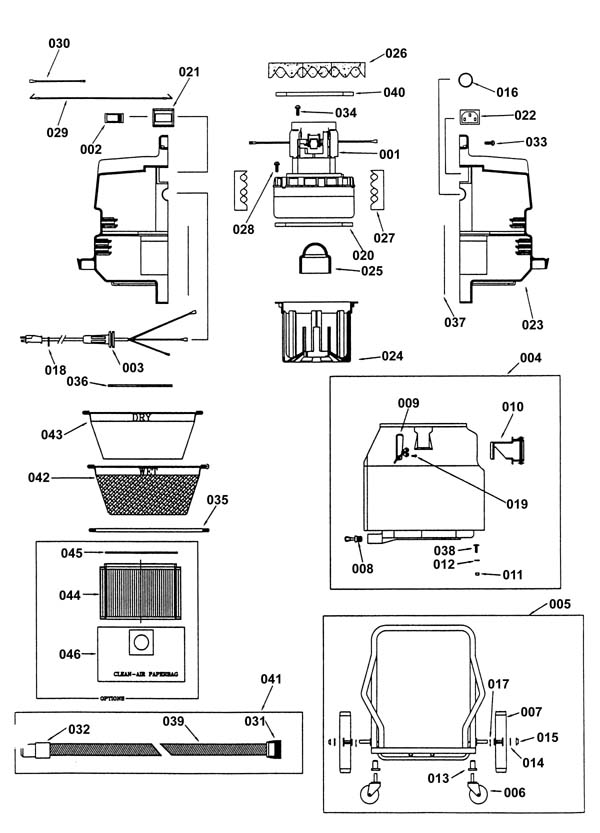

Entire Assembly - 189-2001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
991-1208 |
120V 2 stage vacuum motor peripheral |
1 |
|
| 002 |
189-6004 |
Rocker switch |
1 |
|
| 003 |
189-6005 |
16/3 x 50 ft cord assembly |
1 |
|
| 004 |
189-6006 |
12 gallon tank assembly for dolly |
1 |
|
| 005 |
189-6007 |
Dolly assembly |
1 |
|
| 006 |
189-6008 |
3 in caster |
2 |
|
| 007 |
189-6009 |
10 in wheel |
2 |
|
| 008 |
189-6010 |
Drain hose plug assembly (OBSOLETE) |
1 |
|
| 009 |
189-6011 |
Tank clamp (OBSOLETE) |
2 |
|
| 010 |
189-6012 |
Inlet deflector |
1 |
|
| 011 |
203-0685 |
Label (OBSOLETE) |
3 |
|
| 012 |
999-0060 |
Washer 1/4 split lock plain finish |
3 |
|
| 013 |
189-6013 |
Caster socket |
2 |
|
| 014 |
999-0566 |
Washer 1/2 flat nylon |
2 |
|
| 015 |
189-5002 |
Axle end caps |
2 |
|
| 017 |
189-1321 |
Washer TW8 1/2 tension |
2 |
|
| 019 |
203-2861 |
Screw 10 x 3/8 pan head hi-lo (OBSOLETE) |
4 |
|
| 020 |
189-6017 |
Universal motor gasket |
1 |
|
| 021 |
189-6018 |
Switch plate |
1 |
|
| 022 |
189-6019 |
Power outlet plug |
1 |
|
| 023 |
189-6020 |
Motor housing |
2 |
|
| 024 |
189-6021 |
Large filter cage |
1 |
|
| 025 |
189-6022 |
Float shut off |
1 |
|
| 026 |
189-6023 |
Top foam disk |
1 |
|
| 027 |
189-6024 |
Lower accoustic foam |
8 |
|
| 028 |
203-2862 |
Screw 10-16 x 1 pan head (OBSOLETE) |
2 |
|
| 029 |
189-6025 |
Black wire assembly |
1 |
|
| 030 |
189-6026 |
Ground wire assembly |
1 |
|
| 031 |
189-6027 |
Hose coupling |
1 |
|
| 032 |
189-6028 |
1 1/2 hose cuff |
1 |
|
| 033 |
203-2863 |
Screw 8x3/4 pan head hi-lo (OBSOLETE) |
12 |
|
| 034 |
999-0321 |
Screw 10-32 x 3/8 pan head slotted zinc plated |
2 |
|
| 035 |
189-6029 |
Filter gasket |
1 |
|
| 036 |
189-6030 |
Jogger ring |
1 |
|
| 037 |
189-6031 |
Housing gasket |
1 |
|
| 038 |
189-1185 |
Bolt 1/4-20 x 3/4 carriage head |
3 |
|
| 039 |
189-6032 |
1 1/2 vacuum hose |
1 |
|
| 040 |
189-6033 |
Upper motor gasket |
1 |
|
| 041 |
189-6034 |
Vacuum hose assembly |
1 |
|
| 042 |
189-6035 |
Wet filter |
1 |
|
| 043 |
189-6036 |
Large dry filter |
1 |
|
| 044 |
N/A |
Not available |
1 |
HEPA filter |
| 045 |
189-6038 |
Clamp hepa filter |
1 |
|
| 046 |
189-6039 |
Clean-air filter bag |
1 |
|
|
|
|
