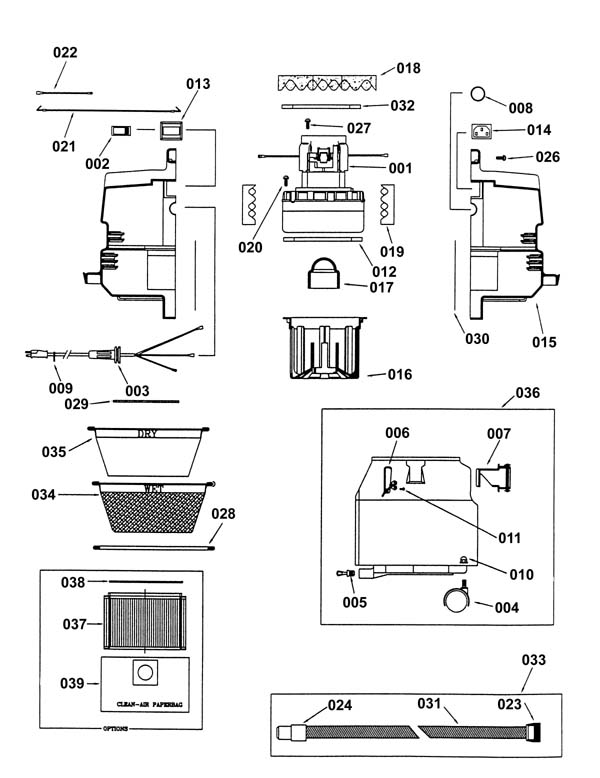

Entire Assembly - 189-2003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
991-1208 |
120V 2 stage vacuum motor peripheral |
1 |
|
| 002 |
189-6004 |
Rocker switch |
1 |
|
| 003 |
189-6005 |
16/3 x 50 ft cord assembly |
1 |
|
| 004 |
189-6040 |
Casters Dual Wheel (OBSOLETE) |
5 |
|
| 005 |
189-6010 |
Drain hose plug assembly (OBSOLETE) |
1 |
|
| 006 |
189-6011 |
Tank clamp (OBSOLETE) |
2 |
|
| 007 |
189-6012 |
Inlet deflector |
1 |
|
| 010 |
999-0234 |
Nut 3/8-16 acorn nickel plated |
5 |
|
| 011 |
203-2861 |
Screw 10 x 3/8 pan head hi-lo (OBSOLETE) |
4 |
|
| 012 |
189-6017 |
Universal motor gasket |
1 |
|
| 013 |
189-6018 |
Switch plate |
1 |
|
| 014 |
189-6019 |
Power outlet plug |
1 |
|
| 015 |
189-6020 |
Motor housing |
2 |
|
| 016 |
189-6021 |
Large filter cage |
1 |
|
| 017 |
189-6022 |
Float shut off |
1 |
|
| 018 |
189-6023 |
Top foam disk |
1 |
|
| 019 |
189-6024 |
Lower accoustic foam |
8 |
|
| 020 |
203-2862 |
Screw 10-16 x 1 pan head (OBSOLETE) |
2 |
|
| 021 |
189-6025 |
Black wire assembly |
1 |
|
| 022 |
189-6026 |
Ground wire assembly |
1 |
|
| 023 |
189-6027 |
Hose coupling |
1 |
|
| 024 |
189-6028 |
1 1/2 hose cuff |
1 |
|
| 026 |
203-2863 |
Screw 8x3/4 pan head hi-lo (OBSOLETE) |
12 |
|
| 027 |
999-0321 |
Screw 10-32 x 3/8 pan head slotted zinc plated |
2 |
|
| 028 |
189-6029 |
Filter gasket |
1 |
|
| 029 |
189-6030 |
Jogger ring |
1 |
|
| 030 |
189-6031 |
Housing gasket |
1 |
|
| 031 |
189-6032 |
1 1/2 vacuum hose |
1 |
|
| 032 |
189-6033 |
Upper motor gasket |
1 |
|
| 033 |
189-6034 |
Vacuum hose assembly |
1 |
(includes 023,024,031) |
| 034 |
189-6035 |
Wet filter |
1 |
|
| 035 |
189-6036 |
Large dry filter |
1 |
|
| 036a |
189-6042 |
18 gallon tank assembly with casters |
1 |
(includes 004,005,006,007,010,011) |
| 036b |
189-6181 |
12 Gallon tank assembly with casters |
1 |
(includes 004,005,006,007,010,011) |
| 037 |
N/A |
Not available |
1 |
HEPA filter |
| 038 |
189-6038 |
Clamp hepa filter |
1 |
|
| 039 |
189-6039 |
Clean-air filter bag |
1 |
|
| N/S |
189-8092 |
Squeegee blade 30 inch front (yellow) |
1 |
|
| N/S |
189-8093 |
Squeegee blade 30 inch rear (green) |
1 |
|
|
|
|
