Parts List Complete for BETCO TRAIL520ET

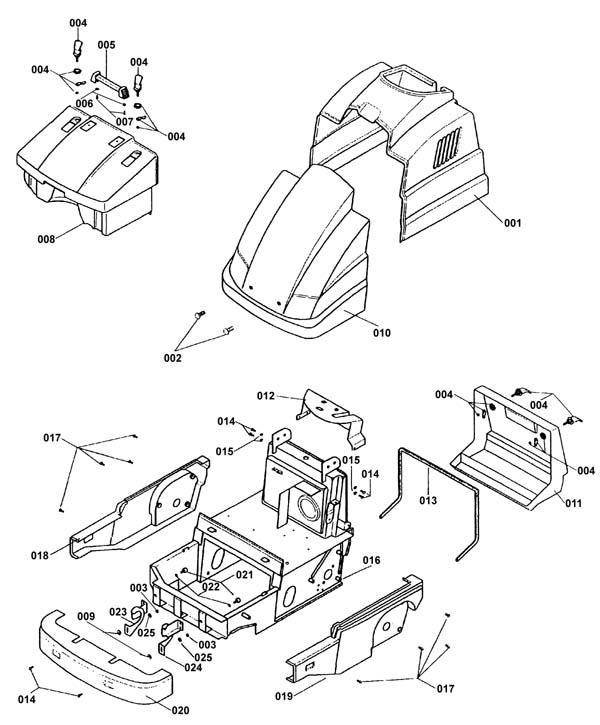

Main Frame and Housing Assembly - 189-3001
RefNbr Part Number Description Req Notes
001 189-1858 Upper cover 1
002 203-4217 Fixing screw 2
003 189-1860 Nut M8 block 2
004 189-1861 Locking 4
005 189-1862 Complete handle 1
006 203-1171 Washer 6 x 24 2
007 189-1864 Screw 6.3x19 2
008 189-1865 Front drawer 1
009 203-3316 Bushing 2
010 189-1867 Front cover 1
011 189-1868 Back drawer 1
012 189-1869 Dashboard 1
013 203-3121 Back drawer gasket 1
014 189-1871 Screw 8x16 6
015 189-1872 Washer 8 x 17 4
016 375-9173 Mach frame 1
017 189-1874 Screw 8x10 8
018 189-1875 Right side casing 1
019 189-1876 Left side casing 1
020 189-1877 Front casing 1
021 189-1878 Foot 20x9 6mmx18 2
022 999-1308 Nut M6-1 hex stainless steel 2
023 189-1879 Right hinge 1
024 189-1880 Left hinge 1
025 189-1881 Bushing 1
N/S 162-0011 12V 105Ah wet battery (SNSR) 1
N/S 162-0042 12V 115Ah AGM battery (Group 31) 1

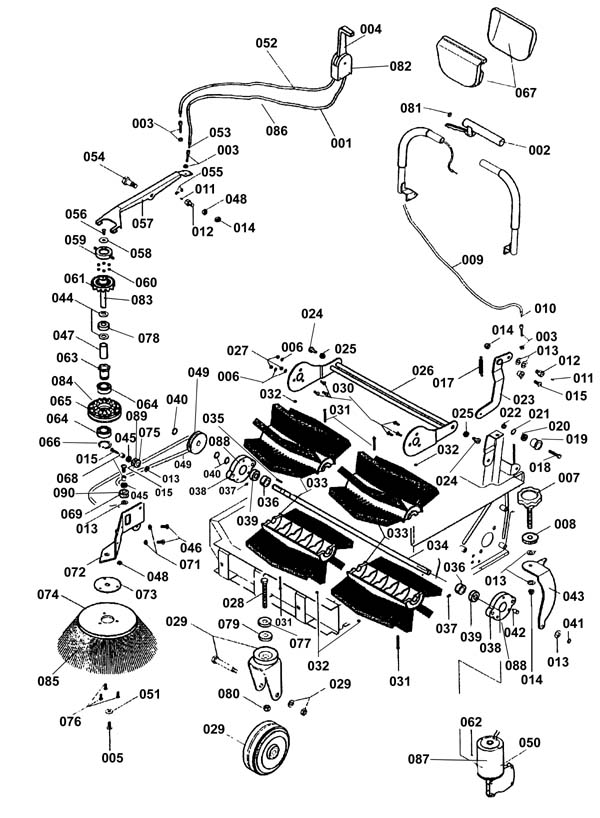

Brush Head Assembly - 189-3002
RefNbr Part Number Description Req Notes
001 203-3366 Side brush sheathing 1
002 189-1883 Traction handle 1
003 189-1884 Turned adjuster 3
004 189-1885 Sidebrush drive lever 1
005 189-1886 Screw 6x16 1
006 189-1887 Washer 6 x 12 3
008 189-1889 Nut M12 knurled ring 1
009 189-1890 Drive cable sheath 1
010 189-1891 Drive cable 1
011 189-1892 Dowel 5x6 2
012 189-1893 Wire fixing screw 2
013 189-1872 Washer 8 x 17 7
014 999-0471 Nut M8-1.25 nylon insert lock zinc plated 3
015 189-1894 Screw 8x25 3
016 189-1895 Belt tightener lever 1
017 189-1896 Traction spring 1
018 189-1897 Fixing screw belt tightener roller 1
019 203-3068 Belt tightener roll 1
020 189-1696 Bearing 1
021 189-1695 Inner snap ring 1
022 203-4188 Spacer 1
023 203-3072 Belt tightener bracket 1
024 203-3073 Pin for rocker 2
025 203-3074 Rocker bushing 2
026 189-1903 Rocker 1
027 189-1672 Nut M6 lock 3
028 189-1904 Screw 12x60 1
029a 189-1905 Rotary support wheel grey 1
029b 189-1906 Rotary support wheel black
030 189-1907 Screw 6x20 6
031 189-1908 Screw 5x70 4
032 189-1843 Nut M5 4
033 189-1909 Center brush 1
034 203-3080 Brush shaft 1
035 189-1911 Key 5x5x15 1
036 189-1912 Brush shaft spacer 2
037 189-1913 Dowel 6x5 2
038 189-1914 Bearing support 2
039 189-2577 Bearing 2
040 189-1916 Outer snap ring 3
041 189-1917 Outer snap ring 1
042 189-1918 Brush adjusting fixing pivot 1
043 189-1919 Main brush adjustment bracket 1
044 203-3084 Side arm felt washer 2
045 189-1921 Bearing 2
046 189-1874 Screw 8x10 2
047 203-3086 Side brush shaft spacer 1
048 189-1860 Nut M8 block 2
049 189-1923 Pulley 1
050a 189-1924 Gear motor 1 Before serial number 7000
050b 189-2500 Gear motor 1 After serial number 7000
051 203-1171 Washer 6 x 24 1
052 189-1925 Side brush sheathing 1
053 203-3090 Side brush lifting cable 1
054 189-1927 Pin 17x34 1
055 189-1928 Clamp 1
056 189-1929 Screw 8x22 1
057 189-1930 Side brush lifting lever 1
058 189-1931 Washer 8 x 32 1
059 189-1932 Ring for the side brush bearing 1
060 203-3096 Ball 11/32 inch 6
061 189-1934 Side brush movement toothed ring 1
062 189-1935 Key 3x3.7 1
063 203-3084 Side arm felt washer 1
064 203-3101 Bearing 2
065 189-1938 Idle toothed ring 1
066 189-0093 Snap Ring 1
067 189-1940 Traction handle casing 1
068 203-3105 Spacer 2
069 189-1942 Pulley 27x15 1
070 275-6067 Belt 1
071 189-1789 Washer 8 x 24 2
072 189-1944 Side brush support 1
073 203-3109 Side brush dragging flange 1
075 189-1947 Pulley 30x15 1
076 203-1164 Screw 6x10 3
077 189-1949 Spacer 1
078 203-3115 Bearing 1
079 189-1951 Spacer 1
080 189-1952 Nut M12 block 1
081 189-1953 Bushing 1
082 189-1954 Complete brush-lifting lever (Includes items 4 and 86)
083 189-1955 Complete movement ring (Includes items 44, 47, 56, 58, 59, 60, 61, and 78)
084 189-1956 Complete idle tooth ring (Includes items 63, 64, 65, and 66)
085 203-3111 Side brush (Includes items 73, 74, and 76)
086 189-1958 Side brush sheathing & cable (Includes items 1, 52, and 53)
087 189-1959 Carbon brush
088 189-1960 Complete bearing support (Includes items 38 and 39)
089 189-1961 Complete pulley 27x15 (Includes items 75 and 45)
090 189-1962 Complete pulley 30x15 (Includes items 69 and 45)

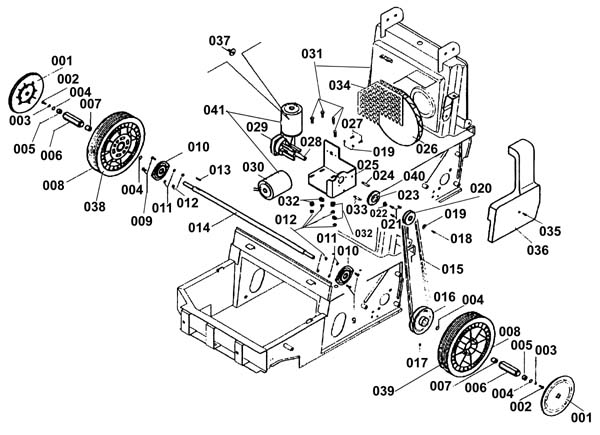

Motor Assembly - 189-3003
RefNbr Part Number Description Req Notes
001 189-1963 Wheel cover 2
002 189-1700 Screw 6 x 10 2
003 203-1171 Washer 6 x 24 2
004 189-1964 Outer snap ring 4
005 189-1965 Bearing 2
006 203-3116 Hexagonal bushing 2
007 203-3115 Bearing 2
008a 189-1967 Wheel 250x55 black/black 2
008b 203-3025 Wheel
009 189-1969 Screw 6x10 4
010 189-1970 Support 2
011 189-1887 Washer 6 x 12 4
012 189-1672 Nut M6 lock 8
013 203-2079 Key 5x5x25 1
014 203-3028 Drive shaft 1
015 189-1973 Drive belt 1
016 203-3030 Pulley 1
017 203-3031 Dowel 6 x 10 1
018 189-1976 Screw 4x12 1
019 189-1977 Washer 5 x 20 3
020 189-1978 Pulley 1
021 189-1979 Screw 6x20 3
022 189-1980 Bearing 1
023 203-3033 Bearing support 1
024 189-1982 Belt support pin 1
025 189-1983 Motor support 1
026 189-1984 Fan 1
027 203-3206 Screw M5 x 16 2
028 189-1935 Key 3x3.7 1
029 189-1924 Gear motor 1
030 203-3118 Motor with smooth shaft
031 189-1886 Screw 6x16 4
032 189-1988 Washer 6 x 18 4
033 189-1989 Pivot 1
034 189-1990 Fan protection grid 1
035 203-1164 Screw 6x10 1
036 189-1991 Air conveyer 1
037 189-1992 Reductors gear 1
038a 189-1993 Complete right wheel black/black
038b 189-1994 Complete right wheel grey/black
039a 189-1995 Complete left wheel black/black
039b 189-1996 Complete left wheel grey/black
040 189-1997 Complete support
041 189-1959 Carbon brush

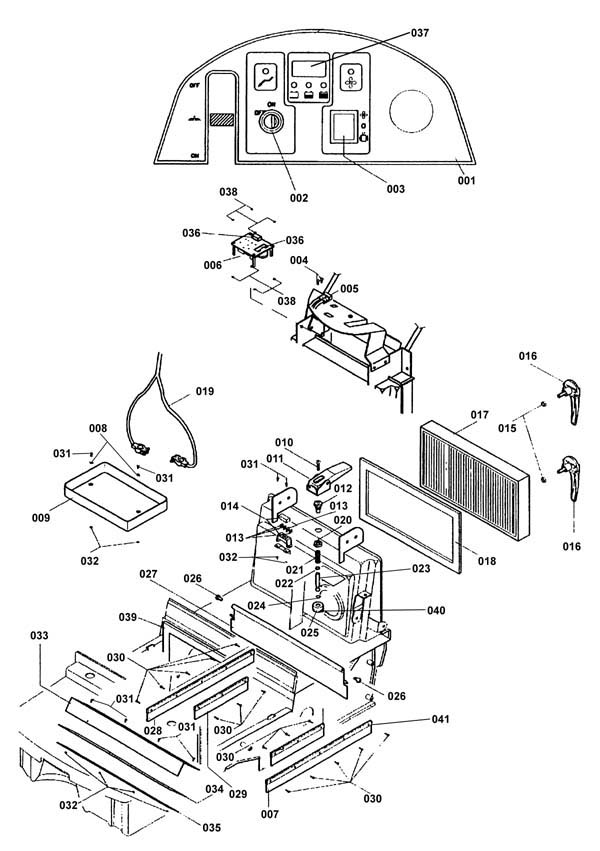

Control Panel and Skirt Assembly - 189-3004
RefNbr Part Number Description Req Notes
001 189-1998 Dashboard plate 1
002 203-3125 Key switch 1
003 189-2000 Bipolar switch 1
004 189-2001 Screw 5x20 2
005 189-2002 Battery charger connector 1
006 189-2003 Circuit board/12Vmotor blocking driving 1
007a 203-3151 Frame flaps kit 1
007b 189-2005 Left side flap black
008 189-2006 Washer 5 x 10 2
009 189-2007 Battery container 1
010 189-2008 Screw 6x25 1
011 189-2009 Complete filtershakers lever 1
012 189-2010 Filtershakers rail 1
013a 203-3133 30amp fuse 3
013b 189-2012 Fuse 20A 1
014 203-3134 Fuse box and cover 1
015 999-0579 Nut M8-1.25 hex coarse thread zinc 2
016 189-2015 Unlocking filter handle 2
017a 203-1258 Standard paper filter 1
017b 203-3136 Hospital grade filter, washable
018 203-3137 Filter gaskets kit 1
019 189-2019 Electrical installation 1
020 189-2020 Nut M18 1
021 189-2021 Filtershaker spring 1
022 189-2022 Gasket 1
023 203-4192 Pin 1
024 189-2024 Inner snap ring 1
025 189-2025 Articulated bar 1
026 189-2026 Screw 10x16 1
027 203-3144 Backside flap 1
028a 203-3151 Frame flaps kit 1
028b 189-2029 Right side flap black
029a 203-3151 Frame flaps kit 2
029b 189-2031 Inner flap black
030 189-2032 Screw 3.5x9.5 16
031 189-2033 Screw 4x16 8
032 189-1661 Nut 8
033 189-2034 Flap fixer 1
034 189-2035 Rubber 1
035 189-2036 Flap 1
036a 189-2037 50A fuse 1
036b 189-2038 1.6A fuse 1
037 189-2039 Hour meter 1
038 189-1661 Nut 8
039 189-2040 Adhesive kit for front drawer 1
040 189-2041 Complete filtershaker jointed rod
041a 189-2042 Grey frame flap kit
041b 203-3151 Frame flaps kit
N/S 162-9015 Gel battery charger 1
N/S 162-1006 Control board fuse For 162-9015 charger
