Parts List Complete for BETCO STEALTH DRS32BT

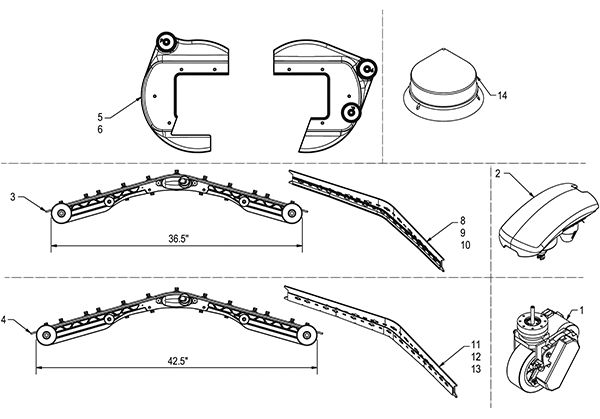

Accessories and Assemblies - 189-0242
RefNbr Part Number Description Req Notes
1 189-8801 Traction motor assembly 1
2 189-8802 Vacuum assembly complete 1
3 189-9961 36 1/2 inch squeegee assembly 1 (drs26bt)
4 289-0028 42 1/2 inch squeegee assembly 1 (drs32bt)
5 189-8803 26 inch brush skirt complete 1 (drs26bt)
6 189-8804 32 inch brush skirt complete 1 (drs32bt)
8 189-7605 36.5 inch squeegee blade kit (OBSOLETE) 1 (drs26bt)
9 189-5189 Squeegee blade kit 36.5 inch polyurethane 1 (drs26bt)
10 189-8805 36 1/2 inch squeegee blade kit (latex) 1 (drs26bt)
11 189-4847 Squeegee blade kit 42.75 inch (OBSOLETE) 1 (drs32bt)
12 189-4848 Squeegee blade kit 42.75 inch poly 1 (drs32bt)
13 189-4849 Squeegee blade kit 42.75 inch latex 1 (drs32bt)
14 189-8806 Strobe light 1

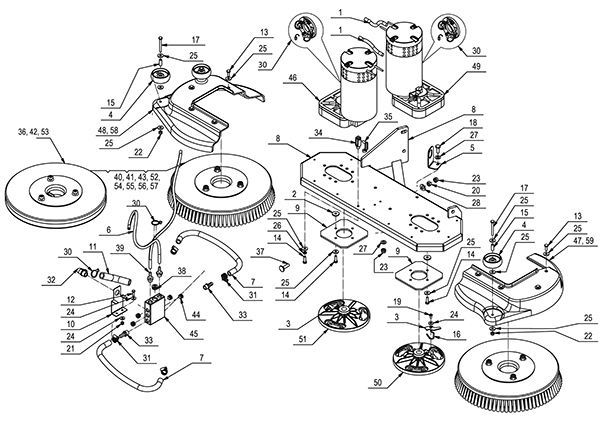

Brush Deck Assembly - 189-0243
RefNbr Part Number Description Req Notes
1 189-8808 Sheath 2
2 189-8809 Spacer 2
3 189-4435 Pad driver retainer clip 2
4 189-8810 Plastic wheel OD 2 1/4 inch x 3/4 inch wide 2
5 189-5456 Bracket 1
6 189-8811 Tubing 1
7 189-8812 Tubing 2
8 189-8813 Brush base 1 (2pcs)
9 189-8814 Motor mount bracket 2
10 189-8815 Manifold mounting bracket 1
11 189-8816 Tubing 1
12 999-1618 Bolt M5-.8 x 16mm hex head stainless steel 1
13 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
14 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 3
15 189-8817 Spacer 2
16 189-4446 Wire spring clip 1
17 999-1116 Bolt M6-1 x 50mm hex head stainless steel 2
18 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 1
19 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated 1
20 999-1424 Nut M8-1.25 hex stainless steel 1
21 189-8730 Nut M5 x 7mm hex nylock zinc 1
22 189-5094 Nut M6 2
23 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
24 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 3
25 999-1261 Washer M6 flat stainless steel 10
26 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 1
27 999-1267 Washer M8 flat zinc 2
28 999-9099 Washer M10 flat stainless steel 1
30 189-2584 Carbon brush 3
31 189-6268 Hose clamp 2
32 189-5178 3/8 inch barbed elbow 1
33 189-5340 Barbed nipple 2
34 189-9251 Fork pin 1
35 189-5456 Bracket 1
36 189-8613 Center-Lok 2
37 189-8818 Bolt M8 x 30 carriage zinc 1
38 189-5343 Cap 1
39 189-8650 Brass fitting 1
40 189-4432 13 inch medium duty brush 2 (drs26bt)
41 189-4431 13 inch heavy duty brush 2 (drs26bt)
42 189-5183 13 inch pad driver 2 (drs26bt)
43 189-4434 13 inch tynex brush 2 (drs26bt)
44 189-5344 Plug 1
45 189-5346 Manifold 1
46 189-6206 24V brush motor 2 (includes 30)
47 189-8819 13 inch brush base cover 2 (drs26bt) (left)
48 189-8820 13 inch brush base cover 2 (drs26bt) (right)
49 189-8821 24V brush motor 2 (includes 30)
50 189-9639 Brush flange 1 (left)
51 189-9640 Brush flange 1 (right)
52 189-4433 13 inch general purpose brush 2 (drs26bt)
53 189-9641 16 inch pad driver 2 (drs32bt)
54 189-9642 16 inch medium duty brush 2 (drs32bt)
55 189-8807 16 inch brush (heavy duty) 2 (drs32bt)
56 189-9644 16 inch general purpose brush 2 (drs32bt)
57 189-9645 16 inch tynex brush 2 (drs32bt)
58 189-8822 16 inch right hand brush base cover 1 (drs32bt)
59 189-8823 16 inch left hand brush base cover 1 (drs32bt)

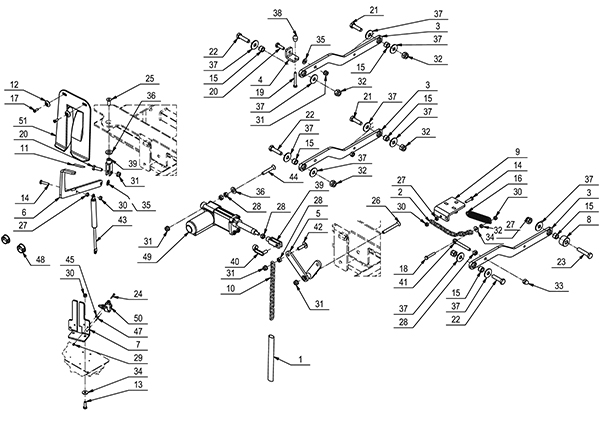

Brush Deck Carriage Assembly - 189-0244
RefNbr Part Number Description Req Notes
1 189-8824 Sheath 1
2 189-8825 Chain 1
3 189-8826 Support arm 3
4 189-8827 Bracket 1
5 189-8828 Lever arm 1
6 189-8829 Foot lever 1
7 189-8830 Bracket 1
8 189-8831 Spacer 1
9 189-8832 Bracket 1
10 189-8833 Brush deck lift chain 1
11 189-8834 Anti-slip tape 1
12 189-9156 Washer M5 x 20mm flat stainless steel 1
13 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 1
14 999-1087 Bolt M6-1 x 25mm hex head stainless steel 2
15 189-8835 Bushing 6
16 283-1543 TRACTION SPRING 20x2,8x109 1
17 189-7625 Screw M5 x 16 oval head phillips zinc 1
18 189-4492 Bolt M6 1
19 999-1116 Bolt M6-1 x 50mm hex head stainless steel 1
20 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 2
21 999-0246 Bolt M10-1.5 x 35mm hex head full thread 2
22 189-4511 Bolt M10 x 40mm hex zinc 3
23 999-9201 Bolt M10 x 50 hex zinc 1
24 999-1431 Screw M3-.5 x 20mm pan head zinc plated 1
25 189-9121 Screw M8 x 22mm 1
26 999-1379 Screw M8-1.25 x 70mm socket head stainless steel 1
27 189-9083 Nut M6 x 5 hex 3
28 999-1424 Nut M8-1.25 hex stainless steel 4
29 999-1161 Nut M3-.5 hex nylock stainless steel 1
30 189-5094 Nut M6 4
31 999-0471 Nut M8-1.25 nylon insert lock zinc plated 5
32 999-1550 Nut M10-1.5 nylon insert lock 5
33 189-8836 Dome nut M8 hex zinc 1
34 999-1261 Washer M6 flat stainless steel 2
35 999-1267 Washer M8 flat zinc 2
36 999-9099 Washer M10 flat stainless steel 2
37 189-4517 Washer 11
38 189-8837 Rubber cap 1
39 189-9190 Fork pin 2
40 189-9186 Clevis pin 1
41 189-5726 Tie rod 1
42 189-8818 Bolt M8 x 30 carriage zinc 1
43 189-5388 Head pressure cylinder 1
44 189-5377 Screw M8 1
45 189-4540 Nut M3 x 2.5mm 1
47 189-8838 Spring pin 1
48 189-8839 Plastic cap 2
49 189-3311 24V actuator assembly 1
50 189-8713 Micro switch 1
51 189-8840 Plastic cover 1
N/S 283-2109 RIVET FAN SHROUD 1

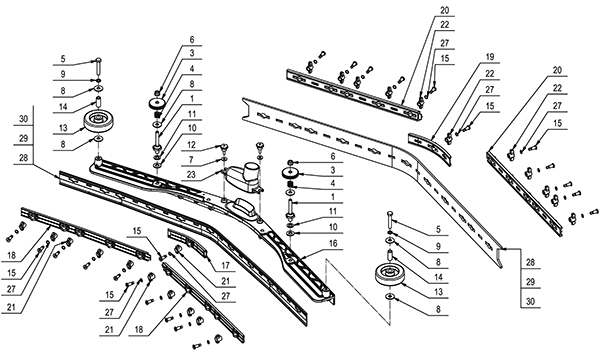

Squeegee Assembly - 189-0245
RefNbr Part Number Description Req Notes
1 189-4662 Mounting stud 2
3 189-8841 Hand knob 2
4 189-9181 Spring 2
5 189-4673 Bolt M8 x 45mm hex 2
6 283-1737 NUT M8 AUTOBL. UNI 7474 INOX LOW 2
7 999-9100 Washer M5 flat stainless steel 1
8 189-4451 Washer M9 5
9 189-4576 Lock washer 2
10 999-9099 Washer M10 flat stainless steel 2
11 189-4475 Washer 2
12 189-8842 Thumb knob 1
13 189-7606 Wheel 2
14 189-8843 Steel bushing 2
15 189-4476 Screw 6
16a 189-7607 36.5 inch squeegee body 1 (drs26bt)
16b 189-8844 42 1/2 inch squeegee body 1 (drs32bt)
17 189-7603 Front center blade clamp 1
18a 189-7601 Front blade clamp 2 (drs26bt)
18b 189-8845 42 1/2 inch outer front squeegee blade clamp 2 (drs32bt)
19 189-7604 Rear center blade clamp 1
20a 189-7602 Rear blade clamp 2 (drs26bt)
20b 189-8846 42 1/2 inch outer rear squeegee blade clamp 2 (drs32bt)
21 189-4480 Wing nut knob 3
22 189-7608 Wing nut 3
23 189-4481 Squeegee shoe adapter 1
27 189-4482 O-ring 6
28a 189-7605 36.5 inch squeegee blade kit (OBSOLETE) 2 (drs26bt)
28b 189-4847 Squeegee blade kit 42.75 inch (OBSOLETE) 2 (drs32bt)
29a 189-5189 Squeegee blade kit 36.5 inch polyurethane 2 (drs26bt)
29b 189-4848 Squeegee blade kit 42.75 inch poly 2 (drs32bt)
30a 189-8805 36 1/2 inch squeegee blade kit (latex) 2 (drs26bt)
30b 189-4849 Squeegee blade kit 42.75 inch latex 2 (drs32bt)

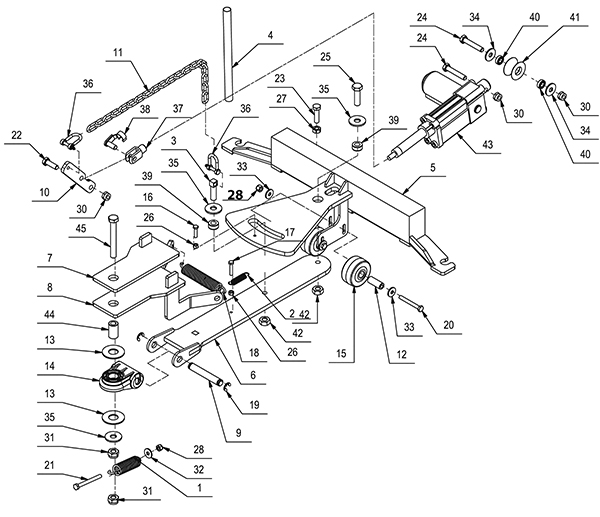

Squeegee Carriage Assembly-Before SN213005860 - 189-0246
RefNbr Part Number Description Req Notes
1 189-6223 Spring 1
2 250-1086 Spring 1
3 189-9398 Eye bolt 1
4 189-8847 Sheath 1
5 189-8848 Squeegee support bracket 1
6 189-8849 Squeegee pivot linkage arm 1
7 189-8850 Pivot bracket 1
8 189-8851 Squeegee centering bracket 1
9 189-8852 Pivot pin 1
10 189-8853 Lever arm 1
11 189-8854 Squeegee lift chain 1
12 189-4491 Bushing 1
13 189-5414 Washer M17 2
14 189-4316 Pivot connector 1
15 189-6230 Wheel 1
16 999-0498 Bolt M5-.8 x 20mm hex head full thread zinc 1
17 189-5369 Bolt M5 x 25mm 1
18 283-1543 TRACTION SPRING 20x2,8x109 1
19 189-6233 Clip 1
20 250-1275 Screw M6 x 50mm 1
21 250-1287 Screw M6 x 60mm 1
22 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 1
23 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 1
24 999-0470 Bolt M8-1.25 x 45mm hex head part thread zinc 2
25 999-0246 Bolt M10-1.5 x 35mm hex head full thread 1
26 999-0740 Nut M5-.8 hex stainless steel 2
27 999-1424 Nut M8-1.25 hex stainless steel 1
28 189-5094 Nut M6 2
30 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
31 999-1550 Nut M10-1.5 nylon insert lock 2
32 999-1261 Washer M6 flat stainless steel 1
33 189-4450 Washer 2
34 189-6198 Flat washer 2
35 189-4517 Washer 3
36 189-4678 Split pin 2
37 189-0080 Fork 1
38 189-9187 Clamping pin 1
39 189-8855 Bushing 2
40 283-1962 BALL BEARING 688 ZZ (8x15 H=5) 2
41 283-2014 ROLLER 1
42 999-1428 Nut M10-1.5 hex zinc finish 2
43 189-3311 24V actuator assembly 1
44 189-8856 Bushing 1
45 999-6709 Screw M10-1.5 x 80mm hex head stainless steel 1

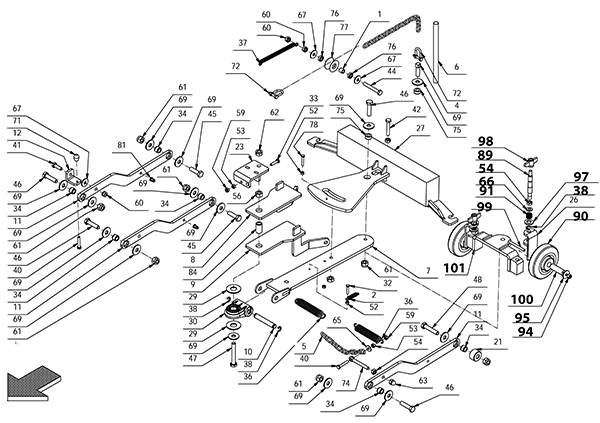

Squeegee Carriage Assembly-After SN213005860 - 189-0247
RefNbr Part Number Description Req Notes
1 283-1089 SPACER 12X8.25X10.8 1
2 250-1086 Spring 1
3 189-4537 Stud bolt 1
4 189-9398 Eye bolt 1
5 189-8825 Chain 1
6 189-8847 Sheath 2
7 189-8849 Squeegee pivot linkage arm 1
8 189-8850 Pivot bracket 1
9 189-8851 Squeegee centering bracket 1
10 189-8852 Pivot pin 1
11 189-8826 Support arm 3
12 189-8827 Bracket 1
15 189-5225 Bushing 1
16 189-5226 Support plate 1
18 189-5227 Cam plate 1
19 189-5228 Shaft 1
21 189-8831 Spacer 1
23 189-8857 Supoport plate 1
26 189-6228 Squeegee wheel support weldment 2
89 189-6229 Threaded pin 2
90 189-8858 Wheel 2
91 189-6231 Compression spring 2
94 189-4495 Nut 2
95 283-1772 WASHER M6 D.24 UNI 6593 ST.STEEL 2
97 206-5291 Washer (OBSOLETE) 2
98 189-2545 Knob 2
99 189-8859 Screw M6 x 60 zinc 2
100 189-8860 Bushing 2
101 189-8861 Carriage 2
27 189-8862 Squeegee carriage 1
28 189-9156 Washer M5 x 20mm flat stainless steel 1
29 189-5414 Washer M17 2
30 189-4316 Pivot connector 1
31 999-0498 Bolt M5-.8 x 20mm hex head full thread zinc 1
32 189-5369 Bolt M5 x 25mm 1
33 999-1087 Bolt M6-1 x 25mm hex head stainless steel 1
34 189-8835 Bushing 6
35 189-4538 Bushing 1
36 283-1543 TRACTION SPRING 20x2,8x109 2
37 189-4508 Spring 1
38 189-6233 Clip 4
39 189-7625 Screw M5 x 16 oval head phillips zinc 2
40 189-4492 Bolt M6 2
41 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 1
42 999-0470 Bolt M8-1.25 x 45mm hex head part thread zinc 1
44 250-1385 Screw M8 x 60mm 1
45 999-0246 Bolt M10-1.5 x 35mm hex head full thread 2
46 189-4511 Bolt M10 x 40mm hex zinc 4
47 189-9402 Screw M10 x 70mm 1
48 189-9403 Bolt M10 x 50mm 1
52 999-0740 Nut M5-.8 hex stainless steel 3
53 189-9083 Nut M6 x 5 hex 2
54 999-1424 Nut M8-1.25 hex stainless steel 5
55 206-5138 Nut (OBSOLETE) 3
56 999-1428 Nut M10-1.5 hex zinc finish 1
57 189-9118 Nut 2
58 189-8730 Nut M5 x 7mm hex nylock zinc 1
59 189-5094 Nut M6 2
60 999-0471 Nut M8-1.25 nylon insert lock zinc plated 5
61 189-8863 Nut M10 x 12 locking 7
62 999-1550 Nut M10-1.5 nylon insert lock 1
63 189-8836 Dome nut M8 hex zinc 1
64 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 2
65 189-4697 Washer M6 x 18mm flat 1
66 999-1267 Washer M8 flat zinc 4
67 189-6198 Flat washer 7
68 189-9124 Washer M8 lock zinc 2
69 189-4517 Washer 14
70 189-4539 Microswitch 3
71 189-8837 Rubber cap 1
72 189-4678 Split pin 3
74 189-5726 Tie rod 1
75 189-8855 Bushing 2
76 283-1962 BALL BEARING 688 ZZ (8x15 H=5) 4
77 283-2014 ROLLER 2
78 999-1616 Bolt M5-.8 x 30mm hex head stainless steel 1
79 189-4540 Nut M3 x 2.5mm 4
80 999-1428 Nut M10-1.5 hex zinc finish 1
81 283-2109 RIVET FAN SHROUD 2
82 189-8864 Screw M8 x 35 2
83 189-4541 Screw M8 x 20mm 4
84 189-8856 Bushing 1
N/S 189-9248 Bolt M8 x 50mm hex head zinc 2
N/S 999-1431 Screw M3-.5 x 20mm pan head zinc plated 2
N/S 999-1520 Screw M3-.5 x 30mm pan head phillips zinc plated 2
N/S 189-9121 Screw M8 x 22mm 1

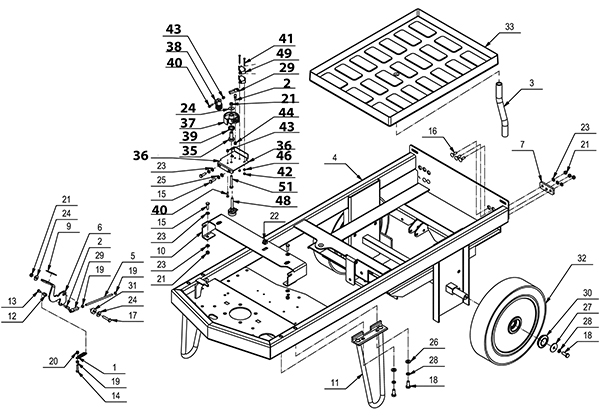

Chassis Assembly - 189-0248
RefNbr Part Number Description Req Notes
1 250-1086 Spring 1
2 189-6347 Pin 2
3 189-4443 PVC tubing 1
4 189-8865 Frame 1
5 189-4611 Connecting rod 1
6 189-8866 Accelerator pedal 1
7 189-8867 Plate spacer 1
9 189-8871 Anti-slip tape 1
10 189-8872 Floor support bracket 1
11 189-8873 Anti-bar roll 2
12 189-8874 Spacer 1
13 189-3310 Screw 1
14 189-5369 Bolt M5 x 25mm 1
15 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 2
16 999-1614 Bolt M6-1 x 20mm carriage head stainless steel 3
17 999-1309 Screw M6-1 x 30mm hex head zinc 1
18 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 5
19 999-0740 Nut M5-.8 hex stainless steel 3
20 189-8730 Nut M5 x 7mm hex nylock zinc 1
21 189-5094 Nut M6 5
22 189-5439 Nut M5 1
23 999-6714 Washer M6 x 12mm flat stainless steel 6
24 999-1261 Washer M6 flat stainless steel 3
25 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 1
26 999-1267 Washer M8 flat zinc 2
27 250-1320 Washer 2
28 189-9084 Washer M8 lock zinc 5
29 189-6348 Ball stud receiver 2
30 189-8693 Wheel cap 2
31 189-8875 Bushing 1
32 189-3252 Wheel 300 OD x 70 W 2
33 189-8876 Battery support base 1
35 189-4704 Bushing 1
36 189-8869 Bracket 2
37 189-6346 Cam 1
38 189-9228 Pinion 1
39 189-9229 Spring 1
40 999-9106 Screw M4-.7 x 16mm hex head stainless steel 2
41 999-1520 Screw M3-.5 x 30mm pan head phillips zinc plated 1
42 999-1161 Nut M3-.5 hex nylock stainless steel 1
43 189-5429 Nut M4 nyloc 2
44 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 2
46 189-8870 Washer M3 x 8 x 1 flat zinc 1
48 189-5200 Potentiometer 1
49 189-6349 Microswitch 2
51 999-0781 Screw M6-1 x 45mm hex head 1
N/S 189-8868 Potentiometer 1 (includes 2, 21, 24, 29, 35-44, 46, 48-49, 51)

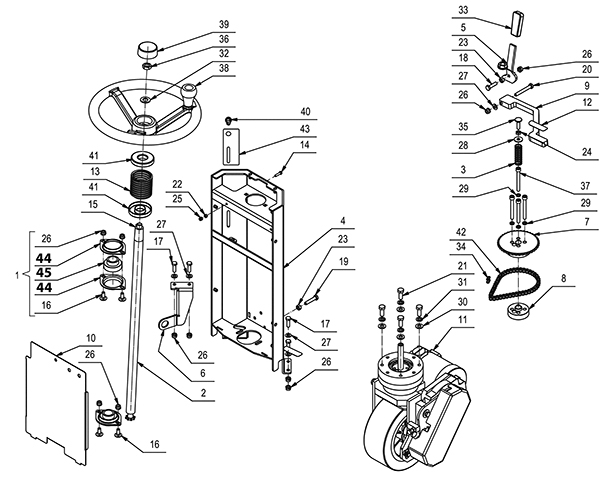

Steering and Drive Assembly - 189-0249
RefNbr Part Number Description Req Notes
1 189-8877 Bearing assembly 1 (includes 16 (2pcs), 26 (2pcs), 44-45)
2 189-8878 Steering shaft 1
3 189-8879 Compression spring 20 x 60 1
4 189-8880 Steering column 1
5 189-8881 Parking brake lever 1
6 189-8882 Bracket 1
7 189-8883 Sprocket 1
8 189-8884 Spacer 1
9 189-8885 Brake pedal 1
10 189-8886 Panel 1
11 189-8801 Traction motor assembly 1
12 189-8887 Anti-slip tape 1
13 189-4534 Bellows 1
14 999-0498 Bolt M5-.8 x 20mm hex head full thread zinc 1
15 283-1565 KEY 5X5X20 UNI 6604/A 1
16 189-4509 Screw 3
17 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 3
18 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 1
19 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 1
20 250-1385 Screw M8 x 60mm 1
21 189-4510 Bolt M10 x 25mm hex zinc 4
22 999-0740 Nut M5-.8 hex stainless steel 1
23 999-1424 Nut M8-1.25 hex stainless steel 2
24 206-5138 Nut (OBSOLETE) 1
25 189-8730 Nut M5 x 7mm hex nylock zinc 1
26 999-0471 Nut M8-1.25 nylon insert lock zinc plated 7
27 999-1267 Washer M8 flat zinc 4
28 189-6198 Flat washer 1
29 189-9084 Washer M8 lock zinc 4
30 999-9099 Washer M10 flat stainless steel 4
31 283-1787 WASHER 10X2.5X2.5 GROWER DIN 7980 GAL 4
32 189-8888 Washer M15 x 28 x 2.5 flat zinc 1
33 189-5430 Weight 1
34 189-4455 Master chain link 1
35 189-8818 Bolt M8 x 30 carriage zinc 1
36 189-8889 Nut M14 hex jam zinc 1
37 999-1379 Screw M8-1.25 x 70mm socket head stainless steel 4
38 189-8890 Steering wheel 1
39 189-8891 Steering wheel cap 1
40 189-8892 Horn push button 1
41 189-4555 Bellows collar 2
42 189-8893 Chain 1
43 189-8894 Solution flow horn decal 1
44 189-4551 Bearing flange 2
45 189-4552 Bearing 1

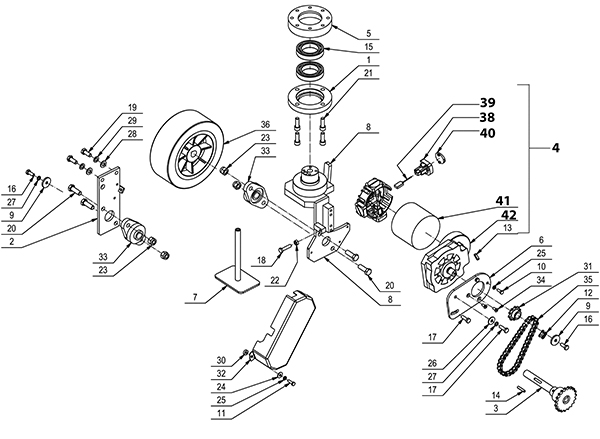

Traction Drive Assembly - 189-0250
RefNbr Part Number Description Req Notes
1 189-8895 Bearing retainer 1
2 189-8896 Bracket 1
3 189-8897 Traction drive sprocket axle 1
4 189-8898 24V traction motor assembly 1 (includes 13, 38-42)
5 189-8904 Bearing hub 1
6 189-8905 Motor mount plate 1
7 189-8906 Brake shoe 1
8 189-8907 Traction motor support bracket 3
9 250-1320 Washer 2
10 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 1
11 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 1
12 189-9100 Master chain link 1
13 189-3240 Square key for shaft 1
14 189-9354 Shaft key 1
15 189-4573 Bearing 2
16 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
17 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 2
18 189-5374 Bolt M8 x 35mm 1
19 189-4510 Bolt M10 x 25mm hex zinc 1
20 999-0504 Bolt M12-1.75 x 35mm hex hd stainless steel full thread 3
21 189-4514 Screw M10 x 30mm zinc 4
22 999-1424 Nut M8-1.25 hex stainless steel 1
23 283-1742 LOCK NUT M12X1.75 UNI 7473 GALV. 3
24 999-1261 Washer M6 flat stainless steel 1
25 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 1
26 189-6198 Flat washer 1
27 189-9084 Washer M8 lock zinc 2
28 999-9099 Washer M10 flat stainless steel 2
29 283-1787 WASHER 10X2.5X2.5 GROWER DIN 7980 GAL 2
30 189-6298 Nylon spacer 1
31 289-0029 Sprocket 1
32 189-8908 Chain guard 1
33 189-8909 Flange bearing 2
34 189-8910 Screw M6 x 14 flat head socket machine 1
35 289-0030 Traction drive chain 1
36 189-3253 Wheel 220 OD x 80 W 1
38 189-8911 Carbon brush holder 1
39 189-8900 Carbon brush 1
40 189-8901 Carbon brush holder cap 1
41 189-8902 24V traction motor 1
42 189-8903 Traction motor gear box 1
N/S 189-8899 Carbon brush holder assembly 1

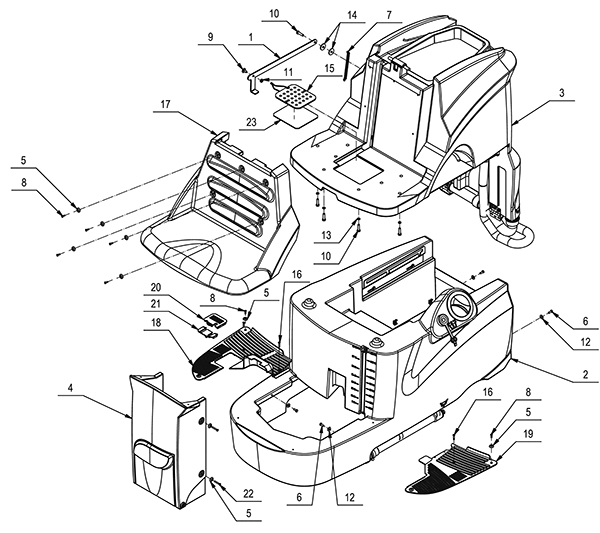

Tank Assembly - 189-0251
RefNbr Part Number Description Req Notes
1 189-8912 Lift brace 1
2 189-8913 Solution tank (gray) 1
3 189-8914 Recovery tank (red) 1
4 189-8915 Steering column cover assembly 1
5 189-9156 Washer M5 x 20mm flat stainless steel 8
6 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
7 189-4508 Spring 1
8 189-7625 Screw M5 x 16 oval head phillips zinc 8
9 999-1586 Bolt M8-1.25 x 16mm carriage zinc 1
10 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 5
11 206-5138 Nut (OBSOLETE) 1
12 999-1261 Washer M6 flat stainless steel 4
13 189-9084 Washer M8 lock zinc 4
14 189-4646 Washer M8.5 2
15 189-3205 Safety switch 1
16 189-8916 Screw M5 x 25 flat head phillips machine 2
17 189-8917 Seat 1
18 189-8918 Right hand foot plate 1
19 189-8919 Left hand foot plate 1
20 189-8920 Rear accelerator pedal bezel 1
21 189-8921 Front accelerator pedal bezel 1
22 999-1589 Screw M5-.8 x 35mm phillips oval head stainless steel 2
23 189-4594 Pad 1

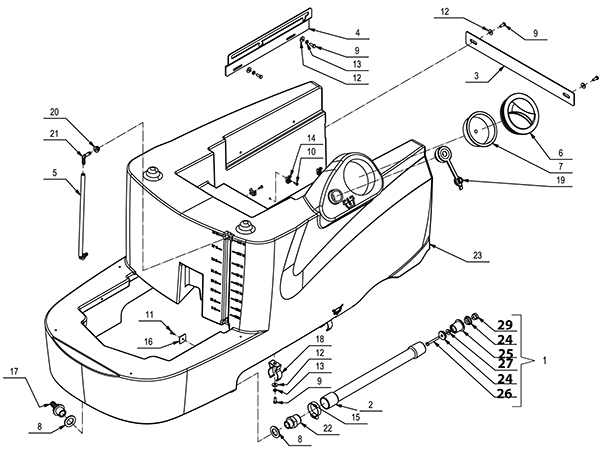

Solution Tank Assembly - 189-0252
RefNbr Part Number Description Req Notes
1 189-8922 Swell plug assembly 1
2 189-3215 Drain hose 2
3 189-8926 Strap 4
4 189-8927 Lift brace bracket 1
5 189-8928 PVC tubing 1
6 189-6266 Cap 4
7 189-6267 Filter 3
8 189-8929 Seal 1
9 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 1
10 189-6237 Screw M4 x 15mm flat 1
11 189-6278 Screw M4.2-.7 x 16mm pan head self tapping zinc plated 1
12 999-1261 Washer M6 flat stainless steel 1
13 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 1
14 189-4605 Cable tie holder 1
15 189-3270 Hose clamp 1
16 206-0567 Support plate (OBSOLETE) 1
17 189-8930 Threaded hose barb fitting 1
18 189-4606 Hose clip 2
19 189-4591 Cap 1
20 189-4607 Grommet 1
21 189-4608 Barbed elbow fitting 1
22 189-8931 Threaded hose barb fitting 1
23 189-8913 Solution tank (gray) 1
24 189-8923 Flanged washer 1
25 189-8924 Swell lug body 1
26 250-1275 Screw M6 x 50mm 1
27 283-1714 NUT M6 UNI 5587 ST.STEEL HIGH 1
29 189-8925 Knob 1
N/S 189-4450 Washer 1

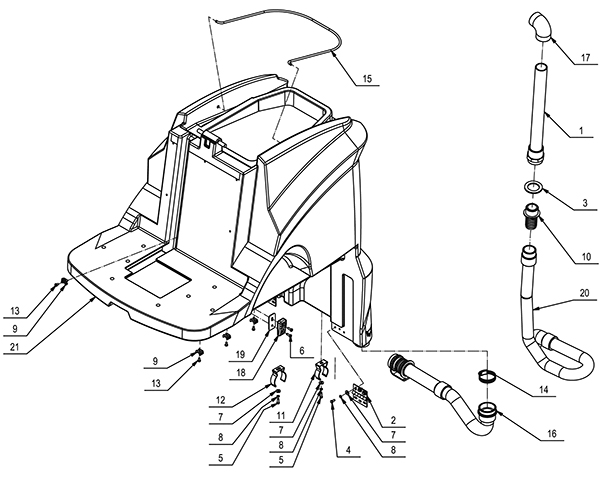

Recovery Tank Assembly - 189-0253
RefNbr Part Number Description Req Notes
1 189-8932 Stand pipe 1
2 250-1447 Hinge 1
3 189-3271 Gasket 1
4 283-1507 SCREW M5X12 UNI 5739 (8.8) GALV. 1
5 999-1618 Bolt M5-.8 x 16mm hex head stainless steel 2
6 189-6330 Screw M5-.8 x 16mm button head socket zinc plated 2
7 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 3
8 189-9122 Lock washer 3
9 189-4605 Cable tie holder 4
10 189-4282 Connector 1
11 189-4606 Hose clip 4
12 189-7552 Drain hose clip 1
13 283-2255 SCREW M5x10 TC T.C.ZNT UNI 7687(4.8)Z 1
14 189-9133 Clamp 1
15 189-8933 Hoop brace 1
16 189-8934 Drain hose assembly 1
17 189-8935 Elbow fitting 1
18 189-8936 Guide 1
19 189-8937 Shim plate 1
20 189-3202 Vacuum hose 1
21 189-8914 Recovery tank (red) 1

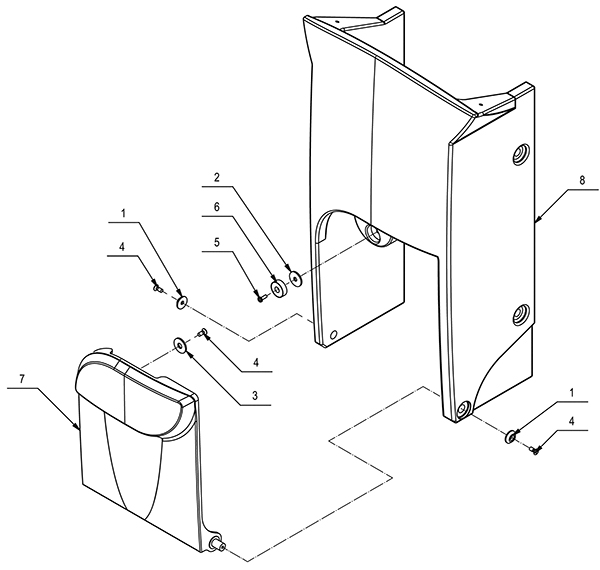

Steering Column Housing Assembly - 189-0254
RefNbr Part Number Description Req Notes
1 189-9156 Washer M5 x 20mm flat stainless steel 2
2 206-5168 Washer (OBSOLETE) 1
3 189-6198 Flat washer 1
4 999-1274 Screw M5-.8 x 12mm flat head phillips stainless steel 3
5 999-1898 Screw M4-.7 x 12mm pan head phillips stainless steel 1
6 189-8688 Magnet 1
7 189-8939 Door 1
8 189-8915 Steering column cover assembly 1

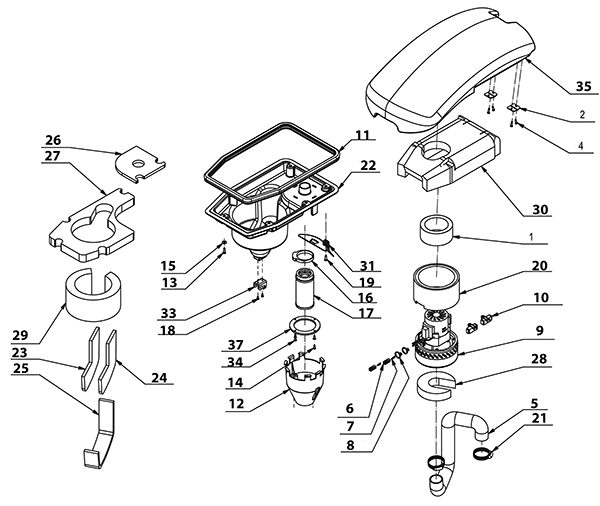

Vacuum Assembly - 189-0255
RefNbr Part Number Description Req Notes
1 189-6329 Sound deadening foam 1
2 189-6303 Plate 2
4 189-8942 Screw M4.2 x 16 pan head phillips self-tapping stainless 4
5 189-6328 Vacuum hose 1
6 189-6323 30amp electrical housing connector 1
7 283-1834 CONNECTOR CONTACT 30A 1
8 189-6325 Wire tie 1
9 189-7547 24V vacuum motor 1
10 189-4703 Carbon brush 1
11 189-6321 Gasket 1
12 189-6327 Vacuum splash guard 1
13 999-1618 Bolt M5-.8 x 16mm hex head stainless steel 1
14 189-3279 Screw 1
15 999-9100 Washer M5 flat stainless steel 1
16 189-9057 Hose clamp 1
17 189-6311 Filter cage 1
18 189-6335 Screw M4 x 10mm 2
19 189-6333 Screw M5 x 16mm button head socket stainless steel 1
20 189-6306 Sound deadening foam 1
21 189-9133 Clamp 1
22 189-6313 Vacuum motor cover 1
23 189-6310 Sound deadening foam 1
24 189-6309 Sound deadening foam 1
25 189-6308 Sound deadening foam 1
26 189-6307 Sound deadening foam 1
27 189-6317 Sound deadening foam 1
28 189-6320 Sound deadening foam 1
29 189-6319 Sound deadening foam 1
30 189-6318 Sound deadening foam 1
31 189-6314 Deflector 1
32 189-6305 Mounting ring 1
33 189-6334 Vacuum lid bale hook 1
34 189-5210 Screw M4.2 x 16mm pan 2
35 189-8940 Recovery tank cover (gray) 1
N/S 189-8941 Vacuum cable kit 1

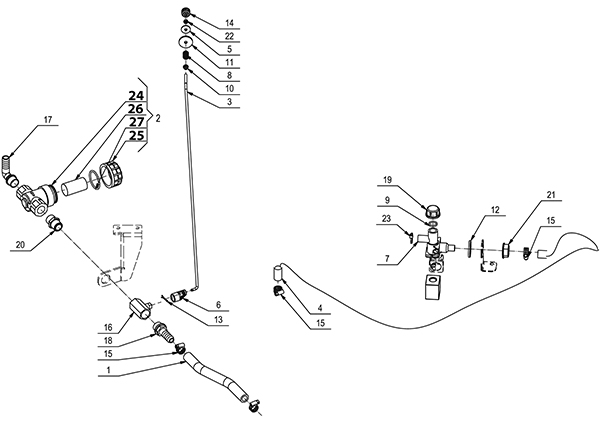

Solution Flow Assembly - 189-0256
RefNbr Part Number Description Req Notes
1 189-4443 PVC tubing 1
2 189-4409 Filter assembly 1 (includes 24-27)
3 189-8943 Connecting rod 1
4 189-8944 Hose 1
5 189-9156 Washer M5 x 20mm flat stainless steel 1
6 N/A Not available 1 (valve lever)
7 189-7576 Solenoid valve 1
8 189-6201 Compression spring 1
9 189-6380 O-ring 1
10 999-0740 Nut M5-.8 hex stainless steel 1
11 189-8726 Washer M6 flat PVC black 1
12 189-4452 Washer 1
13 283-1816 SPLIT PIN D.2X20 UNI 1336 GALV. 1
14 189-4629 Solution flow control knob 1
15 189-6268 Hose clamp 4
16 189-9217 Valve 1
17 189-9123 Barbed elbow 1
18 189-9219 Fitting 1
19 189-6379 Cap 1
20 189-4408 Threaded nipple 1
21 189-4454 Ring nut 1
22 189-8945 Nut M5 x 4 hex zinc 1
23 189-6325 Wire tie 1
24 189-4624 Filter body 1
25 189-4625 Cap 1
26 189-4626 Filter cartridge 1
27 189-4627 O-ring 1

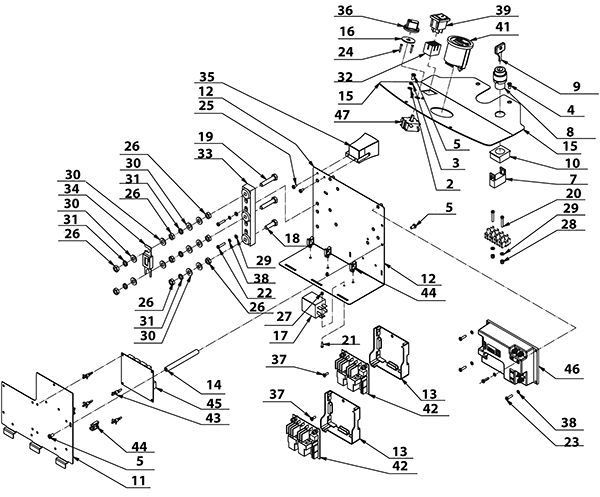

Electrical Components Assembly - 189-0257
RefNbr Part Number Description Req Notes
2 999-9100 Washer M5 flat stainless steel 1
3 189-9122 Lock washer 1
4 999-1274 Screw M5-.8 x 12mm flat head phillips stainless steel 1
5 283-2255 SCREW M5x10 TC T.C.ZNT UNI 7687(4.8)Z 3
7 189-6342 Key switch contact 1
8 189-7549 Key switch 1
9 189-2658 Key 1
10 189-6343 Switch flange 1
11 189-8946 Electrical panel 1
12 189-8947 Electrical panel 1
13 189-8948 Circuit board support 2
14 189-8949 Standoff 1
15 189-8950 Instrument panel 1
16 189-8952 Foam gasket 1
17 189-5354 Washer 1
18 189-4574 Bolt M6 x 30mm 1
19 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
20 189-8951 Screw M4 x 25 cheese head slotted 2
21 189-4575 Screw 1
22 999-9204 Screw M4 x 20 pan phillips stainless steel 2
23 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel 4
24 189-3280 Screw 2
25 250-1550 Screw 2
26 189-6214 Nut M8 5
27 999-1161 Nut M3-.5 hex nylock stainless steel 1
28 189-5429 Nut M4 nyloc 2
29 189-4708 Washer M4 4
30 189-5468 Washer M8 4
31 189-4576 Lock washer 3
32 189-8953 Electrical socket 1
33 189-8954 Fuse block 1
34 189-2555 Fuse 1
35 250-1569 Horn 1
36 189-9198 Knob 1
37 999-9205 Screw M4-0.7 x 12 flat phillips stainless steel 2
38 189-4710 Washer 1
39 189-5185 Switch 2
41 189-6360 Hour meter 4
42 189-7554 Relay card 1
43 189-8955 Panel standoff 1
44 189-8956 Cable fastener 1
45 189-5646 I-drive control card 1
46 189-8957 Traction card 1
47 189-3314 Selector switch 1
N/S 189-6341 Key switch assembly with keys 1
N/S 189-8958 Electrical harness 1

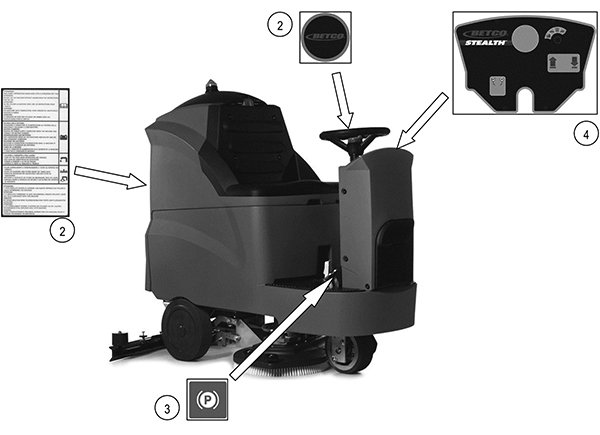

Decal Assembly - 189-0258
RefNbr Part Number Description Req Notes
1 189-8959 Rear decal 1
2 189-8960 Steering wheel decal 1
3 189-8961 Parking brake decal 1
4 189-8962 Instrument panel decal 1

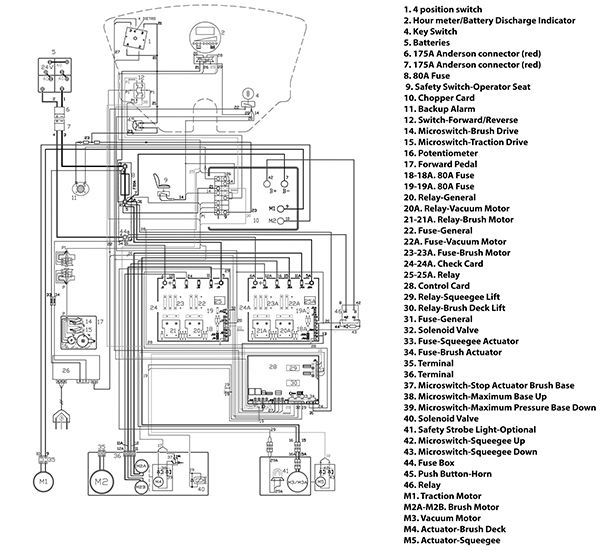

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Commonly Asked For Parts - 189-9941
RefNbr Part Number Description Req Notes
01 189-4847 Squeegee blade kit 42.75 inch (OBSOLETE)
02 189-4848 Squeegee blade kit 42.75 inch poly
03 189-4849 Squeegee blade kit 42.75 inch latex
04 289-0028 42 1/2 inch squeegee assembly
05 289-0029 Sprocket
06 289-0030 Traction drive chain

- Pads - 16 inch - 255-1600
RefNbr Part Number Description Req Notes
01 255-1640 16 inch aqua plus burnishing pad (pkg of 5)
02 255-1635 16 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1664 16 inch Blue ace pad (pkg of 5)
04 255-1642 16 inch Blue Jay burnishing pad (pkg of 5)
05 255-1612 16 inch Cure white pad (pkg of 5)
06 255-1677 16 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1638 16 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1621 16 inch gorilla lite burnishing pad (pkg of 5)
09 255-1650 16 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1665 16 inch Heat concrete bonding pad (pkg of 5)
11 255-1630 16 inch jaguar burnishing pad (pkg of 5)
12 255-1687 16 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1690 16 inch premium black stripping pad (pkg of 5)
14 255-1670 16 inch premium blue cleaning pad (pkg of 5)
15 255-1692 16 inch premium brown stripping pad (pkg of 5)
16 255-1680 16 inch premium green scrubbing pad (pkg of 5)
17 255-1660 16 inch premium red scrubbing pad (pkg of 5)
18 255-1652 16 inch premium tan polishing pad (pkg of 5)
19 255-1620 16 inch premium white polishing pad (pkg of 5)
20 255-1611 16 inch superspeed rubberized pad (pkg of 5)
21 255-1695 16 inch razorback stripping pad (pkg of 5)
22 255-1647 16 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1655 16 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1623 16 inch sand screen driver pad (pkg of 2)
25 255-0132 16 inch Professional sand screen 100 grit (pkg of 10)
26 255-0133 16 inch Professional sand screen 120 grit (pkg of 10)
27 255-0134 16 inch Professional sand screen 150 grit (pkg of 10)
28 255-0135 16 inch Professional sand screen 180 grit (pkg of 10)
29 255-0136 16 inch Professional sand screen 220 grit (pkg of 10)
30 255-0137 16 inch Professional sand screen 400 grit (pkg of 10)
31 255-0130 16 inch Professional sand screen 60 grit (pkg of 10)
32 255-0131 16 inch Professional sand screen 80 grit (pkg of 10)
33 255-0217 16 inch Superscreen sand screen 100 grit (pkg of 10)
34 255-0218 16 inch Superscreen sand screen 120 grit (pkg of 10)
35 255-0219 16 inch Superscreen sand screen 150 grit (pkg of 10)
36 255-0220 16 inch Superscreen sand screen 180 grit (pkg of 10)
37 255-0221 16 inch Superscreen sand screen 220 grit (pkg of 10)
38 255-0222 16 inch Superscreen sand screen 400 grit (pkg of 10)
39 255-0215 16 inch Superscreen sand screen 60 grit (pkg of 10)
40 255-0216 16 inch Superscreen sand screen 80 grit (pkg of 10)
41 255-1624 16 inch Tiger carpet bonnet (pkg of 2)
42 255-9563 16 inch Diamond by Gorilla 11000 Grit (pkg of 2)
43 255-9560 16 inch Diamond by Gorilla 1500 Grit (pkg of 2)
44 255-9557 16 inch Diamond by Gorilla 200 Grit (pkg of 2)
45 255-9561 16 inch Diamond by Gorilla 3000 Grit (pkg of 2)
46 255-9558 16 inch Diamond by Gorilla 400 Grit (pkg of 2)
47 255-9559 16 inch Diamond by Gorilla 800 Grit (pkg of 2)
48 255-9562 16 inch Diamond by Gorilla 8000 Grit (pkg of 2)
49 255-9641 16 inch Diamond starter pack (1 of each grit)
50 255-1682 16 inch Turbostrip segmented rotary pad (pkg of 4)
51 255-1615 16 inch Duala clean and shine pad - low speed (pkg of 5)
52 255-1616 16 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
