Parts List Complete for BETCO STEALTH DRS21BT

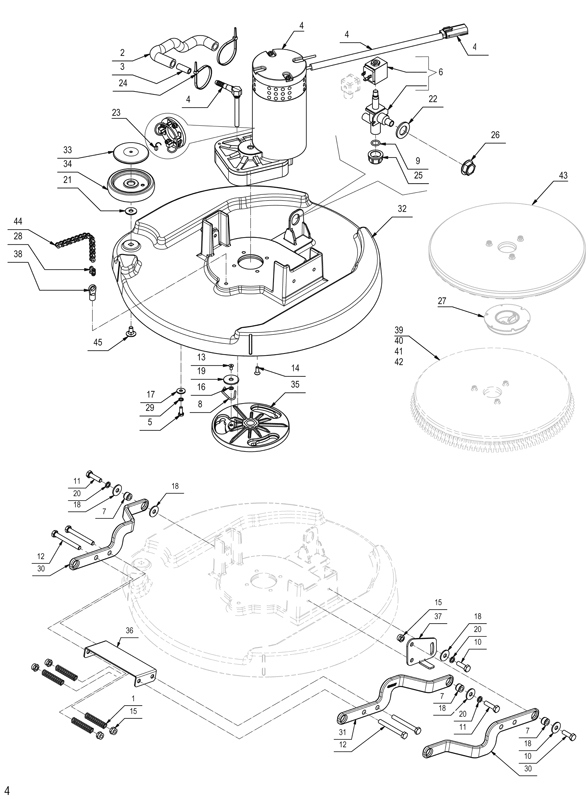

Brush Deck Assembly - 189-2100
RefNbr Part Number Description Req Notes
1 189-4442 Spring 4
2 189-4443 PVC tubing 1
3 189-4444 1 1/4 inch tube 1
4a 189-6206 24V brush motor 1
4b 189-4648 Cable sheath 1
4c 189-6207 Fitting 1
4d 189-4445 Female connector 1
5 189-7621 Bolt M6 x 16mm stainless steel 1
6a 189-7576 Solenoid valve 1
6b 189-7627 Solenoid valve body 1
6c 189-7626 Solenoid 1
7 220-0375 Bushing (OBSOLETE) 3
8 189-4446 Wire spring clip 1
9 189-6380 O-ring 1
10 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 2
11 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 2
12 189-4447 Screw 4
13 189-4448 Screw 1
14 283-1699 SCREW M6X16 UNI5933 DIN7991 (10.9) Z 4
15 999-0471 Nut M8-1.25 nylon insert lock zinc plated 5
16 999-9100 Washer M5 flat stainless steel 1
17 189-4450 Washer 1
18 189-6198 Flat washer 5
19 250-1320 Washer 1
20 189-9084 Washer M8 lock zinc 3
21 189-4451 Washer M9 1
22 189-4452 Washer 1
23 189-2584 Carbon brush 4
24 189-4453 Clamp 2
25 189-6379 Cap 1
26 189-4454 Ring nut 1
27 189-8613 Center-Lok 1
28 189-4455 Master chain link 1
29 999-1117 Washer M6 split lock stainless steel 1
30 189-4457 Right hand arm bracket 2
31 189-4458 Left hand arm bracket 1
32 189-4459 Brush base 1
33 189-4460 Wheel cover 1
34 189-4484 Bumper wheel 1
35 189-4461 Flange 1
36 189-4462 Support bracket 1
37 189-4463 Plate 1
38 189-4464 Coupling 1
43 189-4469 22 inch pad driver 1
44 189-5234 Chain 1
45 189-4470 Screw M8 x 16mm 1

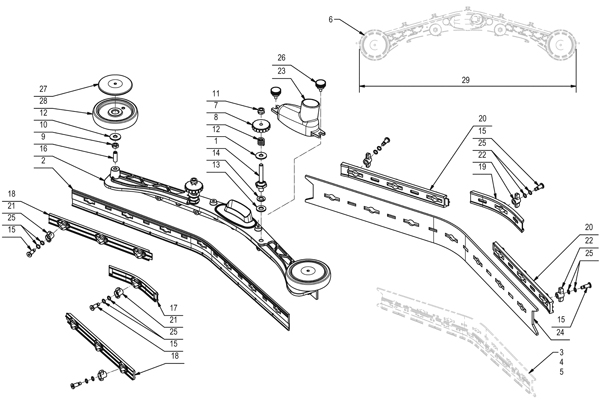

Squeegee Assembly - 28 inch - 189-2101
RefNbr Part Number Description Req Notes
1 189-4662 Mounting stud 2
2 189-4392 29 inch squeegee blade kit 1
4 189-4471 28 inch polyurethane squeegee blade kit 1
5 189-4472 28 inch squeegee blade kit latex 1
6 189-4473 28 inch complete squeegee assembly 1
7 189-6202 Knob 2
8 189-9181 Spring 2
9 189-4474 Pin 2
10 189-6214 Nut M8 2
11 283-1737 NUT M8 AUTOBL. UNI 7474 INOX LOW 2
12 189-4451 Washer M9 4
13 999-9099 Washer M10 flat stainless steel 2
14 189-4475 Washer 2
15 189-4476 Screw 14
16 189-4477 28 inch squeegee body 1
17 189-7603 Front center blade clamp 1
18 189-4478 Front blade retainer 2
19 189-7604 Rear center blade clamp 1
20 189-7665 Rear outer blade clamp 2
21 189-4480 Wing nut knob 7
22 189-7608 Wing nut 7
23 189-4481 Squeegee shoe adapter 1
24 189-4392 29 inch squeegee blade kit 1
25 189-4482 O-ring 28
26 189-4483 Thumb screw 2
27 189-4460 Wheel cover 2
28 189-4484 Bumper wheel 2

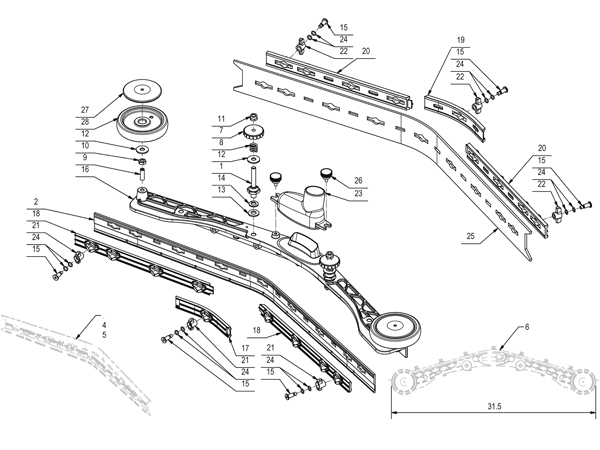

Squeegee Assembly - 31.5 inch - OPTIONAL - 189-2102
RefNbr Part Number Description Req Notes
1 189-4662 Mounting stud 2
2 189-3207 Squeegee blade kit 31 inch (OBSOLETE) 1
4 189-4485 31 1/2 inch polyurethane squeegee blade kit 1
5 189-4486 31 1/2 inch squeegee blade kit latex 1
6 189-4487 31 1/2 inch squeegee assembly 1
7 189-6202 Knob 2
8 189-9181 Spring 2
9 189-4474 Pin 2
10 189-6214 Nut M8 2
11 283-1737 NUT M8 AUTOBL. UNI 7474 INOX LOW 2
12 189-4451 Washer M9 4
13 999-9099 Washer M10 flat stainless steel 2
14 189-4475 Washer 2
15 189-4476 Screw 18
16 189-6392 Squeegee weldment 1
17 189-7603 Front center blade clamp 1
18 189-4488 Front squeegee blade clamp 2
19 189-7604 Rear center blade clamp 1
20 189-4489 Rear squeegee blade clamp 2
21 189-4480 Wing nut knob 9
22 189-7608 Wing nut 9
23 189-4481 Squeegee shoe adapter 1
24 189-4482 O-ring 36
25 189-3207 Squeegee blade kit 31 inch (OBSOLETE) 1
26 189-4483 Thumb screw 2
27 189-4460 Wheel cover 2
28 189-4484 Bumper wheel 2

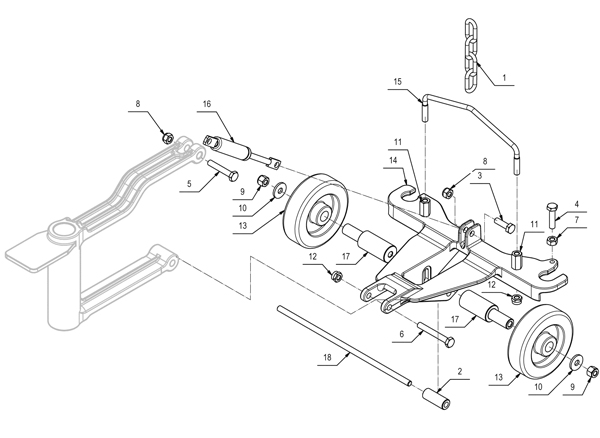

Squeegee Support Assembly - 189-2103
RefNbr Part Number Description Req Notes
1 189-4490 Lift chain 1
2 189-4491 Bushing 1
3 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 1
4 999-0518 Bolt M6-1 x 25mm hex head full thread zinc 1
5 189-4492 Bolt M6 1
6 189-4493 Screw 1
7 250-1276 Nut 1
8 189-5094 Nut M6 2
9 189-4495 Nut 2
10 189-4450 Washer 2
11 189-4496 Nut 2
12 189-1536 Nut with nylon ring 3
13 189-7606 Wheel 2
14 189-5202 Squeegee carriage 1
15 189-4498 Carriage lift arm 1
16 189-4499 Pressure cylinder 1
17 189-4500 Axle bushing 2
18 189-4501 Axle 1

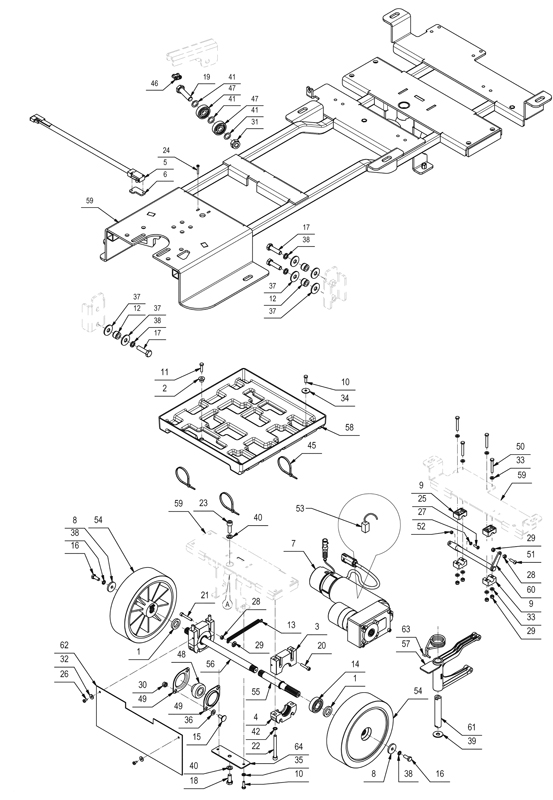

Chassis Assembly - 189-2104
RefNbr Part Number Description Req Notes
1 189-4502 Spacer 2
2 189-4503 Bushing 1
3 189-4504 Bearing mount base 2
4 189-4505 Bearing mount cap 2
5 189-6224 Microswitch 1
6 189-5226 Support plate 1
7 189-4506 24V traction motor 1
8 250-1320 Washer 2
9 189-6241 Pivot block 4
10 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 3
11 999-1087 Bolt M6-1 x 25mm hex head stainless steel 1
12 220-0375 Bushing (OBSOLETE) 3
13 189-4508 Spring 1
14 189-8647 Bearing 2
15 189-4509 Screw 2
16 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
17 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 3
18 189-4510 Bolt M10 x 25mm hex zinc 1
19 189-4511 Bolt M10 x 40mm hex zinc 1
20 189-4512 Screw M6 x 30mm 4
21 999-1593 Screw M6-1 x 40mm socket head stainless steel 1
22 189-4513 Screw M8 x 80mm 4
23 189-4514 Screw M10 x 30mm zinc 1
24 999-1431 Screw M3-.5 x 20mm pan head zinc plated 2
25 189-4515 Washer 1
26 189-4516 Screw M4.8 x 13mm 2
27 999-0740 Nut M5-.8 hex stainless steel 1
28 189-9083 Nut M6 x 5 hex 2
29 189-5094 Nut M6 6
30 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
31 999-1550 Nut M10-1.5 nylon insert lock 1
32 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 2
33 999-6714 Washer M6 x 12mm flat stainless steel 8
34 206-5168 Washer (OBSOLETE) 1
35 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 2
36 999-1267 Washer M8 flat zinc 2
37 189-6198 Flat washer 6
38 189-9084 Washer M8 lock zinc 5
39 189-4517 Washer 1
40 283-1787 WASHER 10X2.5X2.5 GROWER DIN 7980 GAL 2
41 189-4519 Shim 3
42 189-4520 Washer M8 4
43 189-6325 Wire tie 3
44 189-4521 Hose clamp 9
45 189-4453 Clamp 7
46 189-4455 Master chain link 1
47 283-1963 BALL BEARING 6200-2RS1 2
48 189-4522 Bearing 1
49 189-4523 Flange 2
50 189-4524 Screw M6 x 45mm 4
51 999-1591 Screw M6-1 x 20mm button head socket stainless steel 1
52 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 1
53 189-9034 Carbon brush 4
54 189-4525 Wheel 2
55 189-4526 Left hand axle shaft 1
56 189-4527 Right hand axle shaft 1
57 189-5201 Coupling mount 1
58 189-4528 Battery tray 1
59 189-4529 Machine frame 1
60 189-4530 Lever 1
61 189-4531 Bushing 1
62 189-4532 Splash skirt 1
63 189-4533 Spring 1
64 189-5232 Plate 1

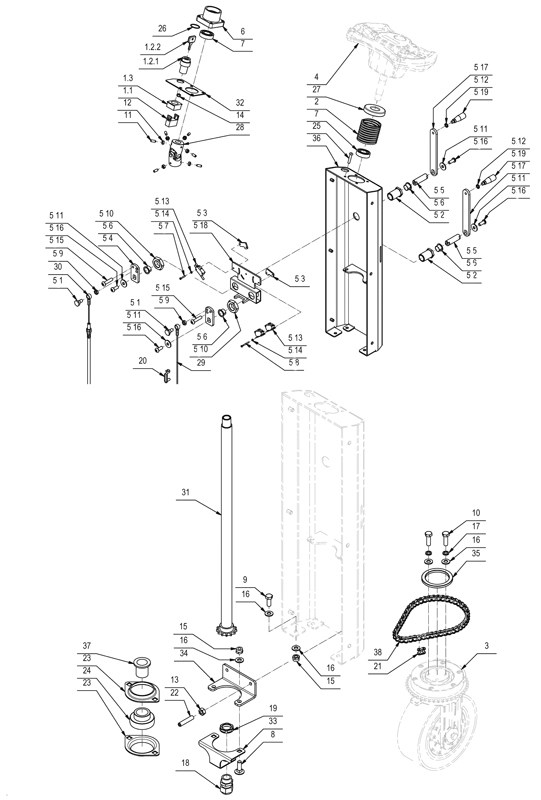

Steering Column Assembly - 189-2105
RefNbr Part Number Description Req Notes
1a 189-6341 Key switch assembly with keys 1
1b 189-6342 Key switch contact 1
1c 189-7549 Key switch 1
1d 189-2658 Key 1
1e 189-6343 Switch flange 1
2 189-4534 Bellows 1
3 189-4535 Front wheel assembly 1
4 189-4536 Steering wheel assembly 1
5 189-4537 Stud bolt 2
6 189-4542 Bearing block 1
7 250-1152 Bearing 2
8 189-6204 Bolt M8 x 25mm carriage head zinc plated 2
9 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
10 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 4
11 189-4546 Pin 6
12 189-9083 Nut M6 x 5 hex 6
13 999-1424 Nut M8-1.25 hex stainless steel 2
14 189-5094 Nut M6 4
15 999-0471 Nut M8-1.25 nylon insert lock zinc plated 6
16 999-1267 Washer M8 flat zinc 14
17 189-9084 Washer M8 lock zinc 4
18 189-4547 Lid 1
19 189-4548 Nut 1
20 189-4549 Clip 1
21 189-4455 Master chain link 1
22 189-4550 Screw M8 x 40mm 2
23 189-4551 Bearing flange 2
24 189-4552 Bearing 1
25 189-4553 Screw M6 x 30mm 4
26 189-4554 O-ring 1
27 189-4555 Bellows collar 1
28 189-4556 Universal joint 1
29 189-4557 Squeegee lift cable 1
30 189-4558 Brush deck lift cable 1
31 189-5219 Steering shaft 1
32 189-4559 Plate 1
33 189-5220 Lower bearing mount 1
34 189-5221 Upper bearing mount 1
35 189-5222 Spacer ring 1
36 189-5223 Steering column cover 1
37 189-5224 Bushing 1
38 189-4560 Steering chain 1
51 189-9118 Nut 2
52 189-5225 Bushing 2
53 189-5226 Support plate 2
54 189-5227 Cam plate 2
55 189-5228 Shaft 2
56 189-4538 Bushing 4
57 999-1431 Screw M3-.5 x 20mm pan head zinc plated 2
58 999-1520 Screw M3-.5 x 30mm pan head phillips zinc plated 2
59 206-5138 Nut (OBSOLETE) 2
511 189-6198 Flat washer 4
512 189-9084 Washer M8 lock zinc 2
513 189-4539 Microswitch 3
514 189-4540 Nut M3 x 2.5mm 4
515 189-5229 Screw M8 x 35mm 2
516 189-4541 Screw M8 x 20mm 4
517 189-5230 Lever arm 2
518 189-5231 Support plate 1
519 189-4543 Lift arm knob 2

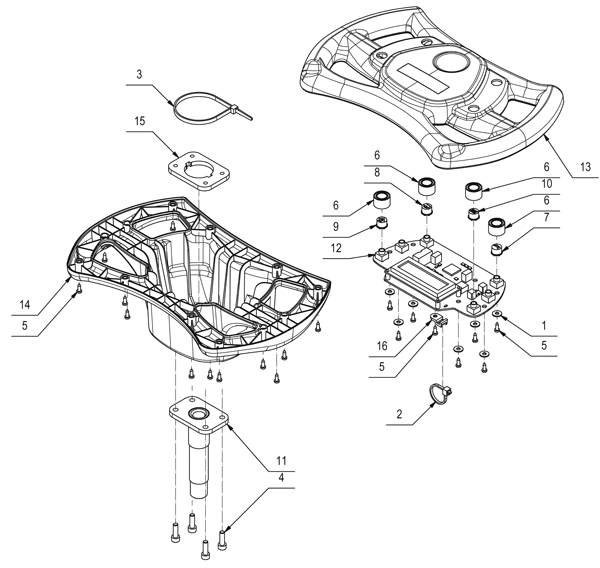

Steering Wheel Assembly - 189-2106
RefNbr Part Number Description Req Notes
1 189-4561 Washer M4 x 10 x 1mm nylon 7
2 189-6325 Wire tie 1
3 189-4453 Clamp 1
4 189-4562 Screw M5 x 16mm 4
5 189-9076 Screw M2.9 x 9.5mm pan head phillips zinc 20
6 189-4563 Gasket 4
7 189-4564 Horn button cover 1
8 189-4565 Brush uncouple button cover 1
9 189-4566 Reverse button cover 1
10 189-4567 ECO mode button cover 1
11 189-5217 Steering wheel shaft 1
12 189-4568 Control card 1
13 189-4569 Upper steering wheel cover 1
14 189-4570 Lower steering wheel cover 1
15 189-5218 Plate 1
16 189-4571 Support 1

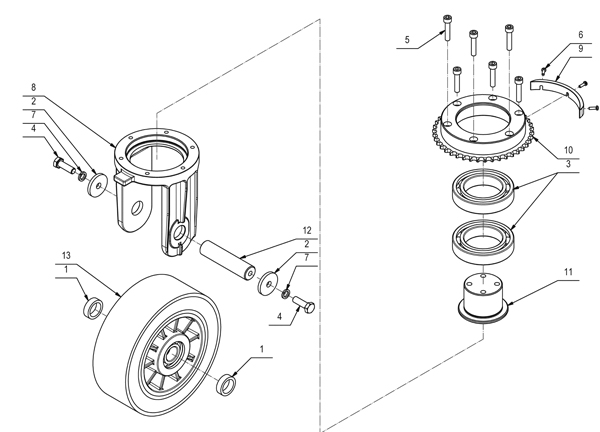

Front Wheel Assembly - 189-2107
RefNbr Part Number Description Req Notes
1 189-4572 Spacer 2
2 250-1320 Washer 2
3 189-4573 Bearing 2
4 189-4574 Bolt M6 x 30mm 2
5 189-4512 Screw M6 x 30mm 6
6 189-4575 Screw 3
7 189-4576 Lock washer 2
8 189-5212 Wheel mount 1
9 189-5213 Cam plate 1
10 189-5214 Steering gear 1
11 189-5215 Bearing support 1
12 189-5216 Axle shaft 1
13 189-4577 Front wheel 1

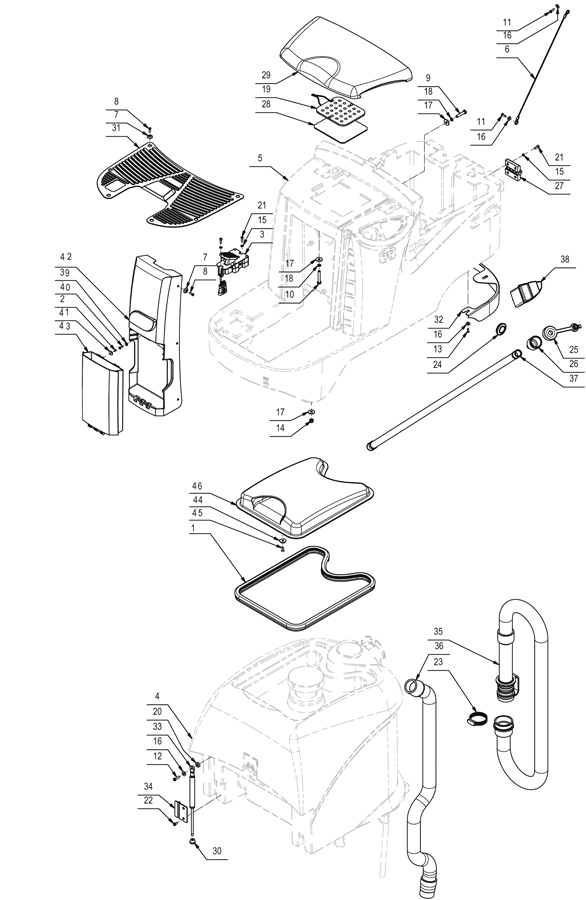

Exterior Components Assembly - 189-2108
RefNbr Part Number Description Req Notes
1 189-4578 54 inch recovery lid gasket 1
3 189-3206 Drive pedal assembly 1
4 189-4584 Recovery tank assembly 1
5 189-4585 Solution tank assembly 1
6 189-4586 Recovery tank support cable 1
7 189-9156 Washer M5 x 20mm flat stainless steel 12
8 189-7625 Screw M5 x 16 oval head phillips zinc 12
9 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
11 189-4515 Washer 2
12 189-4588 Bolt M5 x 20mm 1
13 999-1623 Screw M4.2 x 13mm pan head self tapping stainless steel 4
14 999-0471 Nut M8-1.25 nylon insert lock zinc plated 6
15 999-9100 Washer M5 flat stainless steel 10
16 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 7
17 189-6198 Flat washer 10
18 189-9084 Washer M8 lock zinc 4
19 189-3205 Safety switch 1
20 189-6298 Nylon spacer 1
21 189-4562 Screw M5 x 16mm 10
22 283-2255 SCREW M5x10 TC T.C.ZNT UNI 7687(4.8)Z 2
24 189-8693 Wheel cap 2
25 189-4591 Cap 1
26 189-4592 Fill hose fitting 1
27 189-4593 Hinge 2
28 189-4594 Pad 1
29 189-4595 Seat pad 1
30 189-5211 Piston cap 1
31 189-4596 Foot plate 1
32 189-4597 Rear shroud 1
33 189-4598 Shock absorber 1
34 189-4599 Mounting plate 1
35 189-4414 Recovery discharge hose 1
36 189-4600 Vacuum hose 1
37 189-4601 Solution filling hose 1
38 189-4602 Solution cap measuring cup 1
40 189-4581 Screw 2
41 189-6331 Magnet 2
42 189-4582 Steering column cover 1
43 189-4583 Steering column box 1
44 189-9156 Washer M5 x 20mm flat stainless steel 1
45 189-5210 Screw M4.2 x 16mm pan 1
46 189-4580 Recovery tank lid 1

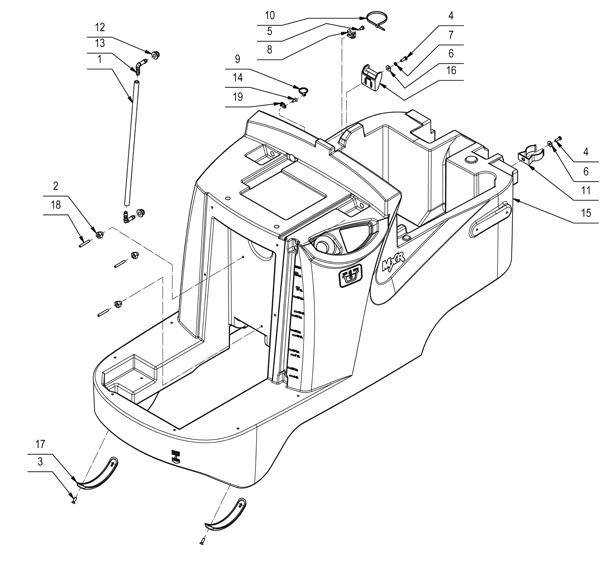

Solution Tank Assembly - 189-2109
RefNbr Part Number Description Req Notes
1 189-4603 Slight tube 1
2 189-4604 Bushing 3
3 189-7625 Screw M5 x 16 oval head phillips zinc 4
4 189-4515 Washer 3
5 189-4516 Screw M4.8 x 13mm 2
6 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 3
7 189-9122 Lock washer 2
8 189-4605 Cable tie holder 2
9 189-6325 Wire tie 1
10 189-4453 Clamp 2
11 189-4606 Hose clip 1
12 189-4607 Grommet 2
13 189-4608 Barbed elbow fitting 2
14 189-5210 Screw M4.2 x 16mm pan 1
15 189-4585 Solution tank assembly 1
16 189-9501 Locking pin 1
17 189-4609 Bumper guard 2
18 N/A Not available 3 ( obsolete with no replacement)
19 189-4571 Support 1

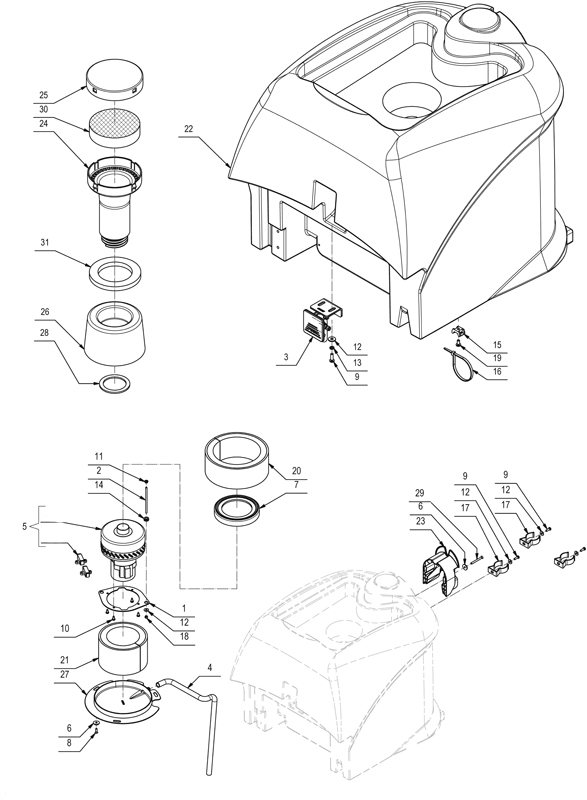

Recovery Tank Assembly - 189-2110
RefNbr Part Number Description Req Notes
1 189-4610 Motor plaque 1
2 189-4611 Connecting rod 2
3 189-4612 Hook assembly 1
4 189-4613 Tubing 1
5a 189-7628 Vacuum motor 1
5b 189-7628 Vacuum motor 1
5c 189-6326 Carbon brush 1
6 189-9156 Washer M5 x 20mm flat stainless steel 5
7 189-5206 Vacuum motor shroud 1
8 189-7625 Screw M5 x 16 oval head phillips zinc 3
9 189-4515 Washer 5
10 189-4516 Screw M4.8 x 13mm 4
11 999-0740 Nut M5-.8 hex stainless steel 2
12 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 7
13 189-9122 Lock washer 2
14 189-4614 grommet 2
15 189-4605 Cable tie holder 2
16 189-4453 Clamp 2
17 189-4606 Hose clip 3
18 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 2
19 283-2255 SCREW M5x10 TC T.C.ZNT UNI 7687(4.8)Z 2
20 189-4615 Sound deadening foam 1
21 189-4616 Sound deadening foam 1
22 189-4584 Recovery tank assembly 1
23 189-4617 Drain hose hook 1
24 N/A Not available 1 (Must purchase parts individually) (189-7661, 189-7662, 189-7663 and 189-7664)
25 N/A Not available 1 (Must purchase parts individually) (189-7661, 189-7662, 189-7663 and 189-7664)
26 189-5209 Shut off float cup 1
27 189-4618 Vacuum motor cover 1
28 189-4619 Gasket 1
29 189-4620 Screw 2
30 189-5192 Filter 1
31 189-4621 Shut off float gasket 1

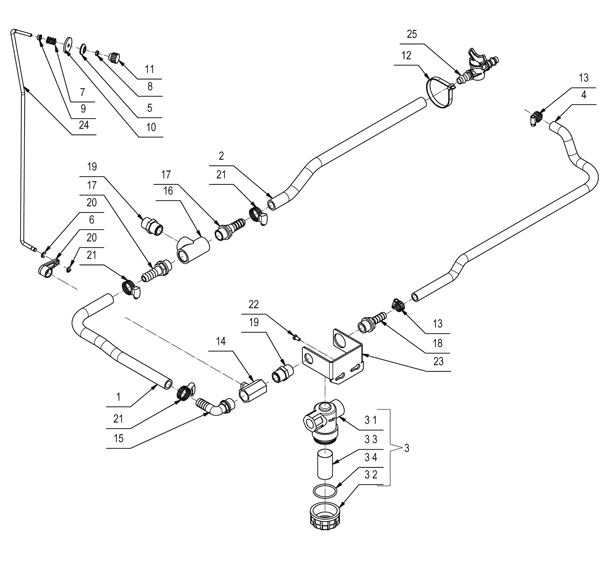

Water Distribution Assembly - 189-2111
RefNbr Part Number Description Req Notes
1 189-4622 Tubing 1
2 189-4623 Tube 1
3 189-4409 Filter assembly 1
4 189-4628 Reinforced tube 1
5 189-9156 Washer M5 x 20mm flat stainless steel 1
6 N/A Not available 1 (Valve lever)
7 189-6201 Compression spring 1
8 999-0740 Nut M5-.8 hex stainless steel 1
9 999-0740 Nut M5-.8 hex stainless steel 1
10 189-8726 Washer M6 flat PVC black 1
11 189-4629 Solution flow control knob 1
12 189-4630 Hose clamp 1
13 189-6268 Hose clamp 2
14 189-9217 Valve 1
15 189-9217 Valve 1
16 189-4631 1/2 inch pipe t-fitting 1
17 189-9219 Fitting 2
18 189-4410 Barbed fitting 1
19 189-4408 Threaded nipple 2
20 189-4632 Washer 2
21 189-5203 Right hand gear 3
22 999-1228 Screw M5-.8 x 10mm hex head stainless steel 2
23 189-5204 Bracket 1
24 189-4633 Solution rod 1
25 189-4634 Valve 1
31 189-4624 Filter body 1
32 189-4625 Cap 1
33 189-4626 Filter cartridge 1
34 189-4627 O-ring 1

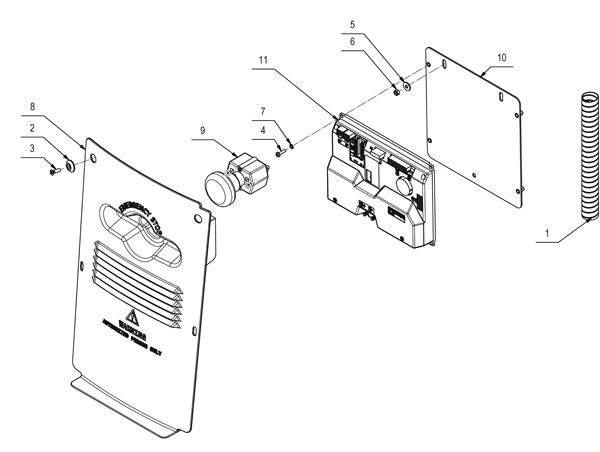

Electrical Components Assembly - 189-2112
RefNbr Part Number Description Req Notes
1 189-4635 Wire protection loom 1
2 189-9156 Washer M5 x 20mm flat stainless steel 4
3 189-7625 Screw M5 x 16 oval head phillips zinc 4
5 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 3
6 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 3
7 189-4637 Washer 4
8 189-4638 Cover 1
9 189-4639 Emergency stop 1
10 189-4640 Mounting plate 1
11 189-4641 Control card 1
12 189-4642 Cable kit 1

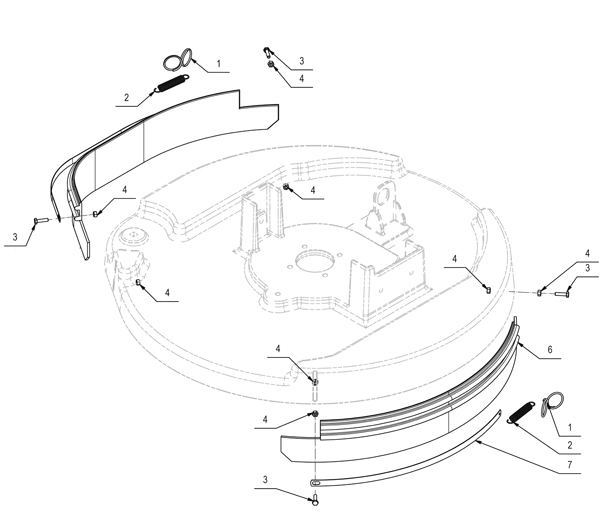

Splash Skirt Assembly - OPTIONAL - 189-2113
RefNbr Part Number Description Req Notes
1 189-7539 Ring 2
2 189-7540 Spring 2
3 999-9106 Screw M4-.7 x 16mm hex head stainless steel 4
4 999-1619 Nut M4 hex stainless steel 8
6 189-4643 Splash guard 1
7 189-4644 Retaining blade 1

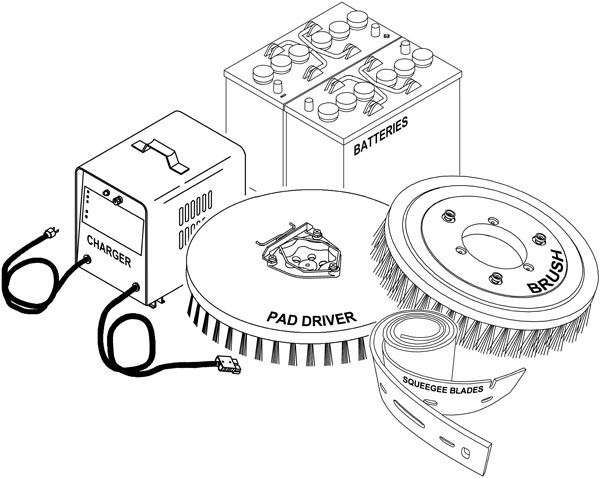

Battery, Brushes, Charger - 189-2114
RefNbr Part Number Description Req Notes
01 162-0057 12V 150Ah wet battery 2
02 162-0042 12V 115Ah AGM battery (Group 31) 2
04 189-4466 22 inch medium duty brush
05 189-4467 22 inch heavy duty brush
06 189-4468 22 inch tynex stripping brush
07 189-4469 22 inch pad driver
08 189-8613 Center-Lok

- Commonly Asked For Parts - 189-9959
RefNbr Part Number Description Req Notes
01 189-7628 Vacuum motor
02 189-4408 Threaded nipple
03 189-4409 Filter assembly
04 189-4410 Barbed fitting
05 189-4414 Recovery discharge hose
06 189-5192 Filter
07 189-5201 Coupling mount
08 189-5202 Squeegee carriage
09 189-4392 29 inch squeegee blade kit
10 189-3206 Drive pedal assembly
11 189-3207 Squeegee blade kit 31 inch (OBSOLETE)

- Pads - 255-2100
RefNbr Part Number Description Req Notes
01 255-2140 21 inch aqua plus burnishing pad (pkg of 5)
02 255-2135 21 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2164 21 inch Blue ace pad (pkg of 5)
04 255-2142 21 inch Blue Jay burnishing pad (pkg of 5)
05 255-2112 21 inch Cure white pad (pkg of 5) (OBSOLETE)
06 255-2177 21 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2138 21 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2121 21 inch gorilla lite burnishing pad (pkg of 5)
09 255-2150 21 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2165 21 inch Heat concrete bonding pad (pkg of 5)
11 255-2130 21 inch jaguar burnishing pad (pkg of 5)
12 255-2167 21 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2190 21 inch premium black stripping pad (pkg of 5)
14 255-2170 21 inch premium blue cleaning pad (pkg of 5)
15 255-2192 21 inch premium brown stripping pad (pkg of 5)
16 255-2180 21 inch premium green scrubbing pad (pkg of 5)
17 255-2160 21 inch premium red scrubbing pad (pkg of 5)
18 255-2152 21 inch premium tan polishing pad (pkg of 5)
19 255-2120 21 inch premium white polishing pad (pkg of 5)
20 255-2111 21 inch superspeed rubberized pad (pkg of 5)
21 255-2195 21 inch razorback stripping pad (pkg of 5)
22 255-2147 21 inch Redwood maroon floor prep pad (pkg of 10)
23 255-2155 21 inch Ruff non-abrasive brush pad (pkg of 2)
25 255-0164 21 inch Professional sand screen 120 grit (pkg of 10)
26 255-0165 21 inch Professional sand screen 180 grit (pkg of 10)
27 255-0162 21 inch Professional sand screen 60 grit (pkg of 10)
28 255-0256 21 inch Superscreen sand screen 100 grit (pkg of 10)
29 255-0257 21 inch Superscreen sand screen 120 grit (pkg of 10)
30 255-0258 21 inch Superscreen sand screen 180 grit (pkg of 10)
31 255-0255 21 inch Superscreen sand screen 60 grit (pkg of 10)
32 255-2124 21 inch Tiger carpet bonnet (pkg of 2)
33 255-9598 21 inch Diamond by Gorilla 11000 Grit (pkg of 2)
34 255-9595 21 inch Diamond by Gorilla 1500 Grit (pkg of 2)
35 255-9592 21 inch Diamond by Gorilla 200 Grit (pkg of 2)
36 255-9596 21 inch Diamond by Gorilla 3000 Grit (pkg of 2)
37 255-9593 21 inch Diamond by Gorilla 400 Grit (pkg of 2)
38 255-9594 21 inch Diamond by Gorilla 800 Grit (pkg of 2)
39 255-9597 21 inch Diamond by Gorilla 8000 Grit (pkg of 2)
40 255-9646 21 inch Diamond starter pack (1 of each grit)
41 255-2115 21 inch Duala clean and shine pad - low speed (pkg of 5)
42 255-2116 21 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
