Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|

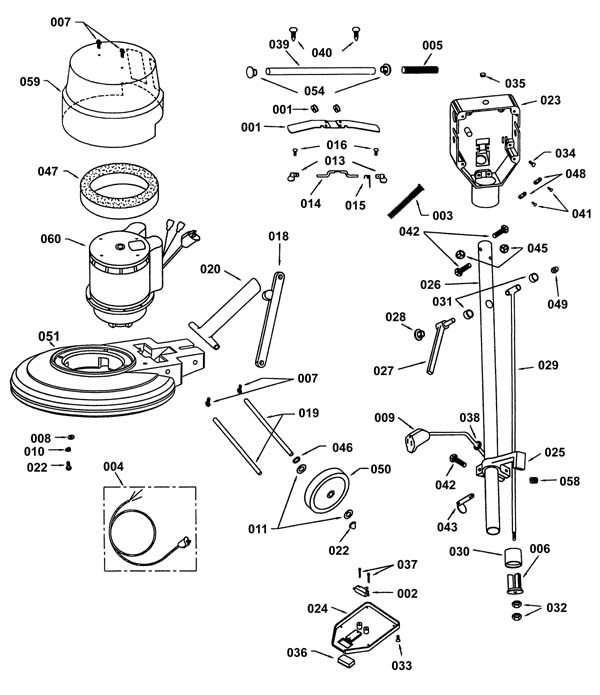

Entire Assembly - 189-3007 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
189-5007 |
Trigger assembly |
1 |
|
| 001b |
189-5014 |
5/8 in grommet |
2 |
|
| 003 |
189-5009 |
Anti-kink spring |
1 |
|
| 004 |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) |
| 005 |
189-5010 |
Handle grip foam (OBSOLETE) |
2 |
|
| 006 |
189-5011 |
Wedge handle (OBSOLETE) |
1 |
|
| 007 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
6 |
|
| 008 |
999-0964 |
Washer 5/16 x 3/4 flat stainless steel |
4 |
|
| 009 |
189-5004 |
42 inch female pigtail (OBSOLETE) |
1 |
|
| 010 |
189-1305 |
Washer 5/16 spring lock |
4 |
|
| 011 |
999-0566 |
Washer 1/2 flat nylon |
6 |
|
| 013 |
189-5015 |
Knob safety switch |
2 |
|
| 014 |
189-5016 |
Lever safety switch |
1 |
|
| 015 |
189-5017 |
Spring safety switch |
1 |
|
| 016 |
189-1307 |
Screw 6-32 x 1/4 tap |
2 |
|
| 018 |
189-5019 |
Painted handle brace |
1 |
|
| 019 |
189-5020 |
Plated axle shaft |
2 |
|
| 020 |
189-5021 |
T-handle support paint |
1 |
|
| 021 |
189-5002 |
Axle end caps |
2 |
|
| 022 |
189-1308 |
Bolt 5/16- 18 x 1 1/2 hex brass |
4 |
|
| 023 |
189-5022 |
Painted switch box |
1 |
|
| 024 |
189-5023 |
Cover paint switch box |
1 |
|
| 025 |
N/A |
Not available |
1 |
(Brace lock) |
| 026 |
189-5025 |
Plated handle tube |
1 |
|
| 027 |
N/A |
Not available |
1 |
(Cam lever assembly) |
| 028 |
189-5027 |
Heyco cam lever plug |
1 |
|
| 029 |
189-5028 |
Extension rod welded |
1 |
|
| 030 |
189-5029 |
Tapered sleeve (OBSOLETE) |
1 |
|
| 031 |
N/A |
Not available |
2 |
(Bushing) |
| 032 |
189-1309 |
Nut 5/16-18 nylon locking |
2 |
|
| 033 |
999-0759 |
Screw 6-32 x 3/8 flat head phillips zinc plated |
4 |
|
| 034 |
189-1311 |
8-32 X 1/4 Phillips Taptite |
1 |
|
| 035 |
189-5031 |
Reset insert |
1 |
|
| 036 |
189-5032 |
Switch insert |
1 |
|
| 037 |
189-1316 |
6-32 X 7/8 Phillips Taptite (OBSOLETE) |
2 |
|
| 038 |
217-0014 |
On/off switch |
1 |
|
| 039 |
189-5033 |
Handle tube |
1 |
|
| 040 |
189-1317 |
Screw 14 x 1 1/2 type a |
2 |
|
| 041 |
189-1318 |
8-32 X 1/2 Taptite Phillips |
4 |
|
| 042 |
999-0200 |
Bolt 1/2-13 x 1 1/4 hex head |
3 |
|
| 043 |
189-5005 |
Hitch pin (OBSOLETE) |
1 |
|
| 044 |
189-5035 |
Switch box cover assembly |
1 |
|
| 045 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 046 |
189-1321 |
Washer TW8 1/2 tension |
6 |
|
| 047 |
189-5036 |
Wet sm shroud filter (OBSOLETE) |
1 |
|
| 049 |
999-0234 |
Nut 3/8-16 acorn nickel plated |
1 |
|
| 050 |
189-5001 |
5 inch wheel |
2 |
|
| 051a |
189-2951 |
Chassis 19 inch |
1 |
|
| 051b |
189-2952 |
Chassis 17 inch |
1 |
|
| 052 |
189-1328 |
Painted pad holder |
1 |
|
| 053 |
189-1329 |
3/4 Diameter knob with 1/4-20 X 3/8 stud |
1 |
|
| 058 |
189-1323 |
Screw 5/16-18 x 5/16 set |
1 |
|
| 059 |
189-5012 |
Stainless steel hd motor cover |
1 |
|
| 060a |
189-5013 |
Stainless steel hd 1-1/2 hp motor |
1 |
|
| 060b |
189-4850 |
Start capacitor |
1 |
|
| 060c |
189-2506 |
Run capacitor |
1 |
|
| 060d |
189-5092 |
Start switch |
1 |
|
|
|
Brushes - 189-9984 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
996-0489 |
17 inch polypropelene scrubbing brush |
1 |
|
| 0.9835 |
996-0574 |
17 inch medium grit scrubbing brush - 180 grit |
1 |
|
| 0.9835 |
996-0072 |
18 inch Pad driver |
1 |
|
| 0.9835 |
996-0536 |
17 inch lite grit scrubbing brush - 500 grit |
1 |
|
| 0.9835 |
996-0555 |
17 inch heavy grit stripping brush - 80 grit |
1 |
|
|
|
- Pads - 255-1900 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1940 |
19 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1935 |
19 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1964 |
19 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1942 |
19 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1912 |
19 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1977 |
19 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1938 |
19 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1921 |
19 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1950 |
19 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1965 |
19 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1930 |
19 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1967 |
19 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1990 |
19 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1970 |
19 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1992 |
19 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1980 |
19 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1960 |
19 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1952 |
19 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1920 |
19 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1911 |
19 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1995 |
19 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1947 |
19 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1955 |
19 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1923 |
19 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0151 |
19 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0152 |
19 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0153 |
19 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0154 |
19 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0155 |
19 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0156 |
19 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0150 |
19 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-0062 |
19 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0241 |
19 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0242 |
19 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0243 |
19 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0244 |
19 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0245 |
19 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 38 |
255-0246 |
19 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0239 |
19 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0240 |
19 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1924 |
19 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9584 |
19 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9581 |
19 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9578 |
19 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9582 |
19 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9579 |
19 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9580 |
19 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9583 |
19 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9644 |
19 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1982 |
19 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1915 |
19 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1916 |
19 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
