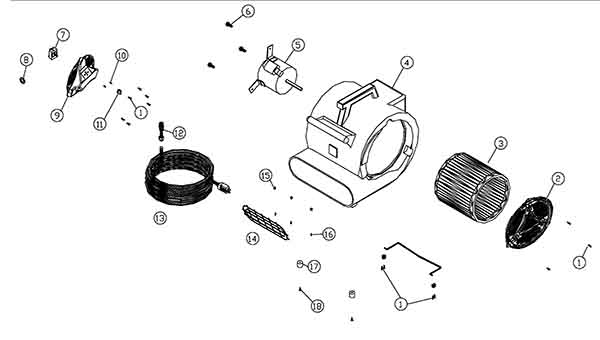

Dryer Assembly - 189-1250 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0680 |
Screw 6 x 1/2 pan head phillips T-A sheet metal |
|
|
| 3 |
190-1672 |
Squirrel cage with lock nut (metal) |
|
|
| 4 |
190-0250 |
Dryer housing (OBSOLETE) |
|
|
| 5 |
190-0252 |
1/2HP dryer motor and capacitor (OBSOLETE) |
|
|
| 6 |
190-0254 |
Screw 3/8-16 x 1/2 |
|
|
| 7 |
183-7483 |
3 speed rotary switch |
|
|
| 8 |
216-0181 |
Nut 1/2 lock steel conduit |
|
|
| 9 |
190-0257 |
Motor control panel |
|
|
| 10 |
999-1538 |
Screw M4-.7 x 6mm flat head phillips |
|
|
| 12 |
216-0173 |
Strain relief |
|
|
| 13 |
183-0563 |
16/3 power cord 20 foot |
|
|
| 15 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
|
|
| 16 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
|
|
| 17 |
190-0030 |
Rubber foot (black) (new style) |
|
|
| 18 |
999-0697 |
Screw 8-32 x 3/4 pan head phillips stainless steel |
|
|
|
|
- Commonly Asked For Parts - 189-9978 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
190-0252 |
1/2HP dryer motor and capacitor (OBSOLETE) |
|
|
| 03 |
183-7483 |
3 speed rotary switch |
|
|
| 04 |
189-4278 |
18/3 pigtail power cord 15ft |
|
|
|
|
|
