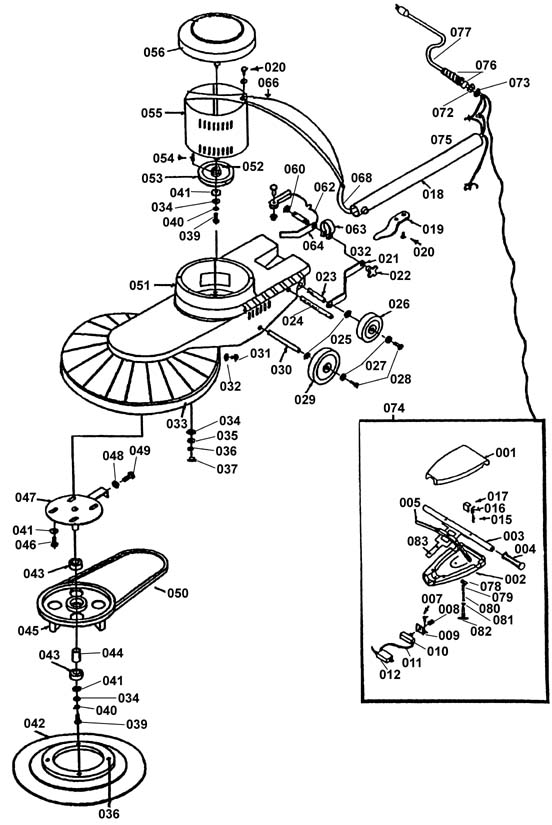

Entire Assembly - 189-1029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
189-2960 |
Handle cover (front) |
|
|
| 002 |
189-2961 |
Handle cover (back) |
|
|
| 003 |
189-2963 |
Cross bar handle |
|
|
| 005 |
189-2966 |
Switch lever |
|
|
| 007 |
189-2968 |
Screw type F 8-32 x 3/8 |
|
|
| 008 |
189-2969 |
Switch spring |
|
|
| 009 |
189-2970 |
Switch bracket |
|
|
| 010 |
189-2971 |
25amp switch |
|
|
| 011 |
189-2972 |
4 in jumper wire |
|
|
| 015 |
189-2973 |
Dowell pin for switch lever (2) |
|
|
| 016 |
189-2974 |
Dowell pin spring for switch lever (OBSOLETE) |
|
|
| 017 |
189-2975 |
Switch lever clip |
|
|
| 018a |
189-2976 |
Handle tube with inserts |
|
|
| 018b |
189-2977 |
Handle tube (2000) without inserts |
|
|
| 020 |
189-2979 |
Screw 10-24 x 1/2 pan head phillips type f |
|
|
| 021 |
189-2980 |
Left side handle brace |
|
|
| 025 |
189-2984 |
Spring washer |
|
|
| 026 |
189-2985 |
4 inch wheel |
|
|
| 027 |
999-0016 |
Washer 1/4 flat plain finish |
|
|
| 028 |
999-0694 |
Screw 1/4-20 x 1/2 flat head phillips zinc plated |
|
|
| 029 |
189-2987 |
5 inch wheel |
|
|
| 030 |
189-2988 |
Axle (main wheels) |
|
|
| 031 |
999-0269 |
Screw 10-24 x 5/8 pan head phillips zinc plated |
|
|
| 032 |
999-0464 |
Washer 3/16 flat plain finish |
|
|
| 033 |
189-2990 |
46 in bumper |
|
|
| 034 |
999-0120 |
Washer 3/8 SAE flat |
|
|
| 035 |
999-0024 |
Washer 5/16 flat stainless steel |
|
|
| 036 |
999-0060 |
Washer 1/4 split lock plain finish |
|
|
| 037 |
999-0076 |
Bolt 1/2-20 x 1 hex head grade 5 plain finish |
|
|
| 038 |
189-2991 |
Screw 5/16-18 x 1-1/2 flat phillips |
|
|
| 039 |
189-2992 |
Bolt 5/16-18 x 3/4 hex cap |
|
|
| 040 |
999-0406 |
Washer 5/16 internal star lock zinc plated |
|
|
| 041 |
189-2993 |
Washer 3/8 wrought |
|
|
| 042 |
189-2994 |
Flexible pad driver |
|
|
| 044 |
189-2996 |
Bearing spacer (OBSOLETE) |
|
|
| 046 |
189-2998 |
Screw 3/8-16 x 3/4 hex end cap |
|
|
| 047 |
189-2999 |
Shaft and plate weldment |
|
|
| 048 |
999-0069 |
Nut 5/16-18 hex |
|
|
| 049 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
|
|
| 050a |
189-3000 |
41 in vee belt (1600) |
|
|
| 050b |
189-3001 |
42 in belt with type B pulley (2000) |
|
|
| 050c |
189-3000 |
41 in vee belt (1600) |
|
|
| 051 |
189-3003 |
Base housing |
|
|
| 052 |
189-3004 |
Washer 3/4 uss plated |
|
|
| 053a |
189-3005 |
Pulley (2000) |
|
|
| 053b |
189-3006 |
Pulley (1600) |
|
|
| 055 |
189-3008 |
1-1/2 hp 115 v rectified D.C. motor |
|
|
| 062 |
190-0008 |
Handle clamp assembly |
|
|
| 063 |
189-3012 |
Handle clamp collar |
|
|
| 064 |
189-3013 |
Right side handle brace |
|
|
| 066 |
189-3014 |
12 in ground wire |
|
|
| 067 |
189-3015 |
Capacitor strap |
|
|
| 068 |
189-3016 |
Interconnect cord |
|
|
| 069 |
999-0462 |
Screw 8-32 x 1/2 pan head slotted zinc plated |
|
|
| 071 |
999-0077 |
Nut 8-32 k-lock zinc plated |
|
|
| 075 |
189-3020 |
Counter weight (2000) |
|
|
| 076a |
189-3021 |
Metal strain relief |
|
|
| 076b |
189-3022 |
Brass sleeve strain relief |
|
|
| 078 |
189-3024 |
lock out stop |
|
|
| 079 |
189-3025 |
Washer SAE 6 (3) |
|
|
| 080 |
189-3026 |
Lock out spring (OBSOLETE) |
|
|
| 082 |
190-0002 |
Lock out knob (OBSOLETE) |
|
|
| 083 |
189-3029 |
Switch bracket |
|
|
| N/S |
999-0320 |
Screw 1/4-20 x 3/4 socket head alloy plain finish |
|
|
| N/S |
189-3047 |
Strain relief washer |
|
|
| N/S |
189-3031 |
14/3 power cord 75ft. w/ strain relief and counter nut |
|
|
| N/S |
189-3044 |
Upper motor bearing |
|
|
| N/S |
189-3033 |
75 ft cord 12/3 with metal relief |
|
|
| N/S |
189-3045 |
Screw and nut |
|
|
| N/S |
189-2962 |
Screws for cover |
|
|
| N/S |
189-3020 |
Counter weight (2000) |
|
|
| N/S |
189-3042 |
50 amp 60 cycle rectifier |
|
|
| N/S |
999-0577 |
Screw 14 x 1/2 hex washer head sheet metal zinc |
|
|
| N/S |
189-3026 |
Lock out spring (OBSOLETE) |
|
|
| N/S |
189-3037 |
60 MDF capacitor AC motor only |
|
|
| N/S |
189-2656 |
Lock out knob for EB1600 |
|
|
| N/S |
189-3030 |
Screws for switch bracket (2) |
|
|
| N/S |
189-3040 |
Pad holder center grip |
|
|
| N/S |
189-3041 |
Wheel spacer |
|
|
| N/S |
189-3032 |
75 ft cord 12/3 (2000) |
|
|
| N/S |
189-3043 |
Bottom bearing |
|
|
| N/S |
189-3039 |
Carbon brush (sold individually) |
|
|
| N/S |
189-2964 |
Screws for bar handle (set of 2) |
|
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
