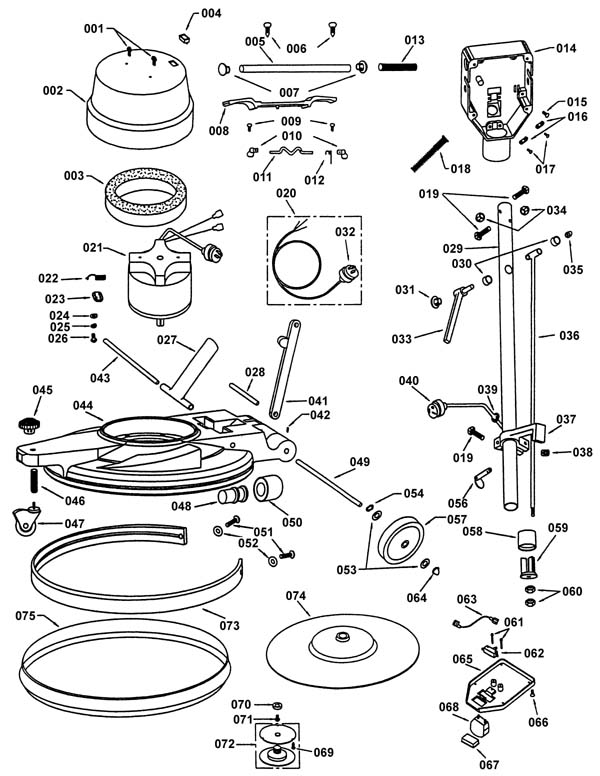

Entire Assembly - 189-1030 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
| 002 |
189-5070 |
Motor Cover |
1 |
|
| 003 |
189-5036 |
Wet sm shroud filter (OBSOLETE) |
1 |
|
| 004 |
189-2959 |
Clutch plate |
1 |
|
| 005 |
189-5033 |
Handle tube |
1 |
|
| 006 |
189-1317 |
Screw 14 x 1 1/2 type a |
2 |
|
| 008 |
189-5048 |
Trigger assembly (OBSOLETE) |
1 |
|
| 009 |
189-1307 |
Screw 6-32 x 1/4 tap |
2 |
|
| 010 |
189-5015 |
Knob safety switch |
2 |
|
| 011 |
189-5049 |
Level safety switch tx |
1 |
|
| 012 |
189-5017 |
Spring safety switch |
1 |
|
| 013 |
189-5010 |
Handle grip foam (OBSOLETE) |
2 |
|
| 014 |
189-5022 |
Painted switch box |
1 |
|
| 015 |
189-1311 |
8-32 X 1/4 Phillips Taptite |
1 |
|
| 017 |
189-1318 |
8-32 X 1/2 Taptite Phillips |
4 |
|
| 018 |
189-5009 |
Anti-kink spring |
1 |
|
| 019 |
999-0200 |
Bolt 1/2-13 x 1 1/4 hex head |
3 |
|
| 020 |
189-3110 |
14/3 power cord 50 foot |
1 |
|
| 021 |
189-5036 |
Wet sm shroud filter (OBSOLETE) |
1 |
|
| 022 |
189-3039 |
Carbon brush (sold individually) |
4 |
|
| 023 |
189-3042 |
50 amp 60 cycle rectifier |
1 |
|
| 024 |
999-0964 |
Washer 5/16 x 3/4 flat stainless steel |
4 |
|
| 025 |
189-1305 |
Washer 5/16 spring lock |
4 |
|
| 026 |
189-1308 |
Bolt 5/16- 18 x 1 1/2 hex brass |
4 |
|
| 027 |
189-5021 |
T-handle support paint |
1 |
|
| 028 |
189-5067 |
Axle Plated Brace |
1 |
|
| 029 |
189-5025 |
Plated handle tube |
1 |
|
| 030 |
N/A |
Not available |
2 |
(Bushing) |
| 031 |
189-5027 |
Heyco cam lever plug |
1 |
|
| 033 |
N/A |
Not available |
1 |
(Cam lever assembly) |
| 034 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 035 |
999-0234 |
Nut 3/8-16 acorn nickel plated |
1 |
|
| 036 |
189-5028 |
Extension rod welded |
1 |
|
| 037 |
N/A |
Not available |
1 |
(Brace lock) |
| 038 |
189-1323 |
Screw 5/16-18 x 5/16 set |
1 |
|
| 039 |
217-0014 |
On/off switch |
1 |
|
| 041 |
189-5019 |
Painted handle brace |
1 |
|
| 042 |
189-2958 |
Screw 10-24 x 1/4 stainless steel |
1 |
|
| 043 |
189-5020 |
Plated axle shaft |
1 |
|
| 044 |
189-2945 |
Chassis-poly UHS |
1 |
|
| 045 |
N/A |
Not available |
1 |
(Knob) |
| 046 |
N/A |
Not available |
1 |
(Wheel stud) |
| 047 |
N/A |
Not available |
1 |
(Caster support) |
| 048 |
189-5071 |
Sleeve Filter |
1 |
|
| 049 |
189-5052 |
Wheel axle plated |
1 |
|
| 051 |
999-0487 |
Screw 1/4-20 x 3/4 pan head phillips zinc plated |
2 |
|
| 052 |
189-1301 |
Washer 1/4 large |
2 |
|
| 053 |
999-0566 |
Washer 1/2 flat nylon |
4 |
|
| 054 |
189-1321 |
Washer TW8 1/2 tension |
2 |
|
| 056 |
189-5005 |
Hitch pin (OBSOLETE) |
1 |
|
| 057 |
189-5001 |
5 inch wheel |
2 |
|
| 058 |
189-5029 |
Tapered sleeve (OBSOLETE) |
1 |
|
| 059 |
189-5011 |
Wedge handle (OBSOLETE) |
1 |
|
| 060 |
189-1309 |
Nut 5/16-18 nylon locking |
2 |
|
| 061 |
189-1316 |
6-32 X 7/8 Phillips Taptite (OBSOLETE) |
2 |
|
| 063 |
189-5050 |
Lead wire meter |
1 |
|
| 064 |
189-5002 |
Axle end caps |
2 |
|
| 065 |
189-5065 |
Switch box cover |
1 |
|
| 066 |
189-1311 |
8-32 X 1/4 Phillips Taptite |
4 |
|
| 067 |
189-5032 |
Switch insert |
1 |
|
| 068 |
189-5066 |
Amp meter (OBSOLETE) |
1 |
|
| 069 |
189-1324 |
Screw 8 x 5/8 pan head set |
3 |
|
| 070 |
189-1315 |
Cup washer |
1 |
|
| 071 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
1 |
|
| 072 |
991-2206 |
Center-Lok 3 pad holder |
1 |
|
| 073 |
189-5053 |
Uhs bumper (OBSOLETE) |
1 |
|
| 074 |
189-5059 |
Flexible drive assembly |
1 |
|
| 075 |
189-5069 |
Dust Skirt Assembly |
1 |
|
|
|
