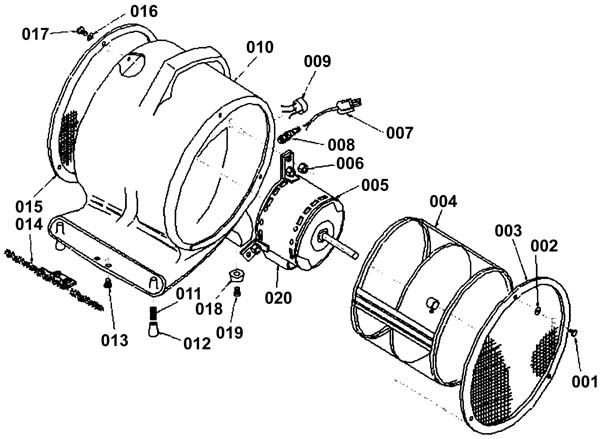

Entire Assembly - 189-8001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
189-1339 |
Screw 8 3/4 phillips head |
|
|
| 002 |
999-0412 |
Washer #8 SAE flat |
|
|
| 003 |
189-7500 |
3 hole side screen fan side |
|
|
| 004 |
189-7501 |
Squirrel cage fan |
|
|
| 005 |
189-7502 |
115 volt motor |
|
|
| 006 |
999-0190 |
Nut 1/4-20 hex plain finish |
|
|
| 007 |
189-7503 |
18/3 30 ft power cable |
|
|
| 008 |
189-7504 |
Cord restraint |
|
|
| 009 |
189-7505 |
3 postion rotary switch |
|
|
| 010 |
189-7506 |
Plastic body housing |
|
|
| 012 |
189-7508 |
Rubber tip for adjustable rod |
|
|
| 013 |
999-0344 |
Bolt 1/4-20 x 1 1/2 hex head plain finish |
|
|
| 014 |
189-7509 |
Cat guard front screen |
|
|
| 015 |
189-7510 |
Motor side 3 hole side screen |
|
|
| 016 |
999-0016 |
Washer 1/4 flat plain finish |
|
|
| 017 |
999-0076 |
Bolt 1/2-20 x 1 hex head grade 5 plain finish |
|
|
| 019 |
189-1340 |
Screw 8 x 1/2 |
|
|
| 021 |
189-7513 |
Cord wrap bracket |
|
|
| 022 |
189-1341 |
Washer 8 black nylon |
|
|
| 023 |
189-1342 |
Screw 8 phillips oval head black oxide |
|
|
|
|
|
