Parts List Complete for BETCO CREWMAN DC1200


Base Assembly - 189-7000
RefNbr Part Number Description Req Notes
1 189-9521 Steel base
2 189-9514 Motor mount plate
3 189-9515 Burnisher bracket
4 189-9516 Spring adjustment bracket
5 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel
6 999-0423 Nut 5/16-18 nylon insert lock stainless steel
7 189-9517 Bolt 1/2 x 3/8 x 3/8-16 shoulder
8 189-3092 Washer 1/2 x 1 1/4 nylon
9 189-4746 Nut
10 189-3144 Axle
11 189-3182 5 inch wheel
12 189-3132 Axle cap
13 189-3198 2.5 inch caster wheel
14 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc
15 999-0016 Washer 1/4 flat plain finish
16 189-9519 4 inch spring
17 189-9520 Threaded spring adjustment rod, 1/2 x 4 inch
18 999-0050 Nut 1/2-13 hex jam plain finish
19 189-4735 115V vacuum motor
19a 189-3163 Carbon brush
19b 189-3162 Rectifier
20 204-0077 Washer flat
21 999-0034 Washer 3/8 split lock plain finish
22 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel
23 189-5126 Dust shroud (black)
24 189-7569 Dust seal skirt
25 189-3143 Screw 1/4-20 x 3/4
26 999-0016 Washer 1/4 flat plain finish
27 999-1049 Washer 1/4 split lock zinc plated
28 189-3181 Rivet
29 189-7570 Pad driver
30 999-0424 Bolt 5/16-18 x 1 hex head stainless steel
31 204-0077 Washer flat
32 999-0028 Washer 5/16 split lock plain finish
33 189-9522 DC burnisher cover (gray)
34 189-9523 DC burnisher dust bag cover(gray)
35 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated
36 189-5187 Cloth filter bag
37 189-9525 DC burnisher adjustment decal
38 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel
39 189-7548 9 inch motor cover
40 189-9526 DC burnisher knob (black)
41 189-3131 Washer 1/2 spring
42 991-2202 Big mouth pad holder set (blue)
43 999-9119 Nut 1/2-13 nylon hex jam

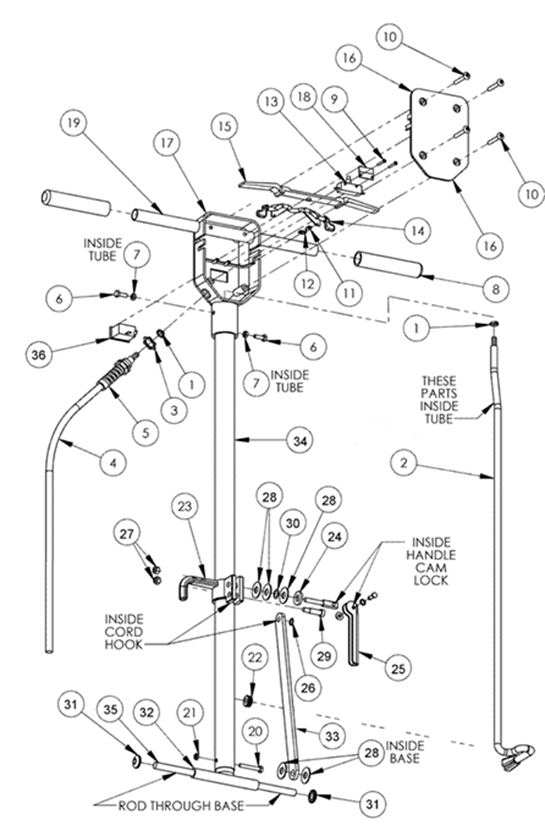

Handle Assembly Before Serial Number 0438426 - 189-7001
RefNbr Part Number Description Req Notes
1 189-3108 Cable tie
2 189-3109 14/3 handle cord
3 189-7556 Strain relief nut
4 189-3172 14/3 power cord 50 foot (yellow)
5 189-8589 Strain relief
6 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel
7 999-0152 Nut 1/4-20 nylon insert lock zinc plated
7 999-0152 Nut 1/4-20 nylon insert lock zinc plated
8 189-8299 Handle grip
9 189-3144 Axle
10 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel
11 189-3113 Spring
12 189-3114 Spring clip
13 189-3115 Switch
14 189-3116 Safety lock
15 189-3117 Trigger switch
16 189-3118 Switch box cover
17 189-9528 DC2000 switch box cover (DC 2000 only)
18 189-3120 Switch plate
19 189-3121 Handle tube
20 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated
21 999-0190 Nut 1/4-20 hex plain finish
22 189-3122 Grommet
23 189-3123 Cord hook
24 189-3010 Oval washer
25 189-3128 Cam lock handle assembly
26 189-7557 Spring washer (OBSOLETE)
27 999-0423 Nut 5/16-18 nylon insert lock stainless steel
28 189-3092 Washer 1/2 x 1 1/4 nylon
29 189-3129 Bolt 3/8 x 1 shoulder
30 189-3131 Washer 1/2 spring
31 189-3132 Axle cap
32 189-9612 Handle socket
33 189-3134 Handle bracket
34 189-3135 Handle tube
35 189-9524 Handle mount 1/2 x 6 5/8 rod
36 189-9529 DC burnisher meter
N/S 189-3128 Cam lock handle assembly

Handle Assembly After Serial Number 0438426 - 189-7002
RefNbr Part Number Description Req Notes
1 189-9528 DC2000 switch box cover 1 (DC2000 only)
2 204-0077 Washer flat 3
3 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
4 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 2
5 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated 1
6 999-0190 Nut 1/4-20 hex plain finish 1
7 189-3129 Bolt 3/8 x 1 shoulder 1
N/S 189-9530 Jumper wire 1
9 189-3165 Serial number decal 1
10 189-9529 DC burnisher meter 1
11 189-7557 Spring washer (OBSOLETE) 1
12 189-9524 Handle mount 1/2 x 6 5/8 rod 1
13 999-0016 Washer 1/4 flat plain finish 2
14 189-9612 Handle socket 1
15 189-3118 Switch box cover 1
16 189-8299 Handle grip 2
17 189-3113 Spring 2
18 189-3110 14/3 power cord 50 foot 1
19 189-3109 14/3 handle cord 1
20 189-3128 Cam lock handle assembly 1
21 189-3010 Oval washer 1
22 189-3134 Handle bracket 1
23 189-3123 Cord hook 1
24 189-3132 Axle cap 2
25 189-3131 Washer 1/2 spring 1
26 189-3114 Spring clip 2
27 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel 4
28 189-3112 Screw #6 x 1 phillips 2
29 189-3121 Handle tube 1
30 189-3122 Grommet 1
31 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
32 189-3168 Ground wire (green) 1
33 189-3169 Wire nut (yellow) 2
34 189-3108 Cable tie 1
35 189-3170 Warning decal 1
36 189-3135 Handle tube 1
36 189-3135 Handle tube 1
37 189-9531 Crewman DC2000 decal 1
38 189-7556 Strain relief nut 2
39 189-3115 Switch 1
40 189-8589 Strain relief 1
41 189-7635 Left hand switch lever 1
42 189-7636 Right hand switch lever 1
43 189-9532 Safety lock 1
44 189-7660 Safety spring 1

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
