Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|

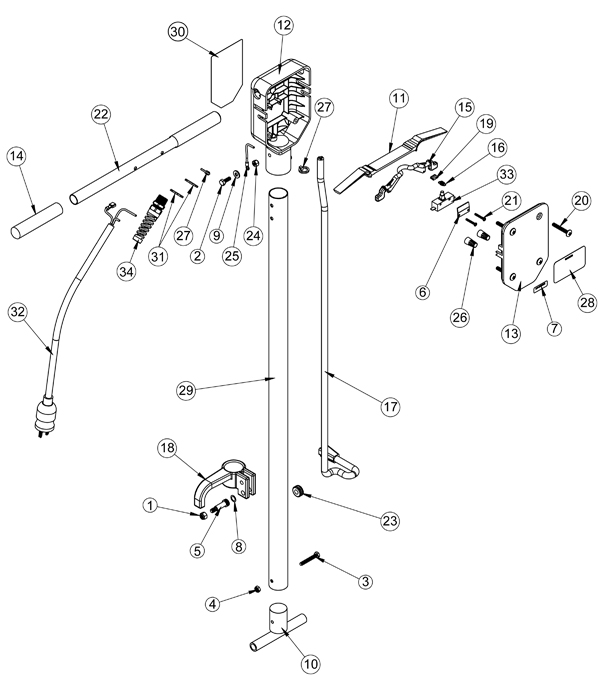

Handle Assembly - 189-2035 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
| 2 |
999-1099 |
Bolt 1/4-20 x 3/4 hex head stainless steel |
2 |
|
| 3 |
999-0394 |
Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated |
1 |
|
| 4 |
999-0190 |
Nut 1/4-20 hex plain finish |
1 |
|
| 5 |
189-3129 |
Bolt 3/8 x 1 shoulder |
1 |
|
| 6 |
189-3120 |
Switch plate |
1 |
|
| 7 |
189-3165 |
Serial number decal |
1 |
|
| 8 |
189-7557 |
Spring washer (OBSOLETE) |
1 |
|
| 9 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 10 |
189-9612 |
Handle socket |
1 |
|
| 11 |
189-3166 |
Trigger handle |
1 |
|
| 14 |
189-8299 |
Handle grip |
2 |
|
| 15 |
189-3116 |
Safety lock |
1 |
|
| 17 |
189-3109 |
14/3 handle cord |
1 |
|
| 19 |
189-3114 |
Spring clip |
1 |
|
| 20 |
999-0599 |
Screw 1/4-20 x 1 3/4 pan head phillips stainless steel |
4 |
|
| 21 |
189-3112 |
Screw #6 x 1 phillips |
2 |
|
| 22 |
189-3121 |
Handle tube |
1 |
|
| 24 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 25 |
189-3168 |
Ground wire (green) |
1 |
|
| 26 |
189-3169 |
Wire nut (yellow) |
2 |
|
| 28 |
189-3170 |
Warning decal |
1 |
|
| 30 |
189-3171 |
Crewman 20HD decal |
1 |
|
| 31 |
189-7556 |
Strain relief nut |
2 |
|
| 32 |
189-3172 |
14/3 power cord 50 foot (yellow) |
1 |
|
| 34 |
189-8589 |
Strain relief |
1 |
|
| N/S |
189-7660 |
Safety spring |
1 |
|
|
|

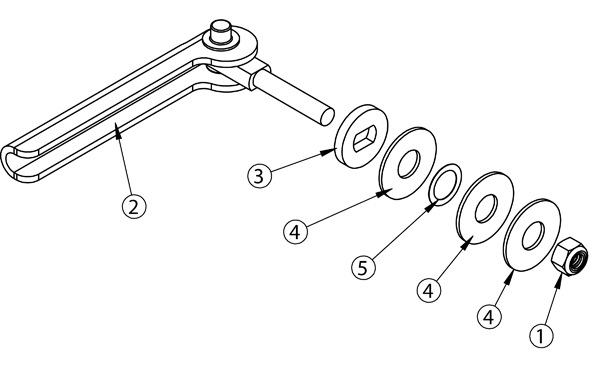

Cam Lock Assembly - 189-2036 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
| 2 |
189-3128 |
Cam lock handle assembly |
1 |
|
| 4 |
189-3092 |
Washer 1/2 x 1 1/4 nylon |
3 |
|
| 5 |
189-3131 |
Washer 1/2 spring |
1 |
|
|
|
Base Assembly - 189-2037 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
999-0028 |
Washer 5/16 split lock plain finish |
4 |
|
| 3 |
189-3142 |
Washer 1/4 fender zinc |
2 |
|
| 5 |
189-3182 |
5 inch wheel |
2 |
|
| 6a |
189-3183 |
20 inch base |
1 |
(20 inch) |
| 6b |
189-3184 |
17 inch base |
1 |
(17 inch) |
| 7 |
189-3134 |
Handle bracket |
1 |
|
| 10 |
189-3092 |
Washer 1/2 x 1 1/4 nylon |
4 |
|
| 11a |
189-3185 |
1.5 HP motor |
1 |
(single speed) |
| 11b |
189-3186 |
1.5 HP motor |
1 |
(dual speed) |
| 12 |
189-3131 |
Washer 1/2 spring |
2 |
|
| 14 |
189-3143 |
Screw 1/4-20 x 3/4 |
2 |
|
| 16 |
999-0552 |
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
4 |
|
| 17 |
189-3188 |
Betco decal |
1 |
(Crewman only) |
| N/S |
189-7645 |
20 inch stripping brush |
1 |
|
| N/S |
996-0739 |
Pad driver |
1 |
|
|
|

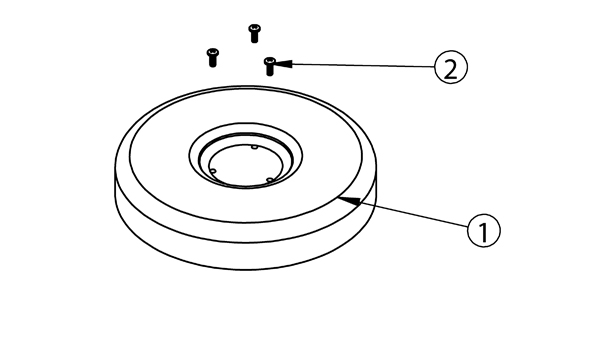

Cover Assembly - 189-2038 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
189-3189 |
Motor cover (black) |
1 |
|
| 2 |
189-3190 |
Screw 10-32 x 1/2 phillip truss head |
3 |
|
|
|
Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Pads - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
