Parts List Complete for BETCO Bat2500

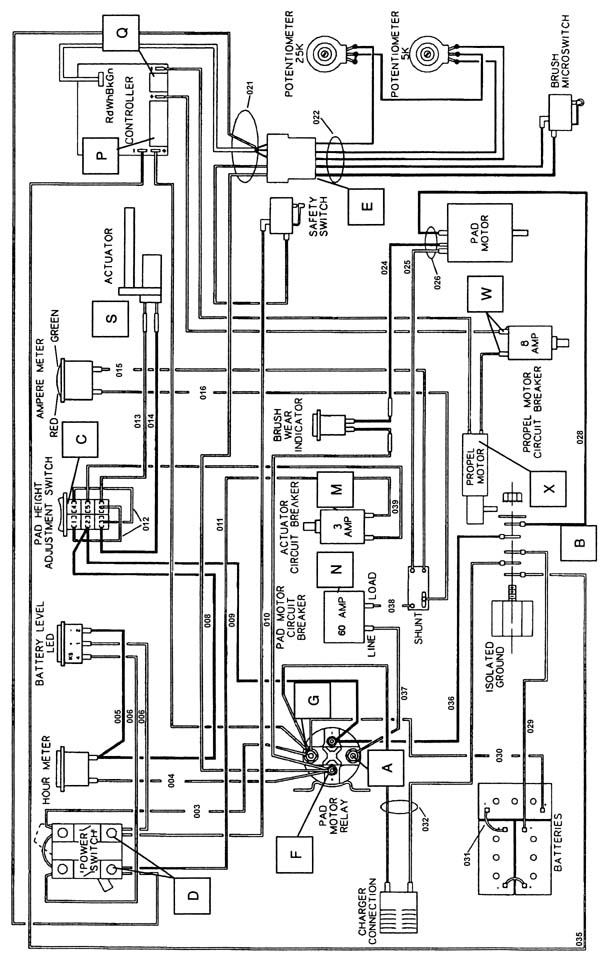

Electrical Schematic - 189-1014
RefNbr Part Number Description Req Notes
003 189-3051 Wire assembly 26 inch red
004 189-3052 Wire assembly 30 inch red
005 189-3053 Wire assembly 6 inch black
006 189-3054 Wire assembly 7 inch red
008 189-3055 Wire assembly 10 inch black
009 189-3056 Wire assembly 23 inch black
010 189-3057 Wire assembly 24 inch red
011 189-3058 Wire assembly 25 inch red
012 189-3059 Wire assembly 3 inch red
013 189-3060 Wire assembly 26 inch white
014 189-3061 Wire assembly 26 inch black
015 189-3062 Wire assembly 38 inch black
016 189-3063 Wire assembly 38 inch red
021 189-2195 Wire assembly control
024 189-3065 Wire assembly 66 inch black
025 189-3066 Wire assembly 58 inch black
026 189-3067 Wire assembly-motor
028 189-3068 Wire assembly 49 inch red
029 189-2110 Cable 4GA (black) x 27 in
030 N/A Not available (Cable assembly)
031 189-2105 Clamp style jumper cable (black)
032 N/A Not available (Wire)
036 189-3070 Wire assembly 18 inch black
037 173-0457 9 inch Wire
038 173-0456 10 inch Wire
039 189-3073 Wire assembly 27 inch red

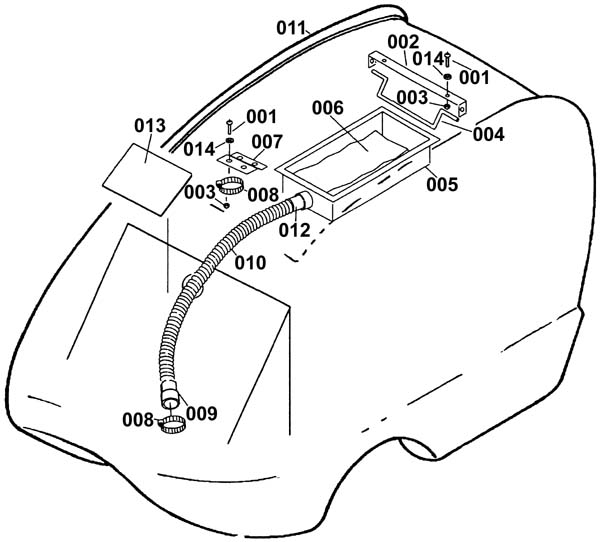

Hood Parts - 189-1015
RefNbr Part Number Description Req Notes
001 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated
002 189-2164 Bracket housing holder
003 173-2472 Nut 10-32 with star washer
004 189-2165 Bracket folding housing holder
005 189-2166 Housing filter bag
006 189-2167 Filter bag packs (10 pack)
007 189-2168 Bracket bag housing holder
008 189-4108 Worm gear clamp
011 189-2169 Cover betco main
012 993-0014 CUFF, HOSE 1.5 inch BLK A 2161
013 189-4138 Betco logo label

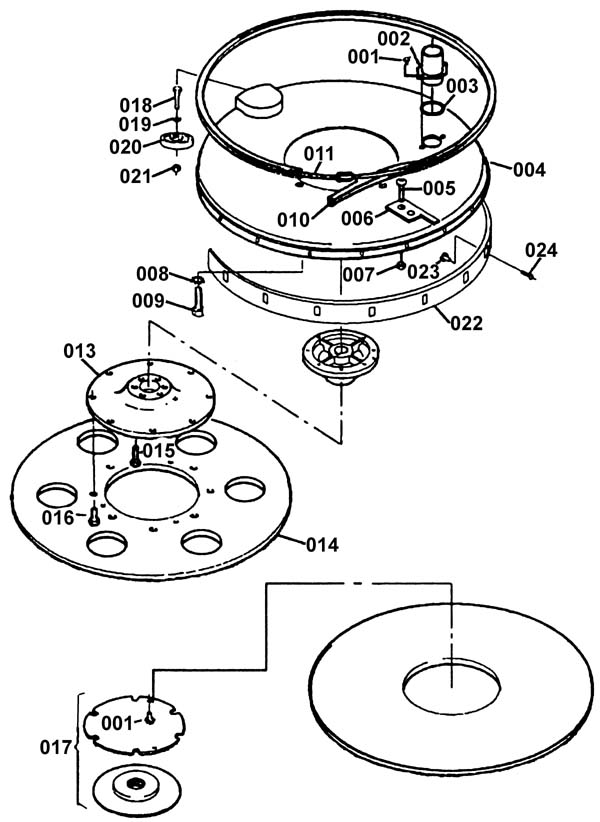

Shroud Assembly - 189-1016
RefNbr Part Number Description Req Notes
001 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer
002 189-2171 Tube assembly (no dust)
003 189-2172 O ring
004 189-2173 Shroud assembly
005 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated
006 189-2174 Bracket air flow
007 173-2472 Nut 10-32 with star washer
008 999-0017 Washer 1/4 external star lock
009 999-0200 Bolt 1/2-13 x 1 1/4 hex head
010 189-2175 Bumper shroud
011 173-0615 Worm gear clamp
013 189-2177 Hub flex disk (OBSOLETE)
014 189-2178 Pad driver
015 173-0466 Screw 10-32 x 3/4 phillips truss head
016 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc
017 991-2201 Center-Lok II pad holder - right hand thread (black)
018 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated
019 999-0617 Washer 3/8 x 1 flat stainless steel
020 189-0326 Bumper wheel
021 999-0188 Nut 3/8-16 nylon insert lock zinc plated
022 189-2181 Skirt shroud
023 189-2182 Nut 8-32 x 7/16 tee
024 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated

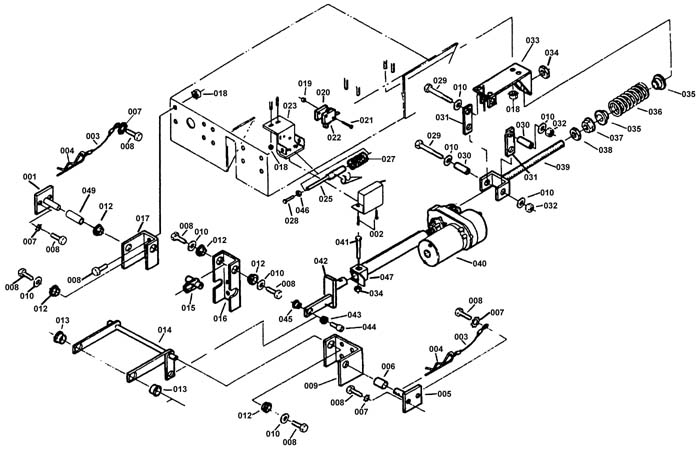

Lift Linkage - 189-1017
RefNbr Part Number Description Req Notes
001 173-0488 Right cover pivot assembly
002 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel
003 173-0490 Cover pin cord
004 173-0489 Cotter pin
005 173-0506 Cover pivot assembly
006 173-0507 Cover pivot bushing
007 999-0017 Washer 1/4 external star lock
008 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated
009 173-0508 Scrub deck link bracket
010 999-0123 Washer 1/4 SAE flat zinc plated
012 189-2141 Bushing flange 1/2 x 3/4OD
013 173-1987 Deck bushing
014 173-9779 Deck lift linkage (OBSOLETE)
015 173-0510 Deck guide adjustment linkage assembly
016 173-0509 Scrub deck link bracket
017 173-0486 Scrub deck link bracket
018 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS
019 173-2579 Nut 4-40 hex star lock
020 173-0492 Spacer
021 189-2147 Screw 4-40 x 1 in phillips pan head machine
022 173-1902 SPST switch
023 189-2149 Bracket extended microswitch mounting
024 173-0494 Retaining clip
025 173-0493 Microswitch plunger
026 189-2152 Cover extended microswitch bracket
027 189-0353 Compression spring
028 999-0254 Screw 8-32 x 5/8 flat head slotted zinc
029 173-5054 Bolt 1/4-1-3/4 hex head
030 173-9785 Bushing (OBSOLETE)
031 173-0501 Actuator pivot link
032 999-0152 Nut 1/4-20 nylon insert lock zinc plated
033 189-2156 Mount actuator spring
034 173-3869 Nut 3/8-16 hex nylock (OBSOLETE)
035 189-2157 Cap spring
036 173-9106 Spring
037 999-0488 Nut 3/8-16 flange lock serrated zinc plated
038 999-0247 Nut 3/8-16 hex jam plain finish
039 189-2159 Pivot actuator spring
040 189-2160 Actuator 36VDC 3in stroke
041 999-0550 Bolt 3/8-16 x 2 hex head stainless steel
042 189-2161 Linkage actuator connecting
043 173-1939 Bushing
044 999-0312 Screw 1/4-20 x 3/8 socket head shoulder
045 173-1958 Flange bushing
046 999-0308 Nut 8-32 plain
047 189-2162 Plate microswitch plunger
049 173-0487 Tube

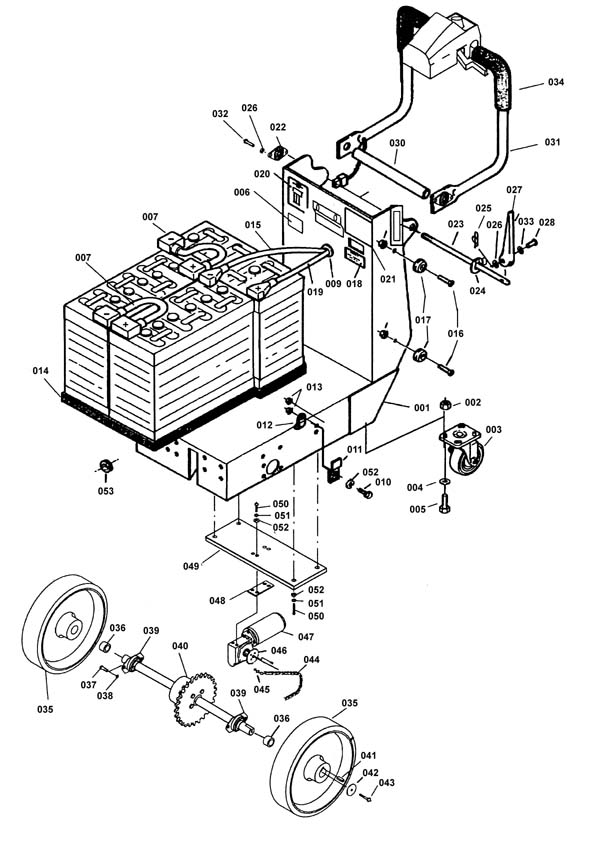

Chassis/Drive Assembly - 189-1018
RefNbr Part Number Description Req Notes
001 189-2076 Frame assembly
002 173-3869 Nut 3/8-16 hex nylock (OBSOLETE)
004 999-0617 Washer 3/8 x 1 flat stainless steel
005 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated
006 173-1723 2 percent grade decal
007 189-2105 Clamp style jumper cable (black)
009 173-1891 Grommet
010 999-0710 Screw 10-32 x 5/8 button head six-lobe stainless steel
011 173-0424 Battery retainer bracket
012 173-2099 P clamp (OBSOLETE)
013 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS
014 173-0417 Battery tray
015 189-2110 Cable 4GA (black) x 27 in
016 999-0326 Screw 1/4-20 x 3/4 flat head phillips zinc plated
017 173-0421 Main cover spacer
018 189-2111 Label charger warning
019 N/A Not available (Cable assembly)
020 189-2113 Battery warning label
021 189-2114 Label wiring diagram
023 173-9810 Handle adjsutment rod (OBSOLETE)
024 189-9275 Key (pkg of 2)
025 173-1130 Cotter ring
026 999-0998 Washer #10 flat stainless steel
027 189-2116 Lever handle lock
028 173-0419 Clevis pin
030 173-9813 Handle adjustment tube (OBSOLETE)
031 173-9814 Propel handle (OBSOLETE)
033 999-0006 Washer 3/16 flat zinc plated
034 173-1043 Handle x 9.5 inch Grip
035 189-2122 Wheel 10 in x 2-1/2in gray with 1in bore
036 189-2123 Spacer axle
037 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated
038 999-0488 Nut 3/8-16 flange lock serrated zinc plated
039 173-9117 Bearing assembly (OBSOLETE)
040 173-9819 Differential (OBSOLETE)
041 173-0518 Key 1/4 x 1/4 x 2 1/2
042 999-0016 Washer 1/4 flat plain finish
043 999-0710 Screw 10-32 x 5/8 button head six-lobe stainless steel
044 189-2128 Chain #40 1/2 in pitch x 40
046 173-9119 Sprocket (OBSOLETE)
047 173-9120 Motor (OBSOLETE)
048 189-2132 Plate motor spacer
049 189-2133 Plate propel motor
050 999-0200 Bolt 1/2-13 x 1 1/4 hex head
051 999-0017 Washer 1/4 external star lock
052 999-0123 Washer 1/4 SAE flat zinc plated
053 173-0426 Grommet 3/4 x 1.38

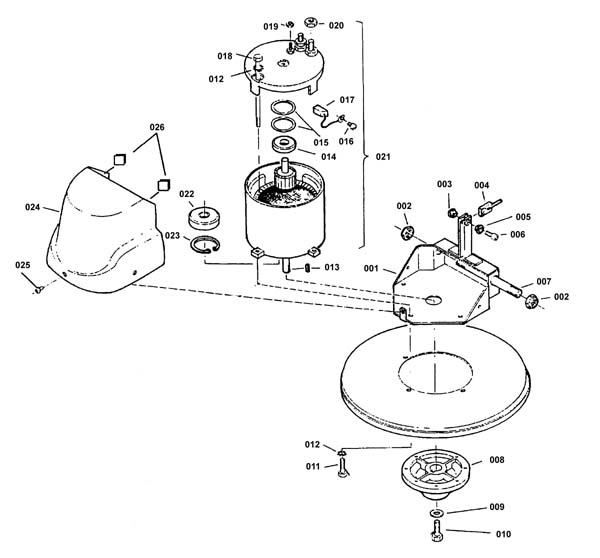

Deck Lift Mechanism - 189-1019
RefNbr Part Number Description Req Notes
001 173-9790 Scrub deck mount (OBSOLETE)
003 173-1958 Flange bushing
004 189-2087 Linkage deck guide adjustment
005 173-1939 Bushing
006 999-0312 Screw 1/4-20 x 3/8 socket head shoulder
007 189-2089 Rod Deck lift
008 173-9793 Pad driver hub (OBSOLETE) 1
009 999-0024 Washer 5/16 flat stainless steel
010 173-0439 Screw 5/16-24 x 1/2 machine stainless steel
011 999-0200 Bolt 1/2-13 x 1 1/4 hex head
012 999-0017 Washer 1/4 external star lock
013 173-9111 Square keyway
014 173-9794 Upper motor bearing (OBSOLETE)
015 189-2094 Washer bearing thrust
016 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated
017 189-2095 Brush set 2000rpm
018 189-2096 Bolt 1/4-20 x 7 1/2
019 999-0460 Nut 10-32 hex
020 173-5044 Nut 1/4-28 stop elastic
021 173-9112 Motor
022 173-9799 Lower motor bearing (OBSOLETE)
023 189-2100 Snap ring
024 173-0440 Motor cover
025 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer
026 173-0213 Gasket

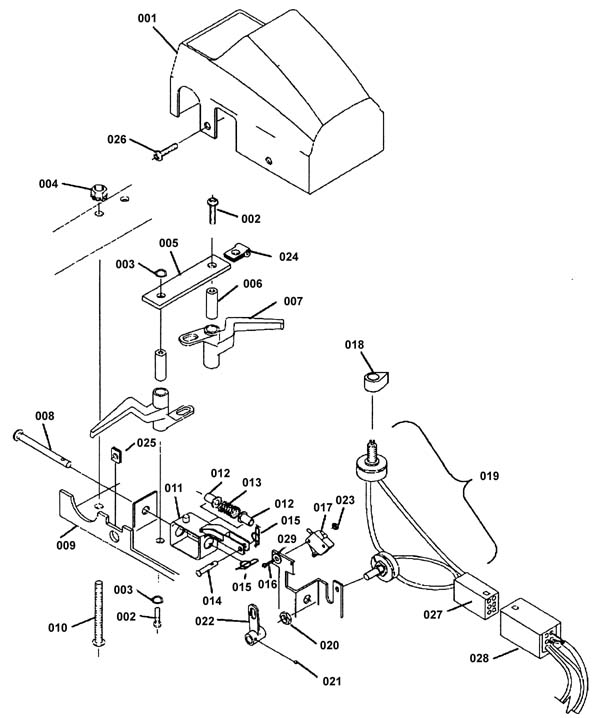

Drive Control Assembly - 189-1020
RefNbr Part Number Description Req Notes
001 173-7107 Propel handle cover
002 999-0896 Screw 10-32 x 3/8 round head phillips stainless steel
003 999-0311 Washer #10 external star lock zinc plated
004 173-2472 Nut 10-32 with star washer
005 173-1030 Lever Pivot Support
006 173-1031 Handle Lever Pivot Rod
007 173-1032 Propel Control Handle Lever
008 173-1033 Clevis Pin
009 173-1034 Propel Control Plate Assembly
010 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated
011 173-1035 Lever Centering Guide
013 189-2191 Spring 1-1/2in large compression
014 173-1038 Pin Clevis 3/16 x 1/12
015 173-1130 Cotter ring
017 189-0305 Microswitch
018 173-1041 Speed control knob
020 173-3896 Nut 3/8-27 Panel
021 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish
022 173-1042 Potentiometer pivot (OBSOLETE)
023 173-2579 Nut 4-40 hex star lock
024 173-1800 5/16 nylon clamp (OBSOLETE)
025 173-2576 Nut 10-24 tinnerman (OBSOLETE)
026 173-2566 Screw #10 x 1/2 pan head
027 173-4052 Connector Molex 6 Pin receptacle
028 189-2195 Wire assembly control
029 999-0377 Washer 6 SAE flat plain finish

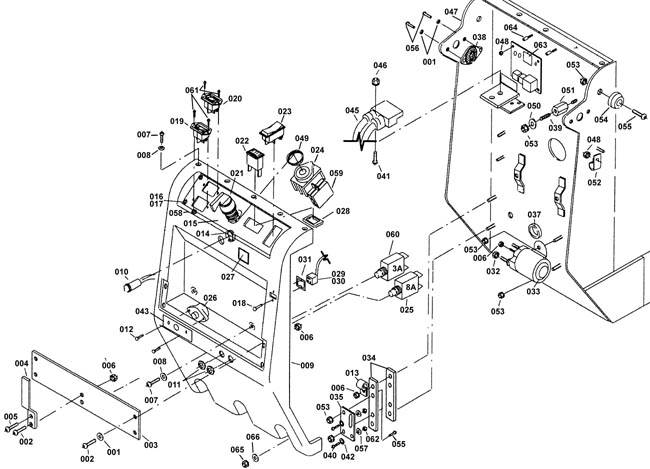

Electrical Controls - 189-1021
RefNbr Part Number Description Req Notes
001 999-0998 Washer #10 flat stainless steel
002 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel
003 189-2044 Cover storage
004 173-2062 Cord hook
005 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated
006 173-2472 Nut 10-32 with star washer
007 173-2566 Screw #10 x 1/2 pan head
008 999-0006 Washer 3/16 flat zinc plated
009 189-2046 Cover rear
010 189-2047 Light assembly brush
011 173-3896 Nut 3/8-27 Panel
012 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel
013 173-1800 5/16 nylon clamp (OBSOLETE)
014 173-9124 Washer 1/2 ID spring
015 189-2051 Plate switch panel
016 173-5025 Screw 6-32 x 1/2 zinc truss head
017 173-5083 Nut 6-32 U-tinnerman (OBSOLETE)
018 189-2054 Rivet 1/8 x 1/2 Aluminum
019 173-1900 DC hour meter
020 189-2056 Light battery charge LED
021 173-1906 Main rotary key switch
022 173-0445 0-70 amp meter
023 189-2059 Switch 3 position DPDT MOM
024 173-3500 contract block clip switch (OBSOLETE)
025 173-2271 8amp circuit breaker
026 189-2061 Circuit breaker 60amp
027 173-1282 For safety decal
028 173-1164 Meter retaining plate
029 189-2063 Connector 6 pin F-molex
030 173-1082 male pin Molex terminal S/N 4001398
031 189-2065 Plate molex mounting
033 189-2066 Relay 36VDC 100A heavy duty
034 173-0451 Shunt mounting bracket
035 173-0449 70amp 50MV shunt
037 173-0426 Grommet 3/4 x 1.38
039 999-0297 Bolt 1/4-20 x 1 hex head stainless steel
040 999-0297 Bolt 1/4-20 x 1 hex head stainless steel
041 999-0511 Screw 6-32 x 1 pan head phillips zinc plated
042 999-0148 Washer #6 external star lock zinc plated
043 189-2072 Spacer circuit breaker
045 N/A Not available (Wire)
046 999-0195 Nut 6-32 hex plain
047 189-2076 Frame assembly
048 173-2522 Nut 6-32 with star washer
049 999-9009 Nut M22 x 1.5 hex plain finish
050 189-2078 Washer 5/16 x 3/4 brass
051 173-1145 Insulated stand-off
052 189-0119 Knob
053 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS
054 173-0421 Main cover spacer
055 999-0326 Screw 1/4-20 x 3/4 flat head phillips zinc plated
057 999-1158 Washer #6 flat stainless steel
058 999-0337 Nut 6-32 nylon insert lock stainless steel
059 173-3501 contact module N.O switch
060 991-1624 3amp circuit breaker
061 173-5025 Screw 6-32 x 1/2 zinc truss head
062 173-3909 Nut 6-32 hex brass
063 173-0444 36v controller
064 173-1521 Spacer
065 999-0086 Nut 10-32 nylon insert lock zinc plated
066 999-0006 Washer 3/16 flat zinc plated

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
