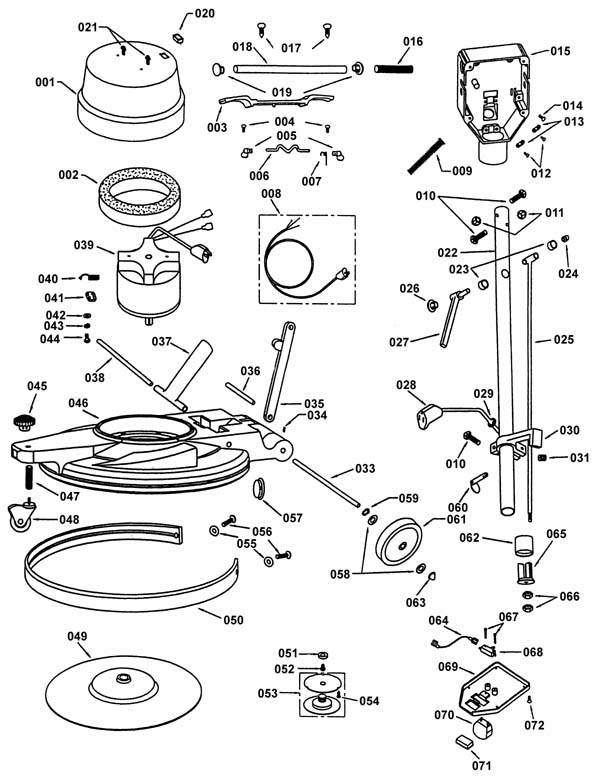

Entire Assembly - 189-1026 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
189-5070 |
Motor Cover |
1 |
|
| 002 |
189-5036 |
Wet sm shroud filter (OBSOLETE) |
1 |
|
| 003 |
189-5048 |
Trigger assembly (OBSOLETE) |
2 |
|
| 004 |
189-1307 |
Screw 6-32 x 1/4 tap |
2 |
|
| 005 |
189-5015 |
Knob safety switch |
4 |
|
| 006 |
189-5049 |
Level safety switch tx |
2 |
|
| 007 |
189-5017 |
Spring safety switch |
4 |
|
| 008 |
189-5053 |
Uhs bumper (OBSOLETE) |
1 |
|
| 009 |
189-5009 |
Anti-kink spring |
1 |
|
| 010 |
999-0200 |
Bolt 1/2-13 x 1 1/4 hex head |
3 |
|
| 011 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 012 |
189-1318 |
8-32 X 1/2 Taptite Phillips |
4 |
|
| 014 |
189-1311 |
8-32 X 1/4 Phillips Taptite |
1 |
|
| 015 |
189-5002 |
Axle end caps |
1 |
|
| 016 |
189-5010 |
Handle grip foam (OBSOLETE) |
1 |
|
| 017 |
189-1317 |
Screw 14 x 1 1/2 type a |
2 |
|
| 018 |
189-5033 |
Handle tube |
1 |
|
| 020 |
189-2959 |
Clutch plate |
1 |
|
| 021 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
| 022 |
189-5025 |
Plated handle tube |
1 |
|
| 023 |
N/A |
Not available |
2 |
(Bushing) |
| 024 |
999-0234 |
Nut 3/8-16 acorn nickel plated |
1 |
|
| 025 |
189-5028 |
Extension rod welded |
1 |
|
| 026 |
189-5027 |
Heyco cam lever plug |
1 |
|
| 027 |
N/A |
Not available |
1 |
(Cam lever assembly) |
| 028 |
189-5004 |
42 inch female pigtail (OBSOLETE) |
2 |
|
| 029 |
217-0014 |
On/off switch |
1 |
|
| 030 |
N/A |
Not available |
1 |
(Brace lock) |
| 031 |
189-1323 |
Screw 5/16-18 x 5/16 set |
1 |
|
| 033 |
189-5052 |
Wheel axle plated |
1 |
|
| 034 |
189-2958 |
Screw 10-24 x 1/4 stainless steel |
1 |
|
| 035 |
189-5019 |
Painted handle brace |
1 |
|
| 036 |
189-5067 |
Axle Plated Brace |
1 |
|
| 037 |
189-5021 |
T-handle support paint |
1 |
|
| 038 |
189-5020 |
Plated axle shaft |
2 |
|
| 039 |
189-5063 |
2000 rpm uhs motor |
1 |
|
| 040 |
189-3039 |
Carbon brush (sold individually) |
4 |
|
| 041 |
189-3042 |
50 amp 60 cycle rectifier |
1 |
|
| 042 |
999-0964 |
Washer 5/16 x 3/4 flat stainless steel |
4 |
|
| 043 |
189-1305 |
Washer 5/16 spring lock |
4 |
|
| 044 |
189-1308 |
Bolt 5/16- 18 x 1 1/2 hex brass |
4 |
|
| 045 |
N/A |
Not available |
1 |
(Knob) |
| 046 |
189-2945 |
Chassis-poly UHS |
1 |
|
| 047 |
N/A |
Not available |
1 |
(Wheel stud) |
| 048 |
N/A |
Not available |
2 |
(Caster support) |
| 049 |
189-5059 |
Flexible drive assembly |
1 |
|
| 050 |
189-5053 |
Uhs bumper (OBSOLETE) |
1 |
|
| 051 |
189-1315 |
Cup washer |
1 |
|
| 052 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
1 |
|
| 053 |
991-2206 |
Center-Lok 3 pad holder |
1 |
|
| 054 |
189-1324 |
Screw 8 x 5/8 pan head set |
3 |
|
| 055 |
189-1301 |
Washer 1/4 large |
1 |
|
| 056 |
999-0487 |
Screw 1/4-20 x 3/4 pan head phillips zinc plated |
1 |
|
| 057 |
189-2942 |
UHS Chassis plug |
1 |
|
| 058 |
999-0566 |
Washer 1/2 flat nylon |
1 |
|
| 059 |
189-1321 |
Washer TW8 1/2 tension |
2 |
|
| 060 |
189-5005 |
Hitch pin (OBSOLETE) |
1 |
|
| 061 |
189-5001 |
5 inch wheel |
2 |
|
| 062 |
189-5029 |
Tapered sleeve (OBSOLETE) |
1 |
|
| 063 |
189-5002 |
Axle end caps |
1 |
|
| 064 |
189-5050 |
Lead wire meter |
1 |
|
| 065 |
189-5011 |
Wedge handle (OBSOLETE) |
1 |
|
| 066 |
189-1309 |
Nut 5/16-18 nylon locking |
2 |
|
| 067 |
189-1316 |
6-32 X 7/8 Phillips Taptite (OBSOLETE) |
2 |
|
| 069 |
189-5065 |
Switch box cover |
1 |
|
| 070 |
189-5066 |
Amp meter (OBSOLETE) |
1 |
|
| 071 |
189-5032 |
Switch insert |
1 |
|
| 072 |
189-1311 |
8-32 X 1/4 Phillips Taptite |
4 |
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
