Parts List Complete for BETCO BIG BERTHA

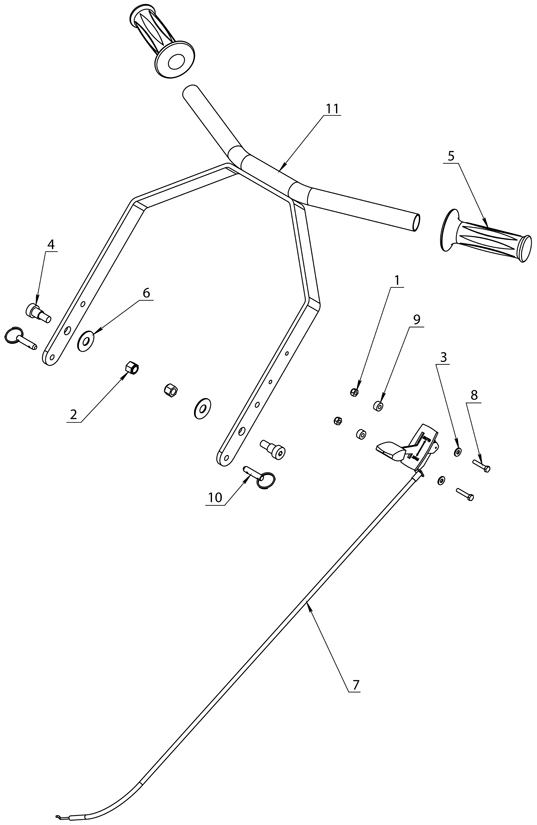

Handle Bar Assembly - 189-0221
RefNbr Part Number Description Req Notes
1 204-0062 Nut 2
2 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
3 189-0382 Washer #10 SAE flat zinc 2
4 189-3091 Screw 1/2 x 1/2 shoulder socket head 2
5 189-3083 Hand grip 2
6 189-3092 Washer 1/2 x 1 1/4 nylon 2
7 189-3082 38 inch throttle cable 1
8 189-3093 Screw 10-32 x 1 hex head zinc 2
9 189-3094 Nylon spacer 2
10 189-3095 Retaining pin with ring 2
11 189-3096 Handle bar weldment 1

Lower Handle Assembly - 189-0222
RefNbr Part Number Description Req Notes
1 204-0062 Nut 4
2 189-5162 Felt (sold by the foot) 2
3 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 1
4 204-0122 Tank pad 1
5 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
6 273-5693 Hose clamp 1
7 189-3085 Tank strap latch 1
8 204-0077 Washer flat 4
9 999-0423 Nut 5/16-18 nylon insert lock stainless steel 10
10 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 4
11 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 6
12 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 4
13 189-3086 Hour meter 1
14 189-3084 Tank strap 1
15 189-3093 Screw 10-32 x 1 hex head zinc 8
16 189-0386 Battery cover 1
17 189-3107 Propane tank shelf 1
18 189-0387 Left hand lower handle leg 1
19 189-0388 Right hand lower handle leg 1
20 189-0389 Front propane tank strap 1

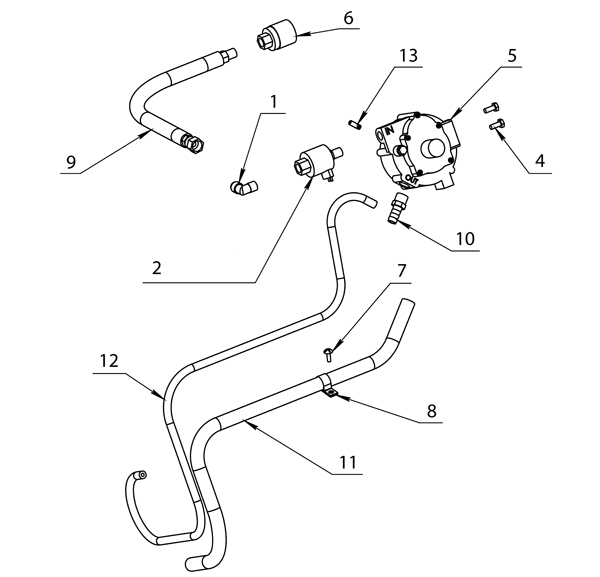

Regulator Assembly - 189-0223
RefNbr Part Number Description Req Notes
1 189-0390 90 degree elbow fitting 1
2a 991-6002 12V fuel lock off (Model 152) 1
2b 189-5642 12V fuel lock off 1
4 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
5 189-6194 Fuel regulator (Model 60E) 1
6 204-0110 Tank coupling 1
7 189-0392 Screw #10 x 5/8 pan head phillips 1
8 273-5693 Hose clamp 1
9 204-0032 Hose 1
10 189-0393 Fitting 3/8 MNPT x 1/2 barb 1
11 189-0394 Fuel hose 1
12 189-0395 Vacuum hose (Sold by foot) 1
13 189-0396 Fitting 1/4-28 brass 1

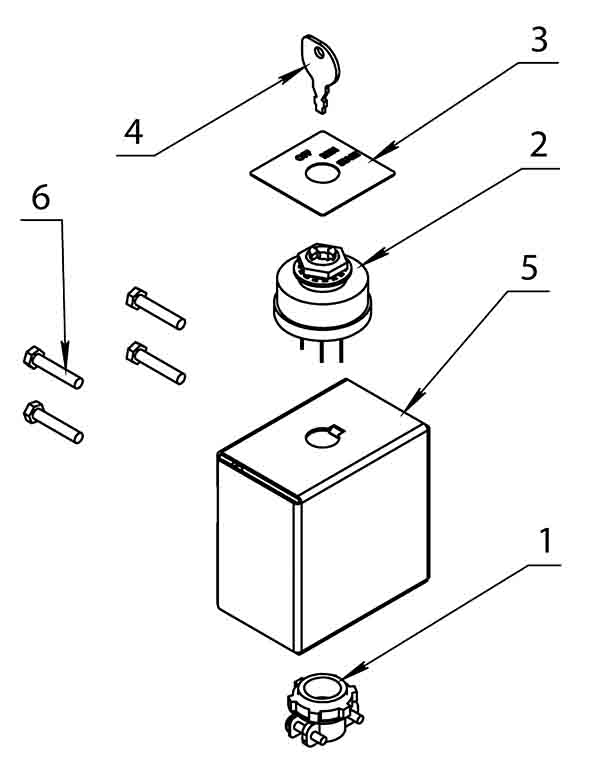

12V Starter Switch Assembly - 189-0224
RefNbr Part Number Description Req Notes
1 189-0397 Wire clamp 1
2 169-0016 Key switch assembly with two keys 1
3 189-0699 Decal 1
4 189-9275 Key (pkg of 2) 1
5 189-0701 Key switch box 1
6 189-3093 Screw 10-32 x 1 hex head zinc 4

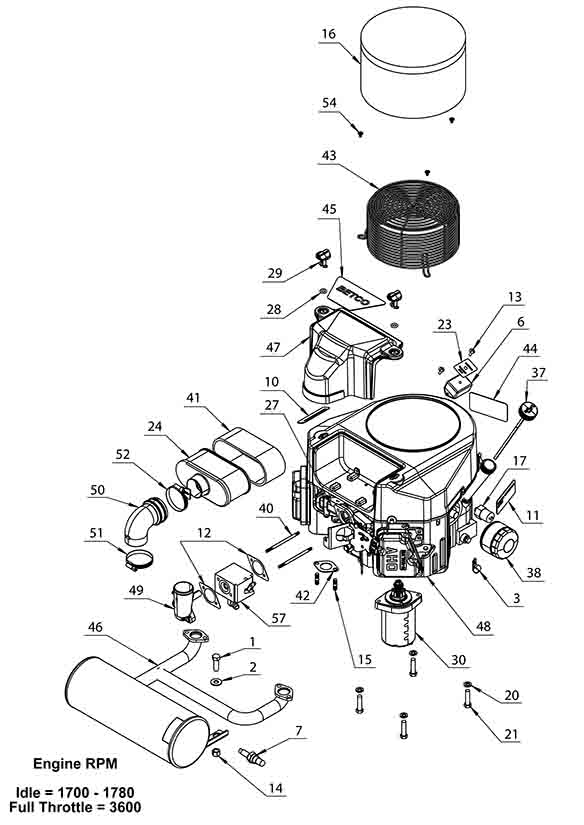

Kawasaki Engine Assembly - 189-0225
RefNbr Part Number Description Req Notes
1 204-0071 Bolt 1
2 999-0120 Washer 3/8 SAE flat 1
3 189-8452 J clip stamped hook 1
6 189-8544 Emissions shutdown module with oxygen sensor 1
7 189-8544 Emissions shutdown module with oxygen sensor 1
10 189-5146 Decal 1
11 189-5150 Oil pressure switch decal 1
12 178-0042 Carb intake gasket 2
13 189-0392 Screw #10 x 5/8 pan head phillips 2
14 189-5147 Nut 1
15 178-0036 Exhaust stud bolt 4
16 204-0162 Dust bonnet 1
17 189-8542 Oil pressure switch with 2 prongs 1
20 999-0034 Washer 3/8 split lock plain finish 4
21 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel 4
22 154-0042 Oil drain valve kit 1
23 189-5152 Propane emission decal 1
24 178-0256 Air filter 1
27 178-0280 Intake manifold 1
28 178-0278 O-ring 2
29 178-0277 Thumb nut 2
30 178-7106 Electric starter 1
37 189-3090 Oil dipstick 1
38 178-0254 Oil filter 1
39 178-0016 O-ring 1
40 178-0284 Stud bolt 2
41 178-0255 Air pre-filter 1
42 178-0257 Gasket 2
43 189-5144 Air intake guard 1
44 189-5151 Emission decal 1
45 189-5145 Betco decal 1
46 189-3087 Catalytic muffler and manifold assembly 1
47 178-0279 Air filter case 1
48 189-5149 Kawasaki FS481V engine 1
49 189-5157 Intake pipe 1
50 178-0282 Hose 1
51 178-0283 Hose clamp 1
52 178-0281 Hose clamp 1
53 178-0265 Voltage regulator 1
54 189-5143 Screw 3
57 189-3217 120V vacuum motor assembly 1
N/S 189-8544 Emissions shutdown module with oxygen sensor 1
N/S 189-5153 M-18 steel plug 1
N/S 178-0032 Valve stem seal 4
N/S 189-5154 Clutch decal 1
N/S 178-0043 Top oil seal (upper crankshaft - Kawasaki) 1
N/S 166-0008 Spark plug (Kawasaki FS481V) 2
N/S 178-0264 Ignition coil assembly Kawasaki FS481V 2
N/S 991-7143 Ignition coil assembly 2
N/S 178-0261 Cylinder head gasket (FS481V engine only) 2
N/S 189-7667 FS481V cylinder head #1 assembly 1
N/S 189-7647 FS481V cylinder head #2 assembly 1
N/S 178-0262 Rocker case gasket 2
N/S 178-0270 Intake valve 2
N/S 178-0269 Exhaust valve 2
N/S 189-4387 Kawasaki FS481V engine with emission kit 1 (includes 189-8544)
N/S 189-7568 Kawasaki FS481V engine 1

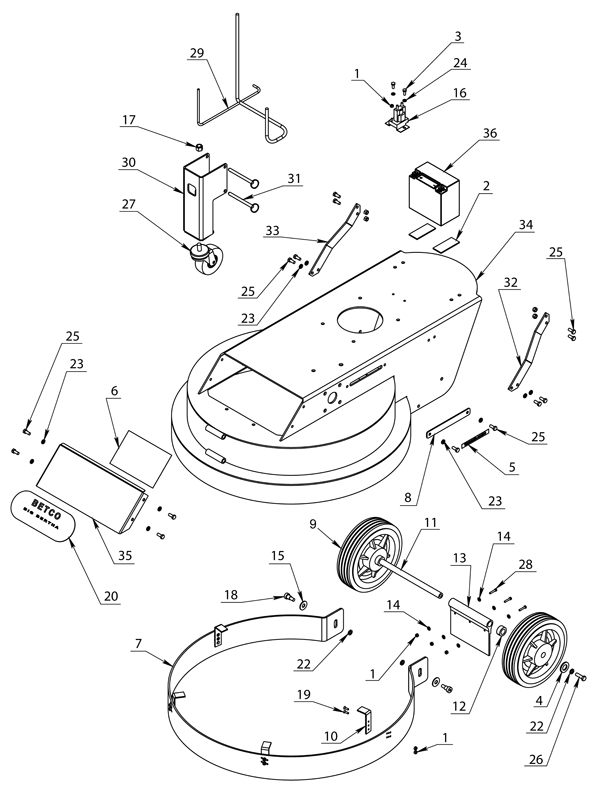

Deck Assembly - 189-0226
RefNbr Part Number Description Req Notes
1 204-0062 Nut 12
2 189-5162 Felt (sold by the foot) 2
3 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
4 999-0630 Washer 3/4 SAE flat 2
5 189-7668 Tensioner access decal 1
6 189-7669 Belt path decal 1
7 189-4391 Splash skirt 1
8 189-7670 Access cover 1
9 189-7671 Wheel 2
10 189-7672 Skirt hanger 4
11 189-7673 Wheel axle 1
12 189-7674 Shaft collar 2
13 189-7675 Rubber splash guard 1
14 189-0382 Washer #10 SAE flat zinc 6
15 999-1959 Screw 10-32 x 5/8 flat head phillips zinc 2
16 204-0120 12V solenoid 1
17 999-0118 Nut 1/2-13 nylon insert lock zinc plated 1
18 189-3091 Screw 1/2 x 1/2 shoulder socket head 2
19 999-1959 Screw 10-32 x 5/8 flat head phillips zinc 8
20 189-7676 Big Bertha decal 1
22 999-0034 Washer 3/8 split lock plain finish 4
23 999-0028 Washer 5/16 split lock plain finish 10
24 999-1049 Washer 1/4 split lock zinc plated 2
25 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 14
26 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 2
28 189-3093 Screw 10-32 x 1 hex head zinc 3
29 189-7555 Wiring harness 1
30 189-7615 Transport wheel bracket 1
31 189-4733 Pin 2
32 189-7678 Left hand handle support 1
33 189-7679 Right hand handle support 1
34 189-7680 30 inch strip machine deck 1
35 189-7681 Front access panel 1
36 162-0007 12V 12Ah sealed battery 1
N/S 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4

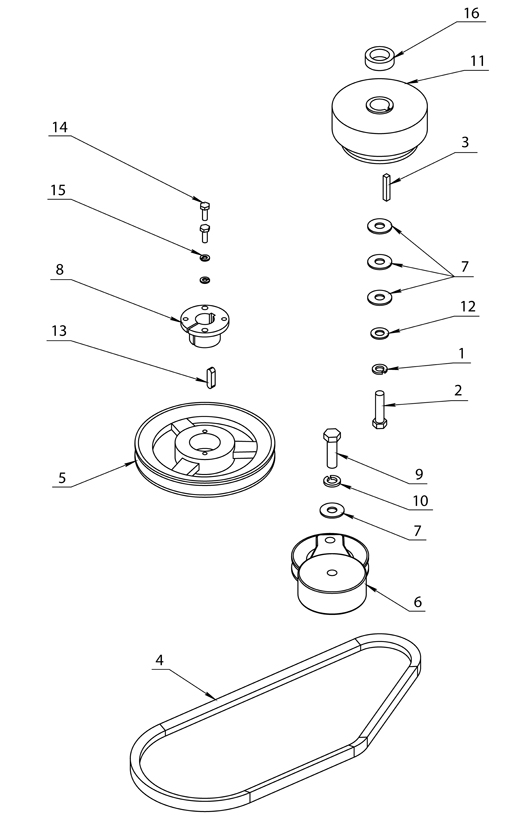

Main Drive Assembly - 189-0227
RefNbr Part Number Description Req Notes
1 204-0070 Washer lock 1
2 189-2203 Bolt 1
3 189-8755 Square keyway 1
4 991-0024 B44 belt 1
5 189-7682 Pulley bushing 1
6 189-7683 Rotary tensioner 1
7 999-0328 Washer 7/16 USS flat 4
8 189-8066 Bushing 1
9 204-0084 Bolt 1
10 204-0080 Washer lock 1
11 189-9286 Centrifugal clutch 1
12 999-0328 Washer 7/16 USS flat 1
13 204-0019 Key Stock 1
14 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 2
15 999-1049 Washer 1/4 split lock zinc plated 2
16 189-7684 Stripper clutch top spacer 1

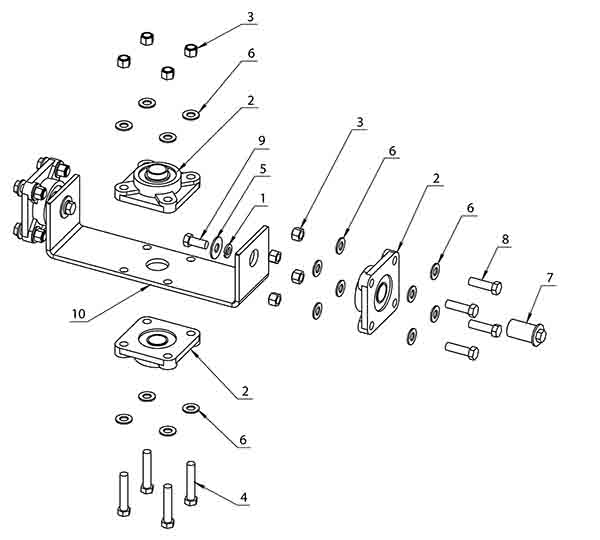

Pivot Bracket Assembly - 189-0228
RefNbr Part Number Description Req Notes
1 204-0070 Washer lock 2
2 189-7685 Flange bushing 4
3 189-5147 Nut 12
4 999-1960 Screw 7/16-14 x 2 1/4 hex head zinc 4
5 999-0328 Washer 7/16 USS flat 2
6 999-0328 Washer 7/16 USS flat 24
7 189-7686 Pivot axle 2
8 999-1961 Screw 7/16-14 x 1 1/2 hex head zinc 8
9 999-1962 Screw 7/16-14 x 1 hex head zinc 2
10 189-7687 Pivot bracket 1

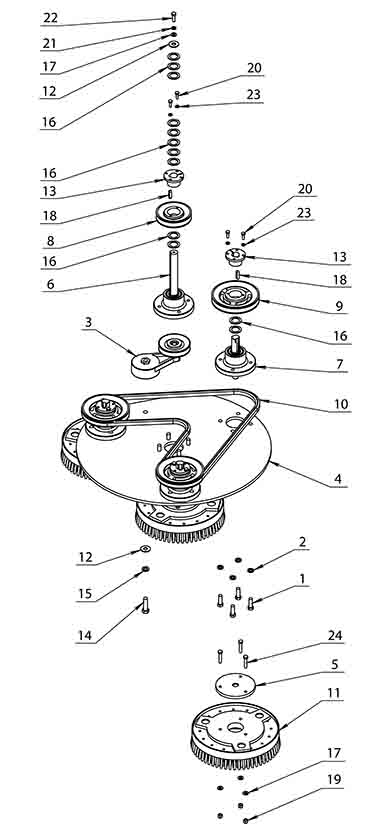

Brush Plate Assembly - 189-0229
RefNbr Part Number Description Req Notes
1 204-0071 Bolt 16
2 204-0070 Washer lock 16
3 189-7689 Large belt tensioner 1
4 189-7688 30 inch brush mounting plate 1
5 189-7690 Threaded mounting plate 3
6 189-7691 Stripper center drive hub assembly 1
7 189-7692 Stripper brush drive hub assembly 3
8 189-7693 Pulley bushing BK47QT 1
9 189-7694 Pulley bushing BK62QT 3
10 189-4374 BB77 belt 1
11 189-4375 11 inch stripping brush 3
12 999-0328 Washer 7/16 USS flat 2
13 189-8066 Bushing 4
14 204-0084 Bolt 1
15 204-0080 Washer lock 1
16 999-1963 Washer 1 x 1 1/2 14 gauge zinc 16
17 999-1964 Washer 5/16 SAE flat zinc 10
18 204-0019 Key Stock 4
19 999-0423 Nut 5/16-18 nylon insert lock stainless steel 9
20 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 8
21 999-0028 Washer 5/16 split lock plain finish 1
22 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 1
23 999-1049 Washer 1/4 split lock zinc plated 8
24 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel 9

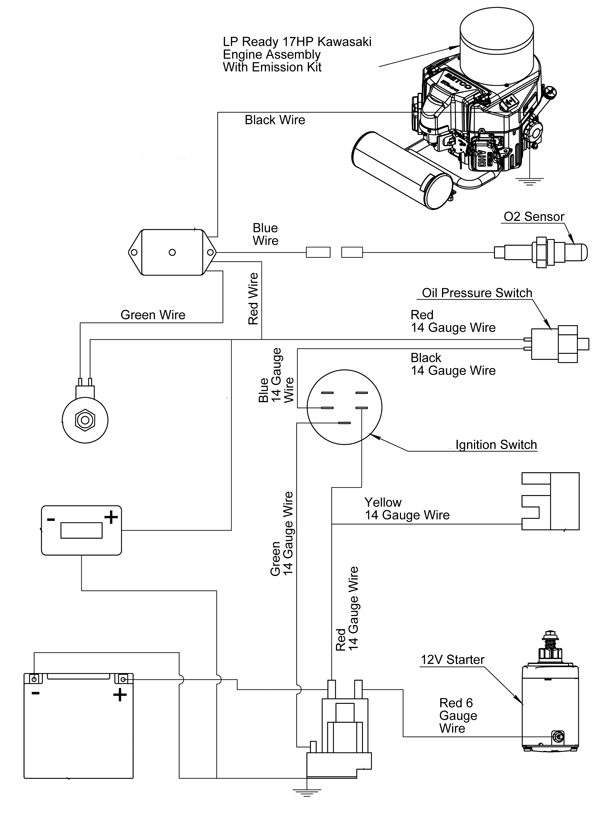

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Commonly Asked For Parts - 189-9974
RefNbr Part Number Description Req Notes
01 189-4374 BB77 belt
02 189-4381 Pivot base assembly
03 189-4382 Thrust washer
04 189-4383 Bearing block
05 189-7615 Transport wheel bracket
06 189-3082 38 inch throttle cable
07 189-4392 29 inch squeegee blade kit
08 189-4391 Splash skirt
09 189-4375 11 inch stripping brush
10 189-4733 Pin
11 189-4733 Pin

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
