Parts List Complete for BETCO AS30

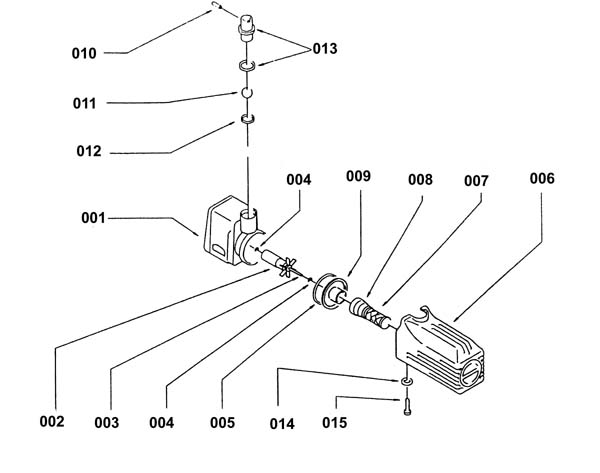

Pump - 189-0063
RefNbr Part Number Description Req Notes
001 189-0179 Pump 1
002 189-0400 Body 1
003 189-0401 Rotor 1
004 189-0402 Pin 1
005 189-0403 Support 2
006 189-0404 Gasket 1
007 189-0405 Holder 1
008 189-0183 Pump filter 1
009 189-0406 Connector 1
010 189-0407 Lock 1
011 189-0408 Pin 1
012 189-0180 Ball 1
013 189-0181 Gasket 1
014 189-0182 Nozzle 1
015 203-0235 Washer 1
016 189-1451 Screw 1

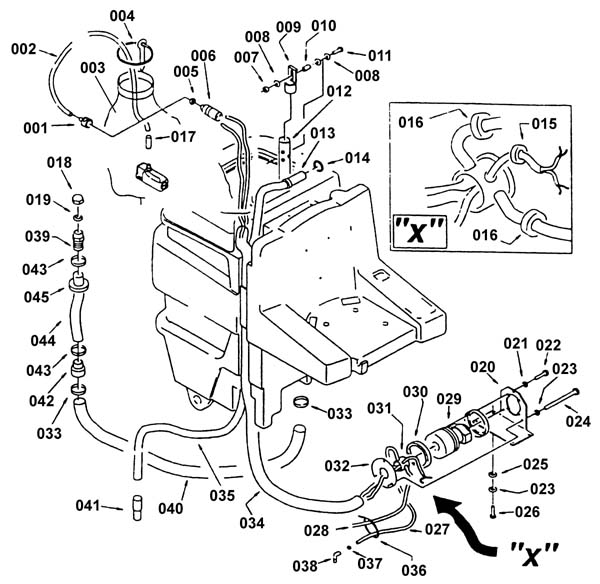

Tank - 189-0064
RefNbr Part Number Description Req Notes
001 189-0245 Coupling 1
002 189-0671 Hose 1
003 189-0672 Diaphragm bag 1
004 189-0673 Frame 1
005 189-0674 Gasket 1
006 189-0675 Coupling / clutch 1
007 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
008 189-0897 Washer D8 2
009 189-0676 Plate for drain pipe 1
010 189-0677 Spacer 1
011 189-1344 Screw M8 1
012 189-0678 Drain pipe 1
013 189-0679 Sleeve 1
014 189-0680 Gasket 1
015 189-0689 Connector 1
016 189-0697 Fairlead 2
017 189-0696 Sheath 1
018 189-0695 Cap 1
019 189-0694 Gasket 1
020 189-0681 Support 1
021 189-1345 Washer d10 cham 4
022 189-1346 Screw 4
023 189-1347 Washer 7
024 189-1348 Screw 3
025 189-1345 Washer d10 cham 4
026 999-0924 Bolt 3/8-16 x 6-15/16 turned eye zinc plated 4
027 991-1401 Clear vinyl tubing (sold by the inch) 104 in
028 991-1401 Clear vinyl tubing (sold by the inch) 102 in
029 189-0684 Vacuum motor 1
030 189-0185 Gasket 2
031 189-0685 Connector 1
032 189-0686 Flange 1
033 189-0687 Clamp 2
034 189-0688 Spring hose 1
035 189-0023 Squeegee vac hose 1
036 189-0084 Clamp 2
037 189-0141 Clamp 10-16 inch 2
038 189-0142 Union/connector 2
039 189-0693 Hose holder 1
040 189-0024 Recovery drain hose 1
041 189-0118 Sleeve 1
042 189-0689 Connector 1
043 189-0690 Clamp 2
044 189-0691 Drain hose sheath 1
045 189-0692 Drain hose adapter 1

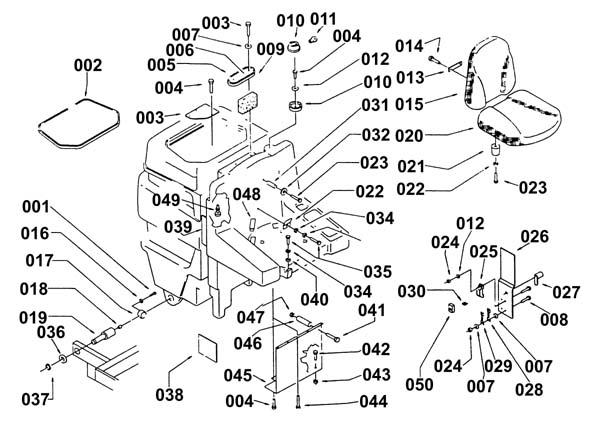

Tank Accessories - 189-0065
RefNbr Part Number Description Req Notes
001 189-1364 Screw 1
002 189-0649 Gasket 1
003 189-0650 Lid 1
004 189-1350 Screw 11
005 217-0014 On/off switch 1
006 189-0651 Lid 1
007 203-0145 Washer 4-16 inch 6
008 189-1352 Screw 6
009 189-0652 Filter 1
010 189-0053 Battery bearing surface 1
011 189-0654 Bulb 1
012 189-1353 Washer D5 3
013 189-0655 Plate 1
014 189-1365 Seat screw 1
015 189-0656 Seat back 1
016 189-1363 Washer 1
017 189-0670 Support 1
018 189-0095 Bushing 2
019 189-0669 Pin 2
020 189-0657 Seat 1
021 189-0574 Plug / Stopper 4
022 189-1345 Washer d10 cham 4
023 189-1354 Turned eye screw 6
024 189-1355 Nut 4
025 189-0659 Fuse holders 1
026 189-0660 Lid 1
027 189-0661 Lock 1
028 189-0247 100amp fuse 1
029 189-0456 75amp fuse 1
030a 189-0107 5 amp fuse 4
030b 189-0108 Fuse 1
030c 189-0463 Fuse 1
031 189-0663 Spacer 2
032 189-1356 Washer 6-18 inch 2
033 189-0662 Plate 1
034 189-1347 Washer 1
035 189-1357 Screw 6 x 12 inch 2
036 189-1362 Washer 2
037 189-0668 Ring 2
038 189-0667 Panel 1
039 189-0666 Reinforcement 1
040 189-1356 Washer 6-18 inch 1
041 189-1359 Screw 1
042 189-1360 Screw 1
043 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
044 189-1346 Screw 5
045 189-0664 Plate 1
046 189-0454 Spacer 1
047 189-1361 Nut 1
048 189-0665 Terminal 2
049 189-0243 Float switch 1
050 189-0462 Lid 1

Steering Column - 189-0066
RefNbr Part Number Description Req Notes
001 189-0635 Cap 1
002 189-1358 Nut 1
003 189-1366 Washer D14 1
004 189-0636 Steering wheel 1
005 189-0637 Knob steering wheel 1
006 189-0638 Cap 1
007 189-0639 Shaft 1
008 189-0153 Tang-tongue 1
009 189-0502 Label 1
010 189-0465 Bearing 3
011 189-0641 Spacer 2
012 189-1367 Screw 2
013 189-1363 Washer 7
015 189-0642 Protective cover 1
016 189-1369 Washer cham 4
017 189-1370 Screw 4
018 189-1371 Washer 1
019 189-4029 Brush 18 inch 1
020 189-0643 Tongue 1
021 189-0644 Pinion 1
022 189-0633 Split pin (OBSOLETE) 1
023 189-0645 Ring 2
024 189-1372 Washer 2
025 189-0646 Lever 1
026 189-0648 Lock 1
027 189-0647 Shaft 1

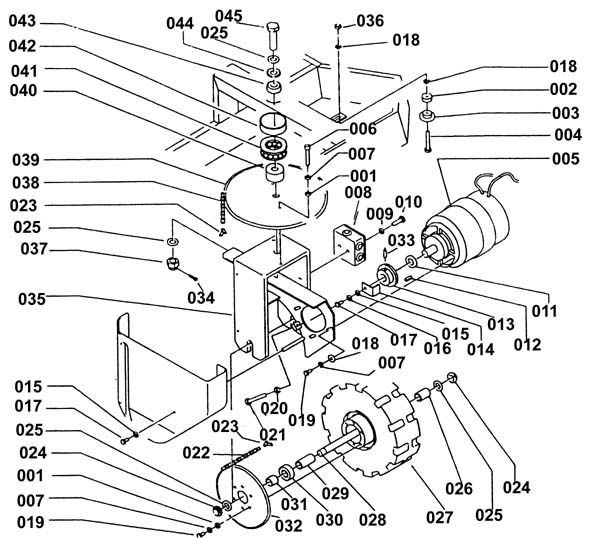

Wheel Assembly - 189-0067
RefNbr Part Number Description Req Notes
001 189-1363 Washer 14
002 189-0609 Spacer 1
003 189-0610 Chain tightener 1
004 189-1373 Screw 8 x 45 inch 1
005 189-0611 Traction motor 1
006 189-1374 Screw 2
007 189-1369 Washer cham 12
008 189-0612 Electric housing (OBSOLETE) 1
009 189-1375 Washer D4 2
010 189-1376 Screw 4 x 10 inch 2
011 189-1377 Washer 1
012 189-0153 Tang-tongue 1
013 189-0613 Pinion 1
014 189-0614 Plate 1
015 189-1345 Washer d10 cham 4
016 189-1347 Washer 1
017 189-1424 Screw 3
018 189-1378 Washer 5
019 189-1367 Screw 10
020 189-1379 Nut M8 1
021 189-1370 Screw 1
022 189-0615 Traction chain 1
023 189-0616 Chain link 2
024 189-1380 Nut 2
025 189-1381 Washer 4
026 189-0617 Spacer 1
027 189-0618 Driver wheel 1
028 189-0619 Pin 1
029 189-0620 Spacer 1
030 189-0621 Bearing 1
031 189-0622 Spacer 1
032 189-0623 Crown 1
033 189-0633 Split pin (OBSOLETE) 1
034 189-0632 Split pin 1
035 189-0624 Fork 1
037 189-1382 Nut 1
038 189-0625 Steering chain 1
039 189-0626 Crown 1
040 189-0627 Spacer 1
041 189-0628 Bearing 1
042 189-0629 Guard 1
044 189-0631 Ring 1
045 189-1383 Screw 1
N/S 189-0634 Motor drum 1

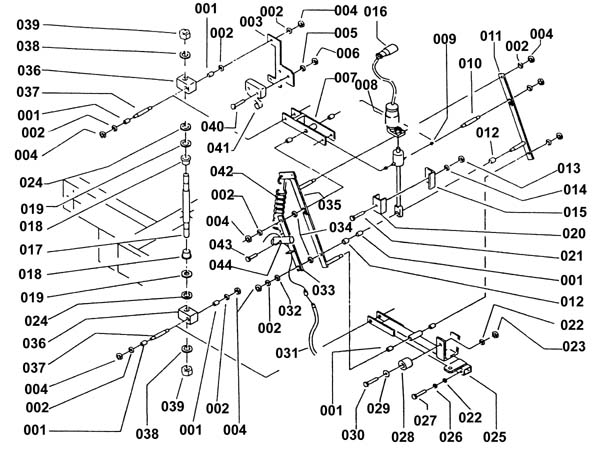

Rear Head Lift - 189-0068
RefNbr Part Number Description Req Notes
001 189-0539 Bearing 9
002 189-1363 Washer 10
003 189-0592 Support 1
004 999-0471 Nut M8-1.25 nylon insert lock zinc plated 10
005 189-1375 Washer D4 2
006 189-1384 Nut M4 2
007 189-0593 Lever 1
008 189-0570 Actuator 1
009 189-0569 Bearing 2
010 189-0595 Pin 1
011 189-0596 Lever 1
012 189-0597 Spacer 2
013 189-1385 Nut 1
014 189-1386 Washer 1
015 189-0598 Support 1
016 189-0594 Wiring unit 1
017 189-0608 Pin 1
018 189-0465 Bearing 2
019 189-1372 Washer 2
020 189-0599 Spacer 1
021 189-1387 Screw 1
022 189-1345 Washer d10 cham 3
023 189-1385 Nut 1
024 189-1381 Washer 2
025 189-0500 Handle 1
026 189-1347 Washer 2
027 189-1390 Screw 2
028 189-0574 Plug / Stopper 1
029 189-1391 Washer D6 1
030 189-1392 Screw 1
031 189-0472 Cable 1
032 189-1393 Washer 1
033 189-0602 Plate 1
034 189-1394 Washer D13 2
035 189-0603 Plate 1
036 189-0607 Block / Lock 2
037 189-0600 Lever 2
038 189-1366 Washer D14 2
039 189-1358 Nut 2
040 189-5021 T-handle support paint 2
041 203-1754 Microswitch 1
042 189-0604 Spring (OBSOLETE) 2
043 189-1357 Screw 6 x 12 inch 1
044 189-0605 Pin 1

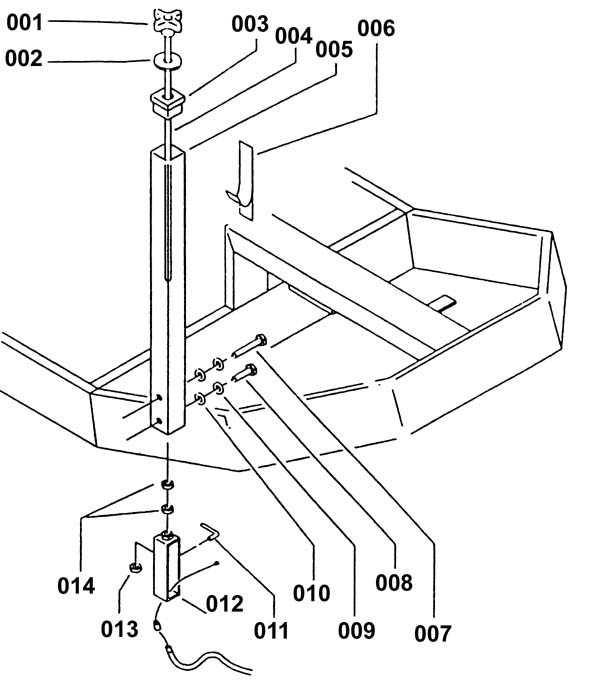

Front Head Lift - 189-0069
RefNbr Part Number Description Req Notes
001 189-0187 Knob 2
002 189-1449 Washer D10 1
003 189-0409 Cap 2
004 189-0410 Bar 2
005 189-0411 Structural 1
006 189-0412 Adesive label 1
007 189-1450 Screw 2
008 189-1367 Screw 1
009 189-1369 Washer cham 2
010 189-1363 Washer 1
011 189-0413 Indicator 1
012 189-0414 Plate 1
014 189-1379 Nut M8 2

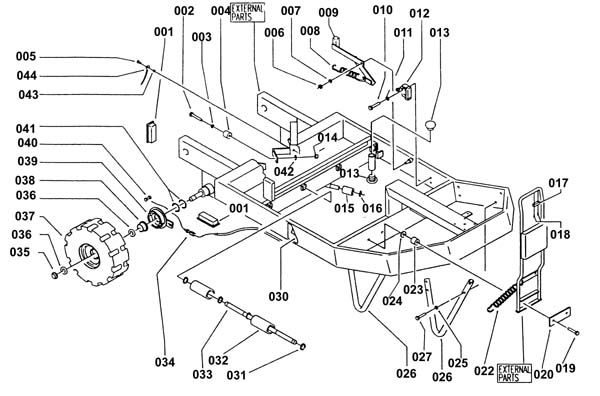

Frame - 189-0070
RefNbr Part Number Description Req Notes
001 189-0573 Terminal 4
002 189-1392 Screw 2
003 189-1391 Washer D6 2
004 189-0574 Plug / Stopper 2
005 999-0924 Bolt 3/8-16 x 6-15/16 turned eye zinc plated 1
007 189-1363 Washer 1
008 189-0575 Spring 1
009 189-0576 Lever 1
010 189-1395 Screw 2
011 189-1375 Washer D4 2
012 203-1754 Microswitch 1
013 189-0577 Plug 6
014 189-1361 Nut 2
015 189-0578 Roller 1
016 189-0579 Seeger 1
017 189-0580 Connection 1
018 189-1396 Screw 2
019 189-1397 Screw 2
020 189-0581 Plate 1
022 189-0582 Spring 2
023 189-0583 Spacer 2
024 189-1398 Washer 6 x 24 inch 2
025 189-1369 Washer cham 8
026 189-0584 Hose 2
027 189-1399 Screw M8 zinc 8
028 189-1400 Washer 1
029 189-1401 Screw 1
030 189-0585 Label 1
031 189-0149 Ring 16
032 189-0586 Roller 8
033 189-0587 Pin 4
034 189-0415 Register 2
035 189-1380 Nut 2
036 189-1381 Washer 4
037 189-0588 Rear wheel rubber 2
038 189-0589 Bushing 2
039 189-0590 Block 2
040 173-2292 1.5 hole snap bushing 2
041 189-1402 Washer 4
042 189-1345 Washer d10 cham 2
043 189-1403 Washer D8 1
044 189-0591 Cable 1

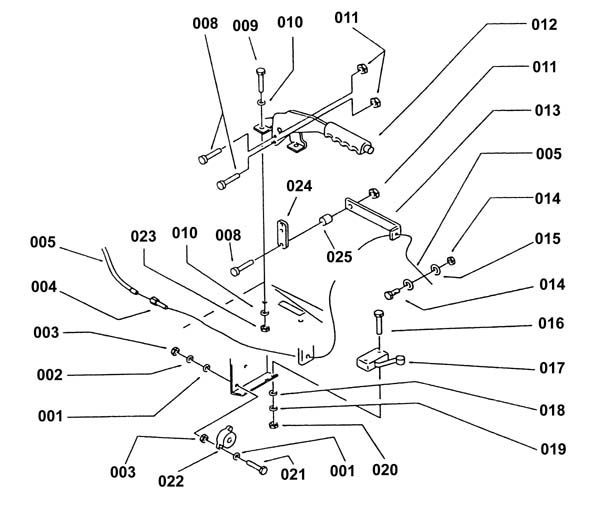

Hand Brake - 189-0071
RefNbr Part Number Description Req Notes
001 189-1441 Washer 4
002 189-1426 Washer 2
003 189-1425 Nut 4
004 189-0415 Register 1
005 189-0416 Cable 1
008 189-1367 Screw 3
009 189-1390 Screw 2
010 189-1345 Washer d10 cham 4
012 173-1821 Hose clamp 1
013 189-0417 Small bracket 1
014 189-0418 Clamp 1
015 189-1405 Washer 2
016 189-1448 Screw 2
017 203-1754 Microswitch 1
018 189-1375 Washer D4 2
019 189-1433 Washer 2
020 189-1355 Nut 2
021 189-1427 Screw 2
022 189-0420 Indicator 1
023 189-1361 Nut 2
024 189-0421 Block/Lock 1
025 189-0641 Spacer 1

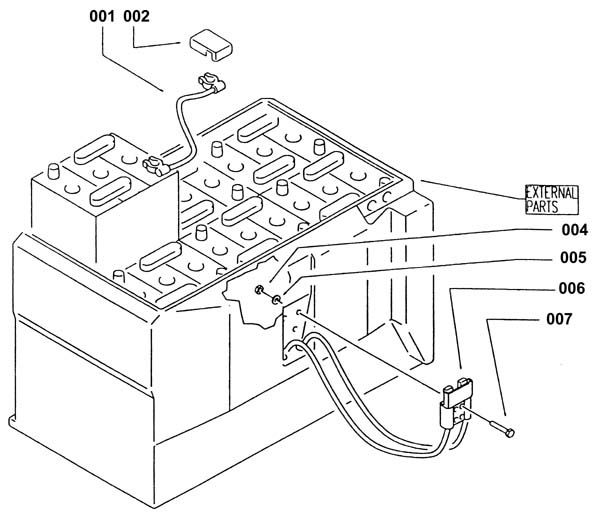

Battery Box - 189-0072
RefNbr Part Number Description Req Notes
001 189-0743 Bridge / Jumper 5
002 189-0742 Terminal cable covers 2
004 189-1361 Nut 4
005 189-1345 Washer d10 cham 4
006 189-0423 Wiring (OBSOLETE) 1
007 189-1354 Turned eye screw 4

Head Exit - 189-0073
RefNbr Part Number Description Req Notes
001 189-1358 Nut 1
002 189-1366 Washer D14 1
003 189-0465 Bearing 2
004 189-0554 Spring 1
005 189-0555 Bumper 1
006 189-0223 Rubber shim 5
007 189-1378 Washer 4
008 189-1404 Screw M8 1
009 189-1396 Screw 6
010 189-1345 Washer d10 cham 7
011 189-1347 Washer 1
012 999-0924 Bolt 3/8-16 x 6-15/16 turned eye zinc plated 1
013 189-0556 Spring 1
014 189-0557 Label 1
015 189-1361 Nut 8
016 189-1407 Screw 1
017 189-0572 Pivot pin 1
018 189-1363 Washer 1
019 189-0571 Crank 1
020 189-0558 Spring 1
021 189-0559 Strip / Band 1
022 189-1365 Seat screw 4
023 189-0560 Plate 2
024 189-0561 Roller 1
025 203-0522 Handle 1
026 189-0562 Lever 1
027 189-0563 Lever 1
028 189-1405 Washer 3
029 189-1394 Washer D13 4
031 189-1406 Screw 8
032 189-0564 Strip / Band 1
033 189-0565 Flap 1
034 189-0566 Support 1
035 203-0145 Washer 4-16 inch 8
036 189-0570 Actuator 1
037 189-0059 Spacer 1
038 999-0469 Nut M6-1 nylon insert lock zinc plated 1
039 189-0569 Bearing 2
040 189-1384 Nut M4 8
041 189-0567 Plate 1
042 189-1392 Screw 2
043 189-0234 Spacer 1
044 189-0568 Lever 1

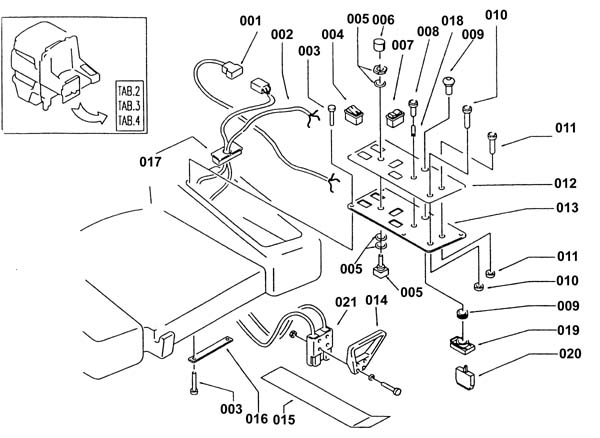

Electric Unit 1 - 189-0074
RefNbr Part Number Description Req Notes
001 189-0424 Control panel unit 1
002 189-0425 Wiring unit 1
003 189-1346 Screw 10
004 203-0698 Lighted switch 2
005 189-0259 Potentiometer (OBSOLETE) 1
006 189-0260 Knob 1
007 189-0427 Push-button 2
008 189-0102 Reflector 1
009 189-0172 Operator 1
010a 189-0431 Pilot light 1
010b 189-0432 Reflector 1
010c 189-0433 Switch 1
010d 189-0434 Reflector 1
011a 189-0745 Pilot light 1
011c 189-0437 Push-button 1
012 189-0438 Control panel decal 1
013 173-2264 Splash guard retainer 1
014 189-0440 Handle plug anderson 1
014 189-0895 Guard 1
015 189-0442 Plate 1
016 189-0443 Support 3
017 189-0444 Terminal 1
018 189-0263 Lamp 1
019 189-0264 Key switch complete 1
020 189-0264 Key switch complete 2
021 189-0441 Anderson plug 1
N/S 189-0430 Push-button 1

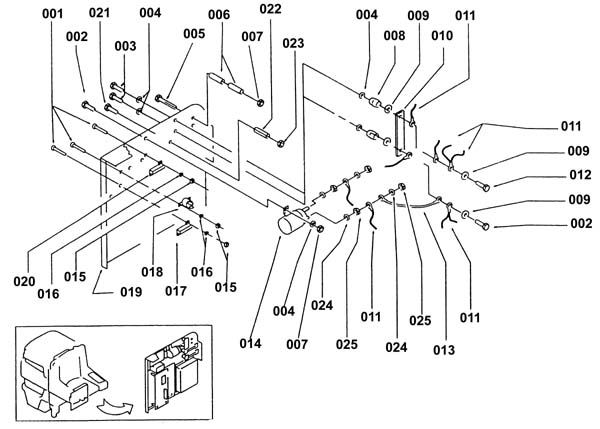

Electric Unit 2 - 189-0075
RefNbr Part Number Description Req Notes
001 189-1317 Screw 14 x 1 1/2 type a 12
002 189-1442 Screw M6 zinc 3
003 999-0924 Bolt 3/8-16 x 6-15/16 turned eye zinc plated 2
004 189-1345 Washer d10 cham 6
005 189-1359 Screw 2
006 189-0445 Spacer 4
007 999-0469 Nut M6-1 nylon insert lock zinc plated 4
008 189-0446 Insulator 2
009 189-1356 Washer 6-18 inch 4
010 189-0447 Bridge/jumper 1
011 189-0245 Coupling 1
012 189-1445 Turned eye screw 1
013 189-2105 Clamp style jumper cable (black) 1
014 189-0449 Teleswitch 1
015 189-1446 Nut M3 12
016 189-1441 Washer 12
017 189-0450 Resistance 1
018 189-0451 Thermostat 2
019 189-0452 Plate 1
020 189-0453 Resistor 1
021 189-1447 Screw 1
022 189-0454 Spacer 1
023 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
024 189-1369 Washer cham 4
025 189-1379 Nut M8 4

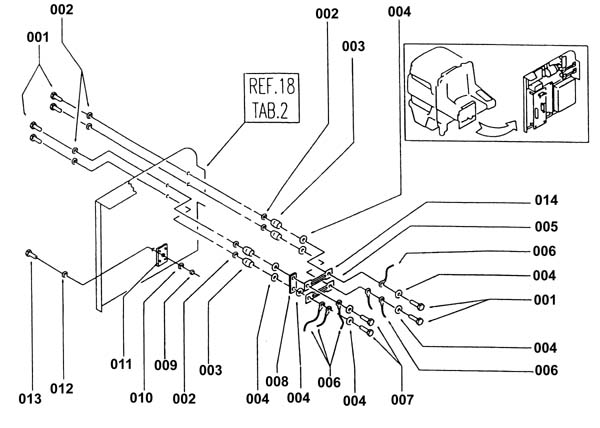

Electric Unit 3 - 189-0076
RefNbr Part Number Description Req Notes
001 189-1442 Screw M6 zinc 6
002 189-1345 Washer d10 cham 8
003 189-0446 Insulator 4
004 189-1356 Washer 6-18 inch 9
005 189-0247 100amp fuse 1
006 189-0425 Wiring unit 1
007 189-1357 Screw 6 x 12 inch 2
008 189-0447 Bridge/jumper 1
009 189-1384 Nut M4 1
010 189-1375 Washer D4 1
011 189-0455 Bridge / Jumper 1
012 203-0235 Washer 1
013 189-1444 Screw 1
014 189-0456 75amp fuse 1

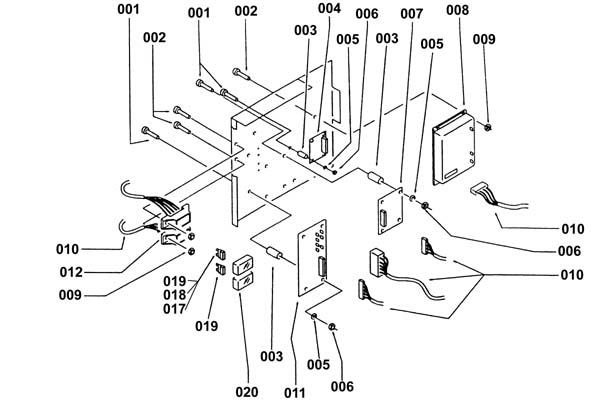

Electric Unit 4 - 189-0077
RefNbr Part Number Description Req Notes
001 189-1427 Screw 12
002 189-1440 Screw 8
003 189-0457 Spacer 12
004 189-0458 Gearcase / board 1
005 189-1441 Washer 12
006 189-1425 Nut 12
007 189-0459 Auxiliar Card for Rhino Uno 1
008 189-0460 Traction card 1
009 189-1384 Nut M4 8
010 189-0425 Wiring unit 2
011 189-0461 Pump card 1
012 189-0256 Fuse carrier 2
017 189-0108 Fuse 1
018 189-0463 Fuse 1
019 189-0107 5 amp fuse 1
020 189-0462 Lid 2

Squeegee Pedal - 189-0078
RefNbr Part Number Description Req Notes
001 189-0464 Plate (OBSOLETE) 1
002 189-0465 Bearing 1
003 189-1392 Screw 1
004 189-1345 Washer d10 cham 2
005 189-0466 Spacer 1
006 189-0467 Lever 1
007 189-1460 Washer 1
008 189-0233 Rubber shim 1
009 189-0468 Threadle 1
010 203-0524 Nut M6 lock 1
011 189-0469 Block (OBSOLETE) 1
012 189-1386 Washer 2
013 189-1346 Screw 2
014 189-0470 Rubber 1
015 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
016 189-0273 Bearing 1
020 189-1363 Washer 3
021 189-1393 Washer 1
022 189-0471 Plate 1
023 189-1369 Washer cham 2
024 189-1439 Screw 2
025 189-0472 Cable 1

Squeegee Lift - 189-0079
RefNbr Part Number Description Req Notes
001 189-1357 Screw 6 x 12 inch 1
002 189-1341 Washer 8 black nylon 1
003 189-1408 Washer 1
004 999-0924 Bolt 3/8-16 x 6-15/16 turned eye zinc plated 1
005 189-1410 Washer D8 zinc 1
006 189-0273 Bearing 2
007 189-1411 Screw 2
008 189-0537 Spring 1
009 189-0538 Clip 1
010 189-0539 Bearing 2
011 189-1412 Screw 1
012 189-1405 Washer 2
013 189-0540 Spring 2
014 203-2442 Hooking 1
015 189-1413 Nut M12 1
016 189-0187 Knob 2
017 189-0553 Fairlead 1
018 189-0415 Register 1
019 189-0552 Support (OBSOLETE) 1
020 189-1414 Washer D12 2
021 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
022 189-1363 Washer 6
023 189-0547 Spring 1
024 189-0543 Lever 1
025 189-1415 Nut 1
026 189-1384 Nut M4 2
027 189-1325 Washer 8L bw brass 2
028 189-0544 Clamp 1
029 203-1754 Microswitch 1
030 189-1416 Screw 1
031 189-1417 Screw 1
032 189-0545 Bar 1
033 189-1373 Screw 8 x 45 inch 1
034 189-0546 Pin 1
035 189-0547 Spring 1
036 189-1395 Screw 2
037 189-0551 Support 1
038 189-1376 Screw 4 x 10 inch 1
039 203-0522 Handle 1
040 189-0548 Tear rivet 2
041 189-0538 Clip 1
043 189-1379 Nut M8 1
044 189-0549 Fork 1
045 189-0550 Lever 1

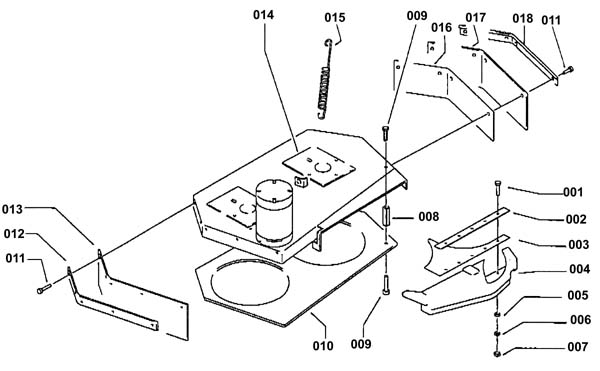

Head 78 - 95: Flap - Box - 189-0080
RefNbr Part Number Description Req Notes
001 189-1431 Screw 5
002 189-0473 Lamination 1
003a 189-0480 Dustpan 1 AS30
003b 189-0474 Dustpan 1 AS36
004 189-0475 Dust collector 1
005 203-0235 Washer 5
006 189-1433 Washer 5
007 189-1434 Nut 5
008 189-0476 Head protection spacer 7
009 189-1435 Screw 14
010 189-1437 Guard 1
011 999-0862 Screw 8 x 5/8 flat head phillips zinc 9
012a 189-0481 Left strip 1 AS30
012b 189-0477 Left Strip 1 AS36
013a 203-2848 Left flap 1 AS30
013b 203-2851 Left flap 1 AS36
014 189-0792 Gasket 2
015 189-0222 Spring 1
016a 189-0482 Reinforcement 1 AS30
016b 189-0478 Plastic square reinforcement 1 AS36
017a 203-2849 Right flap 1 AS30
017b 203-2852 Right flap 1 AS36
018a 189-0483 Right strip 1 AS30
018b 189-0479 Right strip 1 AS36

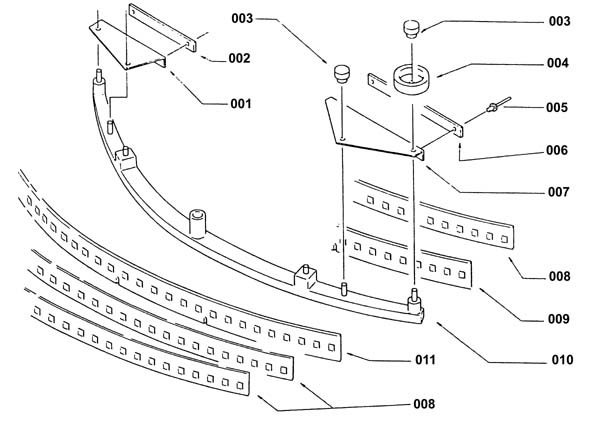

Squeegee Assembly - 189-0081
RefNbr Part Number Description Req Notes
001 189-0484 Bumper 1
002 189-0485 Stip / Band 1
003 189-0058 Handle 2
004 189-0188 Bumper wheel 2
005 189-0486 Tear rivet 4
006 189-0487 Strip / Band 1
007 189-0488 Bumper 1
008 189-0035 Squeegee blade black 53 inch 3
009 189-0034 Squeegee blade front curved tan 1
010 189-0489 Squeegee body 1
011 189-0036 Squeegee blade 1
N/S 189-2499 Complete squeegee assembly
N/S 203-2442 Hooking 1 used to tighten and adjust the sgy

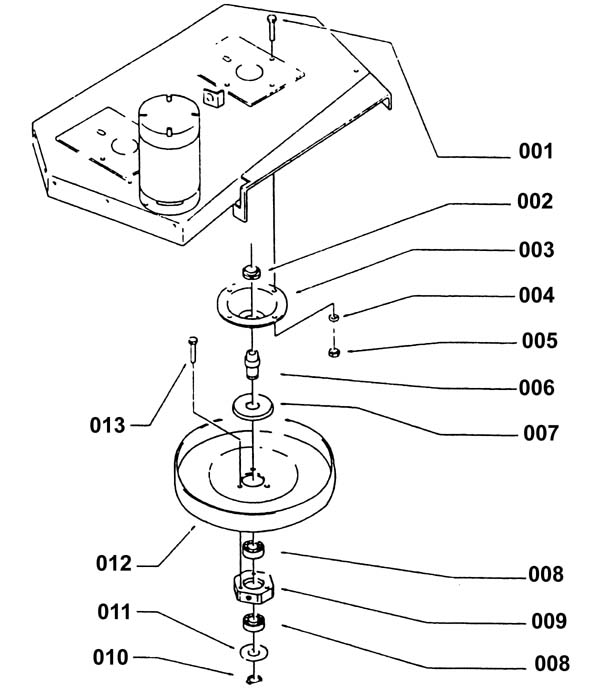

Head 78: Pulley Axle - 189-0083
RefNbr Part Number Description Req Notes
001 189-1428 Screw M8 8
002 189-1429 Nut 2
003 189-0156 Flange 2
004 189-1363 Washer 8
006 189-0492 Hexagon pin 2
007 189-0207 Guard 2
009 189-0493 Hexagon aluminum assembly 2
010 189-0093 Snap Ring 2
011 189-0209 Guard 2
012 189-0494 Pulley 2
013 189-1430 Screw 6

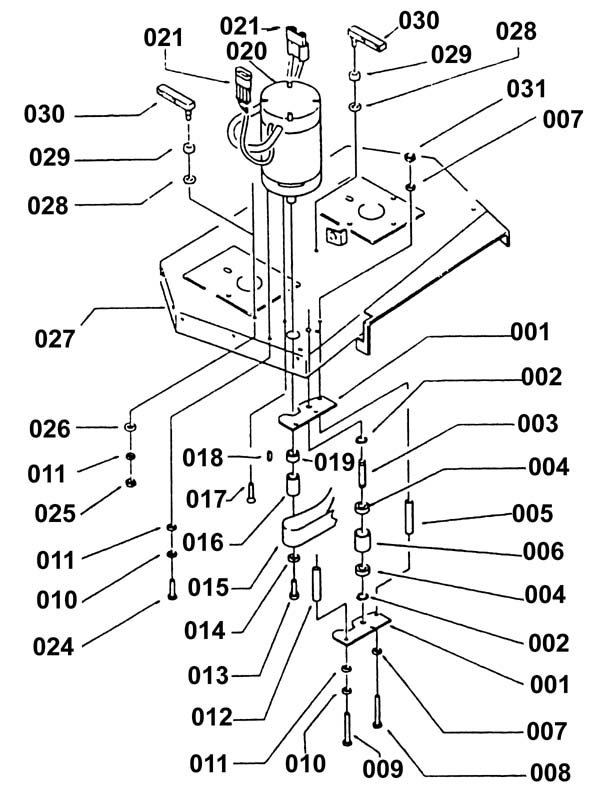

Head 78 - 189-0084
RefNbr Part Number Description Req Notes
001 189-0528 Plate 2
002 189-0081 Ring 2
003 189-0148 Pin/plug 1
004 203-3263 Bearing 2
005 189-0147 Bearing 1
006 189-0146 Pulley 1
007 189-1345 Washer d10 cham 2
008 189-1419 Screw 1
009 189-1420 Screw 2
010 189-1369 Washer cham 3
011 189-1363 Washer 5
012 189-0529 Spacer 2
013 189-1421 Screw 1
014 189-1422 Washer 1
015 189-0530 Belt 1
016 189-0221 Pulley 1
017 189-1423 Screw 1
018 189-0153 Tang-tongue 1
019 189-1531 Screw 1
020 189-0533 Brush motor 1
021a 189-0534 Connector 1
021b 189-2002 Battery charger connector 1
023 189-0536 Carbon brushes 4
024 189-1364 Screw 1
026 189-1393 Washer 2
027 189-0532 Plate 1
028 189-1394 Washer D13 2
029 189-0223 Rubber shim 2
030 189-0224 Bracket 2
031 189-1361 Nut 1

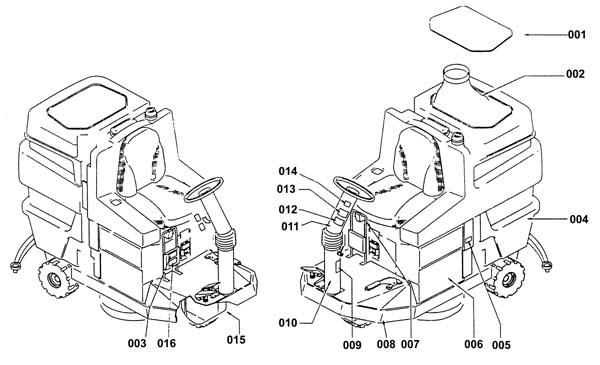

External Parts - 189-0086
RefNbr Part Number Description Req Notes
001 189-0495 Lid 1
002 189-0496 Membrane bag 1
003 189-0510 Label 1
004 189-0497 Tank 1
005 189-0498 Label 1
006 189-0499 Tank / Box 1
007 189-0500 Handle 1
008 189-0501 Frame 1
009 189-0502 Label 1
010 189-0503 Steering column 1
011 189-0504 Steering column 1
012 189-0505 Label 1
013 189-0506 Adesive label 1
014 189-0507 Adesive label (OBSOLETE) 1
015 189-0508 Front wheel cover 1
016 189-0509 Label 1

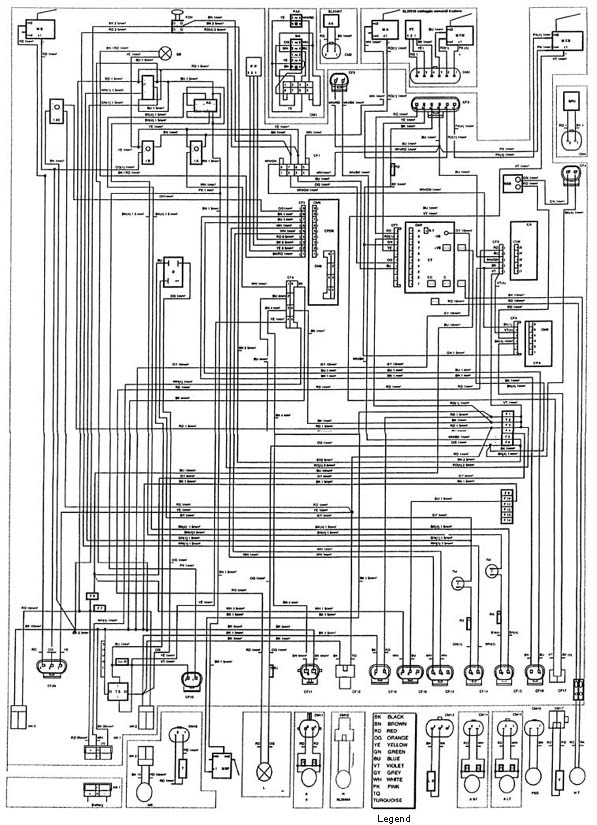

Wiring Diagram -

RefNbr Part Number Description Req Notes

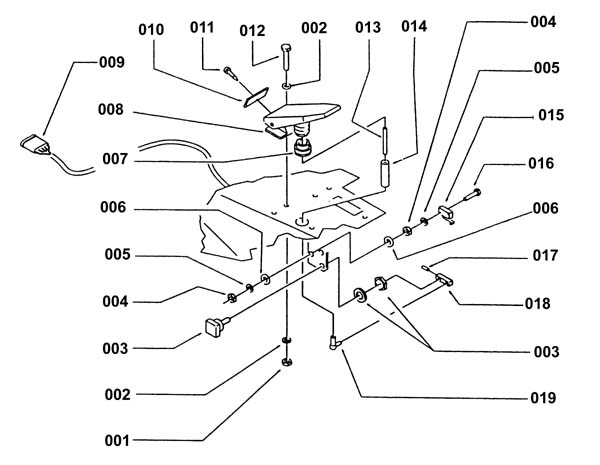

Drive System - 189-0089
RefNbr Part Number Description Req Notes
001 189-1361 Nut 2
002 189-1345 Washer d10 cham 4
003 189-0511 Potentiometer 1
004 189-1425 Nut 4
005 189-1426 Washer 4
006 189-1375 Washer D4 4
007 189-0512 Bushing 1
008 189-0513 Treadle 1
009 189-0514 Wiring 1
010 189-0515 Spacer 1
011 189-1350 Screw 1
012 189-1390 Screw 2
013 189-0516 Bar 1
014 189-0517 Spacer 1
015 189-0261 Microswitch 1
016 189-1427 Screw 2
017 203-2462 Traction level spring 1
018 189-0519 Lever 1
019 189-0327 Articulation 1

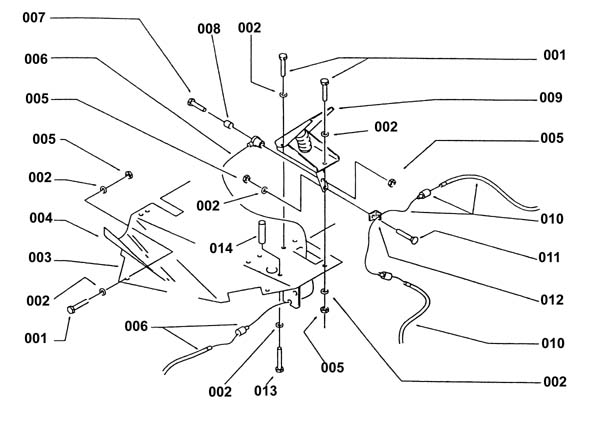

Brake System - 189-0090
RefNbr Part Number Description Req Notes
001 189-1390 Screw 10
002 189-1345 Washer d10 cham 22
003 189-0520 Footboard 1
004 189-0521 Covering / Coating 1
005 189-1361 Nut 12
006 189-0416 Cable 1
007 189-1424 Screw 1
008 189-0523 Bushing 1
009 189-0524 Treadle (OBSOLETE) 1
010 203-2615 Cable 1
011 189-1365 Seat screw 1
012 189-0526 Block / Lock 1
013 189-1424 Screw 1
014 189-0527 Spacer 1

- Batteries, Brushes and Chargers - 189-0138
RefNbr Part Number Description Req Notes
0.9835 996-1539 14 inch heavy grit stripping brush - 80 grit 2
0.9835 996-1506 14 inch polypropelene scrubbing brush 2
0.9835 996-1541 14 inch lite grit scrubbing brush - 500 grit 2
0.9835 996-0341 Drive lugs - plastic (pkg of 3) 2
0.9835 996-0596 14 inch Pad driver 2
0.9835 996-1540 14 inch medium grit scrubbing brush - 180 grit 2
0.2195 162-0002 12V 185Ah wet battery (SNSR) 3
0.2305 162-0005 6V 305Ah wet battery (SNSR) 6
0.3215 162-0047 12V 215Ah AGM battery (Group J185) 3
0.3335 162-0046 6V 335Ah AGM battery (Group J305) 6

- Pads - 255-1500
RefNbr Part Number Description Req Notes
01 255-1540 15 inch aqua plus burnishing pad (pkg of 5)
02 255-1535 15 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1564 15 inch Blue ace pad (pkg of 5)
04 255-1542 15 inch Blue Jay burnishing pad (pkg of 5)
05 255-1512 15 inch Cure white pad (pkg of 5)
06 255-1577 15 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1538 15 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
09 255-1550 15 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1565 15 inch Heat concrete bonding pad (pkg of 5)
11 255-1530 15 inch jaguar burnishing pad (pkg of 5)
12 255-1590 15 inch premium black stripping pad (pkg of 5)
13 255-1570 15 inch premium blue cleaning pad (pkg of 5)
14 255-1592 15 inch premium brown stripping pad (pkg of 5)
15 255-1580 15 inch premium green scrubbing pad (pkg of 5)
16 255-1560 15 inch premium red scrubbing pad (pkg of 5)
17 255-1552 15 inch premium tan polishing pad (pkg of 5)
18 255-1520 15 inch premium white polishing pad (pkg of 5)
19 255-1595 15 inch razorback stripping pad (pkg of 5)
20 255-1547 15 inch Redwood maroon floor prep pad (pkg of 10)
21 255-1511 15 inch superspeed rubberized pad (pkg of 5)
22 255-1555 15 inch Ruff non-abrasive brush pad (pkg of 2)
23 255-1523 15 inch sand screen driver pad (pkg of 2)
24 255-0125 15 inch Professional sand screen 100 grit (pkg of 10)
25 255-0126 15 inch Professional sand screen 120 grit (pkg of 10)
26 255-0127 15 inch Professional sand screen 150 grit (pkg of 10)
27 255-0128 15 inch Professional sand screen 180 grit (pkg of 10)
28 255-0129 15 inch Professional sand screen 220 grit (pkg of 10)
29 255-0123 15 inch Professional sand screen 60 grit (pkg of 10)
30 255-0124 15 inch Professional sand screen 80 grit (pkg of 10)
31 255-0210 15 inch Superscreen sand screen 100 grit (pkg of 10)
32 255-0211 15 inch Superscreen sand screen 120 grit (pkg of 10)
33 255-0212 15 inch Superscreen sand screen 150 grit (pkg of 10)
34 255-0213 15 inch Superscreen sand screen 180 grit (pkg of 10)
35 255-0214 15 inch Superscreen sand screen 220 grit (pkg of 10)
36 255-0208 15 inch Superscreen sand screen 60 grit (pkg of 10)
37 255-0209 15 inch Superscreen sand screen 80 grit (pkg of 10)
38 255-1524 15 inch Tiger carpet bonnet (pkg of 2)
39 255-9556 15 inch Diamond by Gorilla 11000 Grit (pkg of 2)
40 255-9553 15 inch Diamond by Gorilla 1500 Grit (pkg of 2)
41 255-9550 15 inch Diamond by Gorilla 200 Grit (pkg of 2)
42 255-9554 15 inch Diamond by Gorilla 3000 Grit (pkg of 2)
43 255-9551 15 inch Diamond by Gorilla 400 Grit (pkg of 2)
44 255-9552 15 inch Diamond by Gorilla 800 Grit (pkg of 2)
45 255-9555 15 inch Diamond by Gorilla 8000 Grit (pkg of 2)
46 255-9640 15 inch Diamond starter pack (1 of each grit)
47 255-1582 15 inch Turbostrip segmented rotary pad (pkg of 4)
48 255-1515 15 inch Duala clean and shine pad - low speed (pkg of 5)
49 255-1516 15 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
