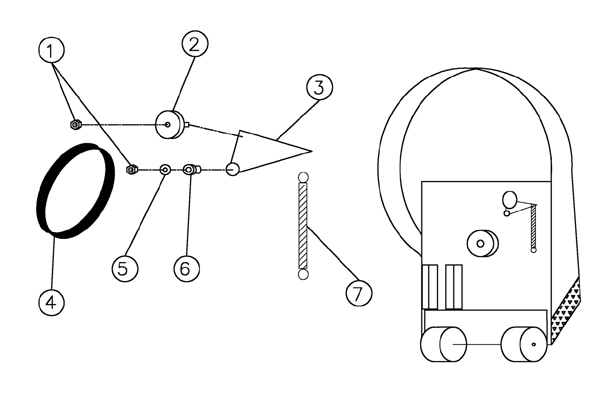

Upper Drive Assembly - 201-0003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0635 |
Nut 3/8-16 hex stainless steel |
2 |
|
| 2 |
201-0005 |
Vee idler pulley |
1 |
|
| 3 |
201-1034 |
Belt tensioner |
1 |
|
| 4a |
201-1026 |
Belt |
1 |
(30 inch model) |
| 4b |
201-0103 |
Belt |
1 |
(24 inch model) |
| 5 |
999-0024 |
Washer 5/16 flat stainless steel |
1 |
|
| 6 |
201-0029 |
Nylon bushing |
2 |
|
| 7 |
201-0015 |
Spring 55/64-3/4 x 7 inches |
1 |
|
|
|

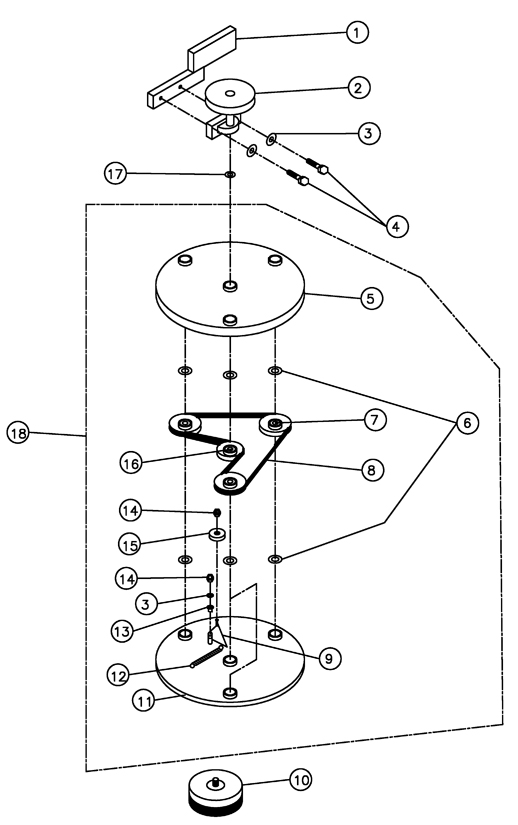

Lower Drive Assembly - 201-0004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
201-0041 |
Head support boom |
1 |
|
| 2a |
201-0040 |
Input boom pulley assembly |
1 |
|
| 2b |
201-0040 |
Input boom pulley assembly |
1 |
|
| 3 |
999-0024 |
Washer 5/16 flat stainless steel |
3 |
|
| 4 |
999-0107 |
Bolt 3/8-16 x 2 hex head grade 5 zinc plated |
2 |
|
| 5a |
201-0044 |
Top pan |
1 |
(30 inch model) |
| 5b |
201-1073 |
Top pan |
1 |
(24 inch model) |
| 6 |
201-0107 |
Belleville washer |
8 |
|
| 7 |
201-0047 |
Outer pan pulley |
3 |
|
| 8a |
201-0002 |
Belt |
1 |
(30 inch model) |
| 8b |
201-0104 |
Double vee belt |
1 |
(24 inch model) |
| 9a |
201-1009 |
Idler |
1 |
(30 inch model) |
| 9b |
201-1074 |
Idler |
1 |
(24 inch model) |
| 10a |
201-0046 |
Heavy duty stripping brush (red) |
3 |
(30 inch model) |
| 10b |
201-0046 |
Heavy duty stripping brush (red) |
3 |
(24 inch model) |
| 10c |
201-0022 |
Heavy scrub brush (blue) (OBSOLETE) |
3 |
(30 inch model) |
| 10d |
201-1075 |
Deep scrubbing brush (blue) |
3 |
(24 inch model) |
| 10e |
201-1070 |
Pad holder |
3 |
(30 inch model) |
| 10f |
201-1076 |
Pad holder |
3 |
(24 inch model) |
| 11a |
201-0043 |
30 inch steel plate |
1 |
(30 inch model) |
| 11b |
201-1077 |
24 inch steel plate |
1 |
(24 inch model) |
| 12a |
201-0015 |
Spring 55/64-3/4 x 7 inches |
1 |
(30 inch model) |
| 12b |
201-1078 |
Spring |
1 |
(24 inch model) |
| 13 |
201-0029 |
Nylon bushing |
1 |
|
| 14 |
999-0635 |
Nut 3/8-16 hex stainless steel |
2 |
|
| 15 |
201-0005 |
Vee idler pulley |
1 |
|
| 16 |
201-0045 |
Center pan pulley |
1 |
|
| 18a |
201-0108 |
Brush drive assembly |
1 |
(30 inch model) |
| 18b |
201-0108 |
Brush drive assembly |
1 |
(24 inch model) |
| N/A |
201-2215 |
Bolt 5/8-11 x 2 left hand thread |
3 |
|
|
|
- Commonly Asked For Parts - 201-9995 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
201-1034 |
Belt tensioner |
|
|
| 0.9835 |
201-1035 |
30 inch splash skirt |
|
|
| 0.9835 |
201-0040 |
Input boom pulley assembly |
|
|
| 0.9835 |
201-0029 |
Nylon bushing |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
