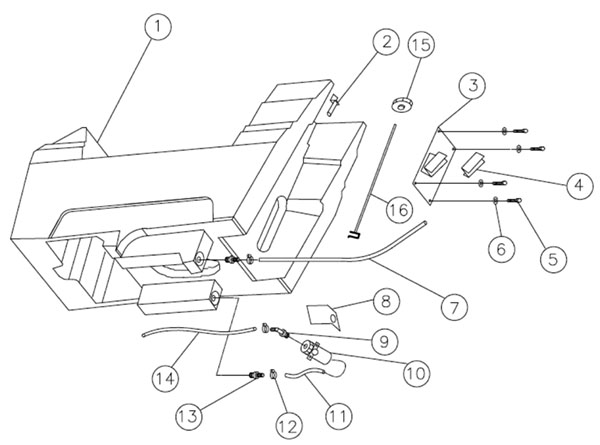

Solution Tank Assemlby - 201-0010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
201-2054 |
Solution tank |
1 |
|
| 4 |
201-2056 |
Brush adjustment bracket |
1 |
|
| 6 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 7 |
N/A |
Not available |
1 |
(Hose) |
| 10 |
201-0109 |
Solution solenoid valve |
1 |
|
| 11 |
N/A |
Not available |
1 |
(Hose) |
| 14 |
N/A |
Not available |
1 |
(Hose) |
| 15 |
201-2060 |
Solution control knob |
1 |
|
|
|

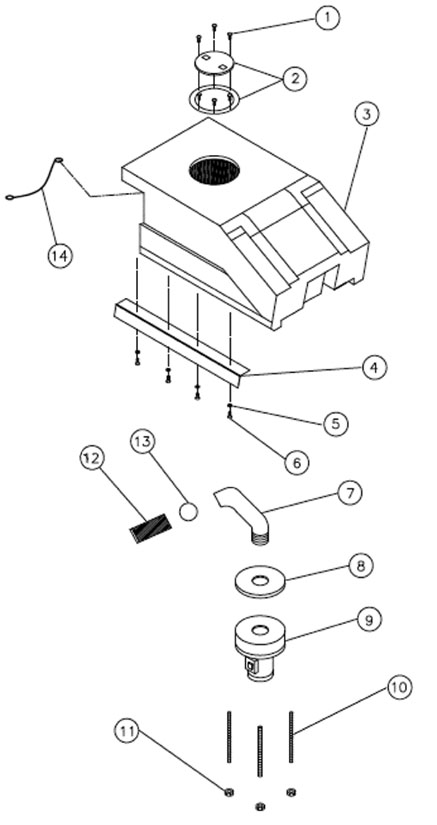

Recovery Tank Assembly - 201-0011 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
6 |
(Screw) |
| 3 |
201-2069 |
Recovery tank |
1 |
|
| 9 |
201-1040 |
Vacuum motor |
1 |
|
| 11 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
3 |
|
| 12 |
201-1042 |
Float screen |
1 |
|
| N/S |
201-1029 |
Recovery tank drain hose |
1 |
|
| N/S |
201-1030 |
Vacuum hose (sold by the foot) |
2 |
|
|
|

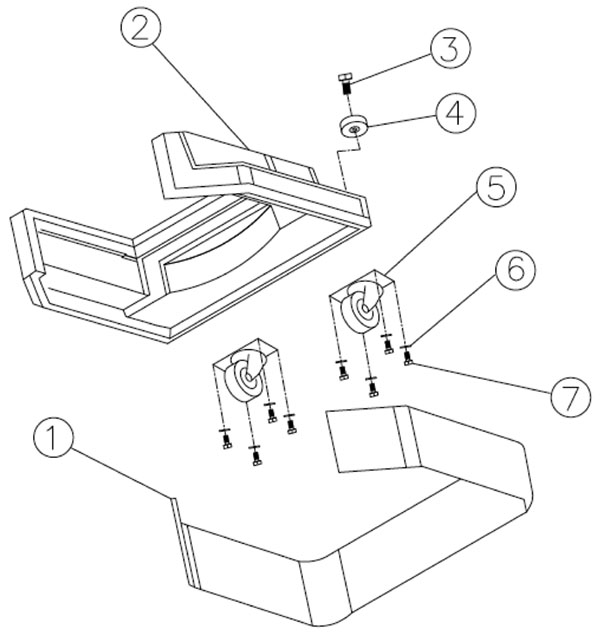

Shroud Assembly - 201-0012 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
201-0125 |
Splash skirt |
1 |
|
| 2 |
201-2075 |
20 inch shroud (blue) |
1 |
|
| 3 |
201-0101 |
Shoulder bolt |
2 |
|
| 5 |
201-1041 |
Swivel caster |
2 |
|
|
|

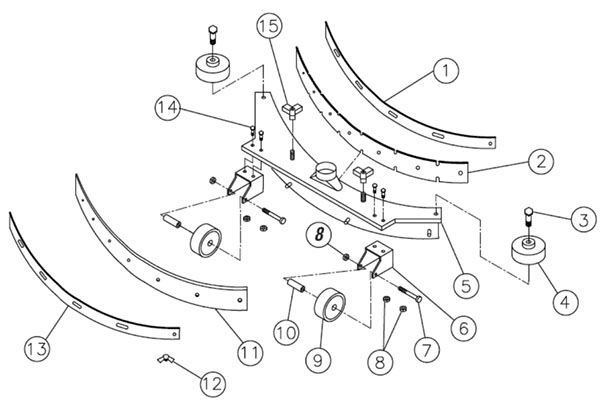

Squeegee Assembly - 201-0013 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
201-2077 |
Squeegee support |
1 |
|
| 2 |
201-1031 |
Front squeegee blade |
1 |
|
| 3 |
201-0101 |
Shoulder bolt |
2 |
|
| 4 |
201-0013 |
Poly wheels 3 x 1 1/4 inch |
2 |
|
| 5 |
201-2078 |
Squeegee weldment |
1 |
|
| 8 |
999-1353 |
Nut 10-32 hex nylon lock insert stainless steel |
6 |
|
| 11 |
201-1032 |
Rear squeegee blade |
1 |
|
| 12 |
201-1037 |
Squeegee knob |
16 |
|
| 13 |
201-2083 |
Squeegee support |
1 |
|
| 14 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
4 |
|
|
|

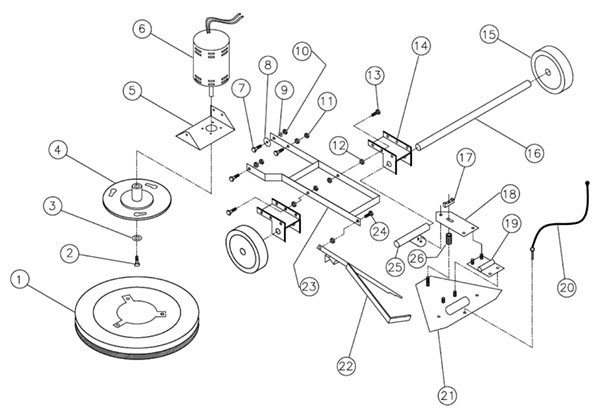

Drive Asssembly - 201-0014 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
201-2085 |
20 inch pad driver |
1 |
|
| 2 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
1 |
|
| 3 |
999-0016 |
Washer 1/4 flat plain finish |
1 |
|
| 4 |
201-2086 |
Brush adapter |
1 |
|
| 7 |
201-2019 |
Bolt 5/16-18 x 1 |
1 |
|
| 9 |
999-0024 |
Washer 5/16 flat stainless steel |
1 |
|
| 10 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 11 |
999-0118 |
Nut 1/2-13 nylon insert lock zinc plated |
4 |
|
| 13 |
N/A |
Not available |
4 |
(Bolt) |
| 15 |
201-1013 |
8 inch wheel |
2 |
|
| 17 |
201-1037 |
Squeegee knob |
1 |
|
| 18 |
201-2094 |
Squeegee pivot bracket |
1 |
|
| 20 |
201-2096 |
Squeegee lift cable |
1 |
|
| 21 |
201-1039 |
Squeegee mounting plate |
1 |
|
| 26 |
201-1038 |
Squeegee adjustment spring |
1 |
|
|
|

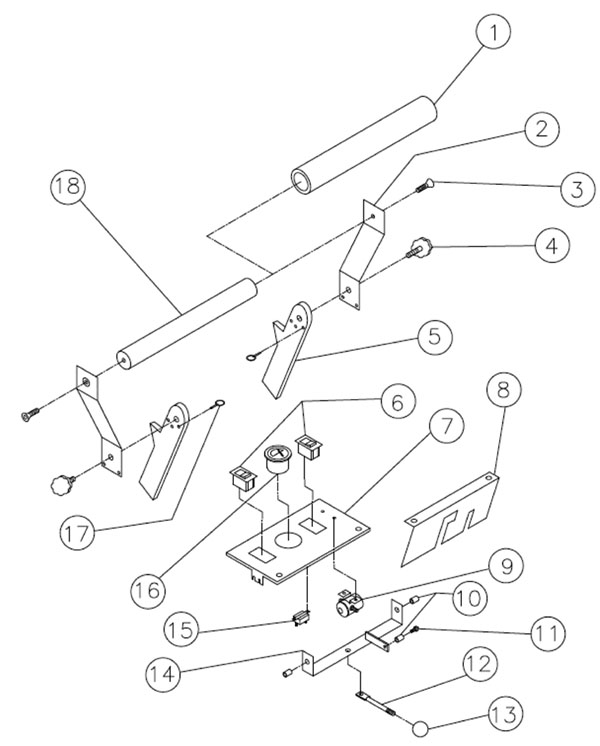

Control Panel Assembly - 201-0015 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
201-2100 |
Handle bracket |
2 |
|
| 4 |
201-1036 |
Handle adjustment knob |
2 |
|
| 6 |
201-1091 |
Rocker switch |
2 |
|
| 7 |
201-2102 |
Control panel plate |
1 |
|
| 9 |
201-0110 |
Solution solenoid |
1 |
|
| 11 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
1 |
|
| 12 |
201-2105 |
Squeegee lift arm weldment |
1 |
|
| 14 |
201-2107 |
Squeegee lift bracket |
1 |
|
| 15 |
201-2108 |
Circuit breaker |
1 |
|
| 16 |
201-2109 |
Battery meter |
1 |
|
| 17 |
201-2110 |
Handle adjustment pin |
2 |
|
| 18 |
201-0118 |
Handle bar with grips |
1 |
|
|
|
- Batteries, Brushes and Chargers - 201-0016 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
162-6022 |
12V 102Ah gel battery (SNSR) |
|
|
|
162-6022 |
12V 102Ah gel battery (SNSR) |
|
|
|
996-0230 |
19 inch nylon scrubbing brush |
|
|
|
996-0230 |
19 inch nylon scrubbing brush |
|
|
|
201-2085 |
20 inch pad driver |
|
|
|
201-2085 |
20 inch pad driver |
|
|
|
|

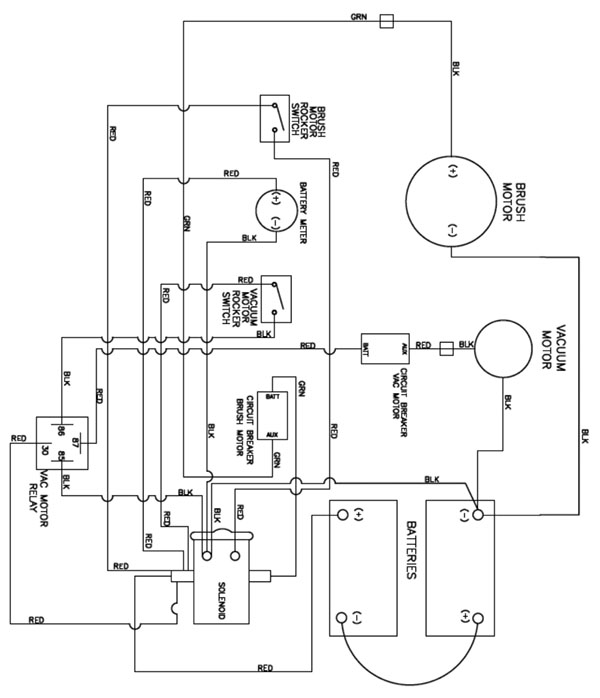

Wiring Diagram - 201-0016 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
162-6022 |
12V 102Ah gel battery (SNSR) |
|
|
|
162-6022 |
12V 102Ah gel battery (SNSR) |
|
|
|
996-0230 |
19 inch nylon scrubbing brush |
|
|
|
996-0230 |
19 inch nylon scrubbing brush |
|
|
|
201-2085 |
20 inch pad driver |
|
|
|
201-2085 |
20 inch pad driver |
|
|
|
|
- Commonly Asked For Parts - 201-9996 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
201-1029 |
Recovery tank drain hose |
|
|
| 02 |
201-1030 |
Vacuum hose (sold by the foot) |
|
|
| 03 |
201-1031 |
Front squeegee blade |
|
|
| 04 |
201-1032 |
Rear squeegee blade |
|
|
| 05 |
996-0230 |
19 inch nylon scrubbing brush |
|
|
| 07 |
201-0109 |
Solution solenoid valve |
|
|
| 08 |
201-0110 |
Solution solenoid |
|
|
| 09 |
201-1036 |
Handle adjustment knob |
|
|
| 10 |
201-1037 |
Squeegee knob |
|
|
| 11 |
201-1038 |
Squeegee adjustment spring |
|
|
| 12 |
162-6022 |
12V 102Ah gel battery (SNSR) |
|
|
| 13 |
201-0118 |
Handle bar with grips |
|
|
| 18 |
201-1041 |
Swivel caster |
|
|
| 22 |
201-1091 |
Rocker switch |
|
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad(OBSOLETE) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
