- Pads - 255-0700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-0738 |
7 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2) |
|
|
| 02 |
255-0765 |
7 inch Heat concrete bonding pad (pkg of 20) |
|
|
| 04 |
255-0790 |
7 inch premium black stripping pad (pkg of 20) |
|
|
| 06 |
255-0770 |
7 inch premium blue cleaning pad (pkg of 20) |
|
|
| 08 |
255-0792 |
7 inch premium brown stripping pad (pkg of 20) |
|
|
| 10 |
255-0780 |
7 inch premium green scrubbing pad (pkg of 20) |
|
|
| 12 |
255-0760 |
7 inch premium red scrubbing pad (pkg of 20) |
|
|
| 14 |
255-0752 |
7 inch premium tan polishing pad (pkg of 20) |
|
|
| 16 |
255-0720 |
7 inch premium white polishing pad (pkg of 20) |
|
|
| 18 |
255-0747 |
7 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 20 |
255-0755 |
7 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 21 |
255-9507 |
7 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 22 |
255-9504 |
7 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 23 |
255-9501 |
7 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 24 |
255-9505 |
7 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 25 |
255-9502 |
7 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 26 |
255-9503 |
7 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 27 |
255-9506 |
7 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 28 |
255-9634 |
7 inch Diamond starter pack (1 of each grit) |
|
|
|
|

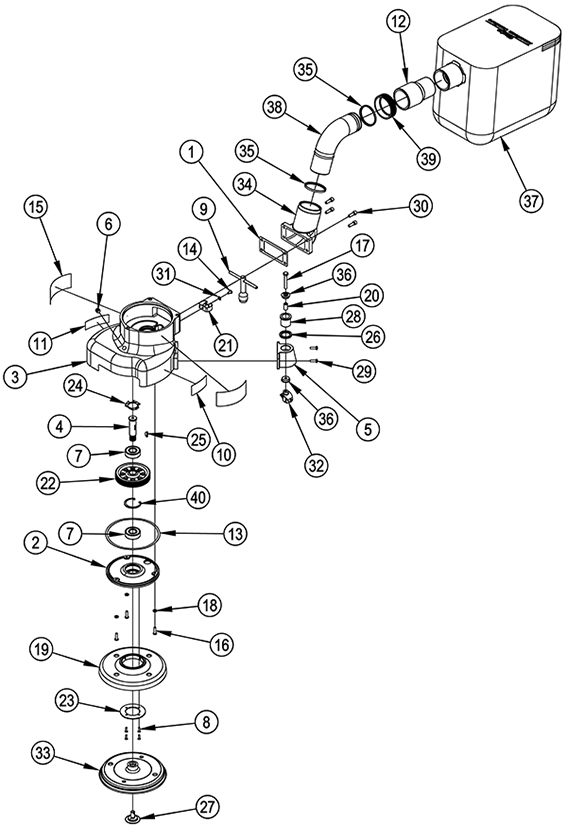

Lower Assembly - 272-1251 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
372-1937 |
Exhaust bracket gasket |
1 |
|
| 2 |
170-2446 |
Housing cover assembly |
1 |
|
| 3 |
170-2458 |
Gear housing |
1 |
|
| 4 |
170-2465 |
Drive gear shaft |
1 |
|
| 5 |
170-2467 |
Caster support bracket |
2 |
|
| 7 |
170-0321 |
Front end bearing |
2 |
|
| 8 |
999-1582 |
Screw 6-32 x 1/2 flat head phillips stainless steel |
4 |
|
| 11 |
154-3996 |
Prop 65 decal |
1 |
(07013A & 07125A only) |
| 13 |
372-1940 |
Gasket cover |
1 |
|
| 14 |
999-0571 |
Screw 10-24 x 3/8 pan head phillips stainless steel |
1 |
|
| 15 |
372-1642 |
Decal |
2 |
(07013A only) |
| 16 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
3 |
|
| 17 |
999-1064 |
Bolt 1/4-20 x 1 3/4 hex head cap grade 5 zinc plated |
2 |
|
| 20 |
170-2437 |
Spacing collar |
2 |
|
| 23 |
372-1943 |
Retainer disc |
1 |
|
| 24 |
170-5671 |
Load Spring |
1 |
|
| 25 |
170-5543 |
1/8 x 5/8 Woodruff key |
1 |
|
| 28 |
372-1946 |
Swivel caster screw |
2 |
|
| 29 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
4 |
|
| 30 |
170-5576 |
Screw 1/4-20 x 3/4 socket cap |
4 |
|
| 31 |
999-0311 |
Washer #10 external star lock zinc plated |
2 |
|
| 32 |
154-3694 |
Wheel and yoke assembly |
2 |
|
| 33 |
154-5163 |
Sanding disc |
1 |
|
| 34 |
372-1947 |
Exhaust adapter |
1 |
|
| 36 |
372-1949 |
Ball bearing |
4 |
|
| 38 |
372-1951 |
Exhaust tube |
1 |
|
| 40 |
170-2347 |
Ring retain ro42 |
1 |
|
| N/S |
372-1954 |
Wheel & yoke urethane edgers |
2 |
(optional) |
| N/S |
372-1955 |
Exhaust conversion kit |
1 |
(optional) |
| N/S |
372-1956 |
Hook |
1 |
(optional) |
|
|

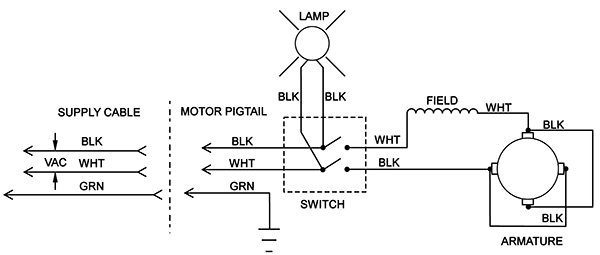

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

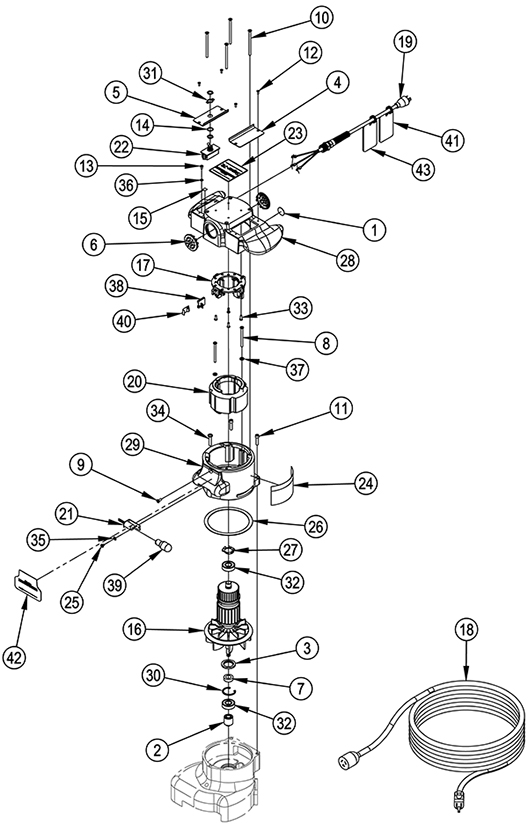

Upper Assembly - 272-1253 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
372-1957 |
Decal |
1 |
(07013A & 07125A only) |
| 2 |
170-2433 |
Armature pinion |
1 |
|
| 4 |
170-2447 |
Left hand brush motor cover |
1 |
|
| 5 |
170-2448 |
Right hand brush motor cover |
1 |
|
| 7 |
170-2466 |
Bearing spacer |
1 |
|
| 8 |
270-4938 |
Screw 10-24 x 2 1/2 |
2 |
|
| 9 |
170-1504 |
Screw |
1 |
(07013A & 07125A only) |
| 10 |
270-4935 |
Screw #10-24 x 3 1/4 |
4 |
|
| 11 |
170-9997 |
Screw 1/4 -20 x 1 standard head |
2 |
|
| 12 |
270-4936 |
Screw #6-32 x 3/8 flat head |
4 |
|
| 13 |
270-4937 |
Screw 8-32 x 5/16 |
1 |
|
| 15 |
170-6011 |
Ground symbol decal |
1 |
|
| 16a |
372-1961 |
Armature assembly with fan |
1 |
(07013A & 07125A only) |
| 16b |
372-1962 |
Armature assembly |
1 |
(07098A only) |
| 17 |
372-1963 |
Brush holder assembly |
1 |
|
| 18a |
154-5171 |
12/3 powercord 40 foot |
1 |
(07013A only) |
| 18b |
372-1964 |
Cord set |
1 |
(07125A only) |
| 18c |
372-1965 |
Cord set 50 foot (OBSOLETE) |
1 |
(07098A only) |
| 19a |
372-1966 |
Interconnecting cord |
1 |
(07013A & 07125A only) |
| 19b |
372-1967 |
Power cord (OBSOLETE) |
1 |
(07098A only) |
| 20a |
372-1968 |
115V field and coil assembly |
1 |
(07013A & 07125A only) |
| 20b |
372-1969 |
240V field and coil assembly (OBSOLETE) |
1 |
(07098A only) |
| 21 |
372-1970 |
Socket assembly |
1 |
(07013A & 07125A only) |
| 22 |
170-6263 |
On/Off switch |
1 |
|
| 23 |
372-1971 |
Name plate (OBSOLETE) |
1 |
|
| 25 |
999-1211 |
Screw 10-24 x 1/4 pan head phillips stainless steel |
1 |
(07013A & 07125A only) |
| 26 |
170-2431 |
Fan baffle gasket |
1 |
|
| 27 |
170-2438 |
56 Spring load |
1 |
|
| 28 |
170-2449 |
Cover and handle assembly |
1 |
|
| 29 |
170-2459 |
Housing and guard assembly |
1 |
(no light guad on 07098A) |
| 30 |
170-5544 |
Retaining ring |
1 |
|
| 31 |
170-1772 |
Switch plate |
1 |
|
| 33 |
154-3946 |
Screw #8 x 1/2 inch |
4 |
|
| 35 |
999-0311 |
Washer #10 external star lock zinc plated |
1 |
(07013A & 07125A only) |
| 37 |
999-1416 |
Washer 7/16 flat stainless steel |
2 |
|
| 38a |
154-3687 |
Carbon brush (sold each) |
4 |
(07013A & 07125A only) |
| 38b |
372-1975 |
Carbon brush |
4 |
(07098A only) |
| 39 |
372-1976 |
Bulb |
1 |
(07013A & 07125A only) |
| 40 |
372-1977 |
Spring brush holder |
4 |
|
| 41 |
270-0652 |
Warning decal |
1 |
(07013A & 07125A only) |
| 42 |
372-1978 |
Name plate (OBSOLETE) |
1 |
(07098A only) |
| 43 |
154-3964 |
Washer #10 lock |
1 |
|
|
|
