Parts List Complete for AMERSAND EZ-SAND

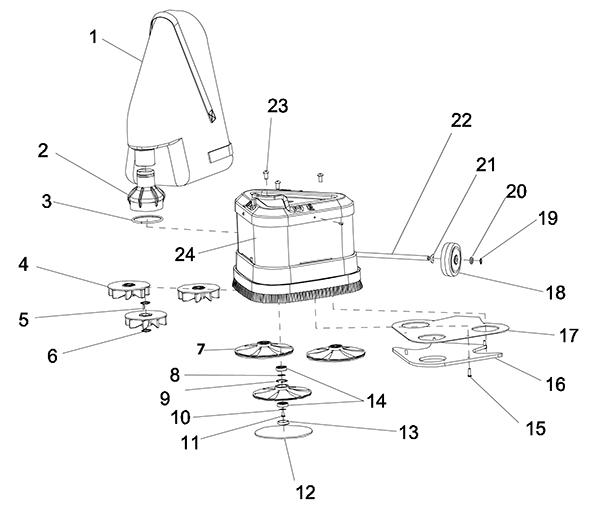

Main Assembly - 272-1233
RefNbr Part Number Description Req Notes
1 372-1645 Bag (OBSOLETE) 1
2 372-0092 Adapter 1
3 372-0098 Ring 1
4 372-0084 Fan 3
5 170-5543 1/8 x 5/8 Woodruff key 3
6 370-4964 RING SNAP EZ-SAND 6
7 372-3694 Driver assembly 3
8 154-3905 Spacer 3
10 372-1640 Washer 3
11 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 3
12 372-0093 7 inch driver pads (pkg of 3) 1
13 372-0086 Plug 3
14 170-0338 Ball bearing 6
15 370-4818 SCREW 1/4-20 X 7/8 BT 4
16 372-1161 Weight 1 (115v only)
17 372-0043 Plate 1
18 372-0094 Wheel 2
19 572-0659 MAIN BROOM PROEX-WIRE-12 ROW 2
20 170-5570 Wheel thrust washer 2
21 272-8202 Bowed washer 2
22 270-0080 Axle 1
23 999-0578 Bolt 3/8-16 x 1/2 hex head grade 5 plain finish 3
24 372-1641 Decal (OBSOLETE) 1
N/S 372-0087 Hook repair kit 1
N/S 154-5209 Sanding disc driver 1

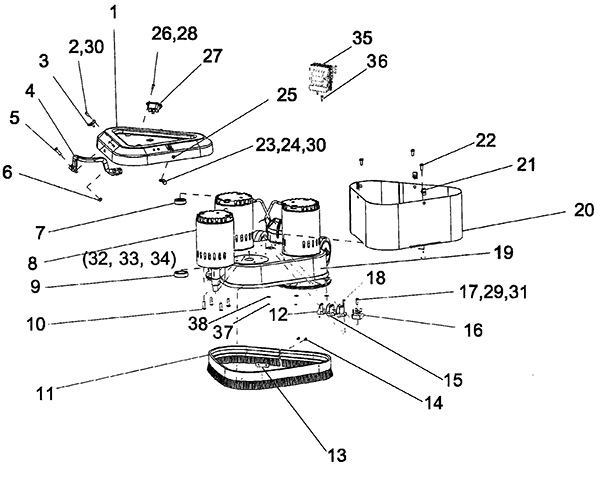

Motor Assembly - 272-1234
RefNbr Part Number Description Req Notes
1 372-0044 Cover 1
2 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 5
3 372-0074 Latch 3
4 372-0099 Handle 1
5 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel 4
6 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 4
7 270-0808 Bearing 3
8 372-0090 Motor 1/3 HP 500 RPM 3
9 372-1684 Ball bearing 3
10 370-4818 SCREW 1/4-20 X 7/8 BT 12
11 372-0085 Skirt 1
12 372-0073 Mounting adapter 1
13 372-0097 Plate 1
14 370-4916 SCREW 6 X 3/8 SHEET METAL 2
15 372-0089 Block terminal 2
16 372-0079 Rectifier 1
17 372-1639 Screw 10-32 x 5/8 2
18 372-1638 Screw 8-32 x 3/8 2
19 372-0083 Frame 1
20 372-1136 Motor shroud 1
21 370-4924 NUT 10-24 U-TYPE 938PK 3
22 272-8481 Screw 1/4-20 x 5/8 socket 3
23 170-1744 Nylon clip 1
24 999-1984 Screw #8-32 x 3/4 pan head phillips brass 1
25 999-1178 Bolt 10-24 x 3/4 hex head stainless steel 3
26 999-6683 Screw #6-32 x 1/2 hex slotted head stainless steel 2
27 372-0088 Inlet (OBSOLETE) 1
28 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
29 170-6125 Washer 1/8 lock 1
30 999-0357 Nut 8-32 nylon insert lock stainless steel 6
31 999-0311 Washer #10 external star lock zinc plated 1
32 372-0091 Armature assembly 1
33 372-1648 Carbon brush assembly 2
34 372-1685 Springs 2
35 372-1686 Transformer (OBSOLETE) 1
36 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 2
37 372-1686 Transformer (OBSOLETE) 2
38 999-0016 Washer 1/4 flat plain finish 2
N/S 372-0071 Wiring harness (OBSOLETE) 1 (includes 16-27)(115V)
N/S 372-0072 Harness rectifier 1 (includes 16-27)(115V)
N/S 372-1687 Harness 1 (includes 16-27) (220V)
N/S 372-1688 Harness 1 (includes 16-27) (220V)

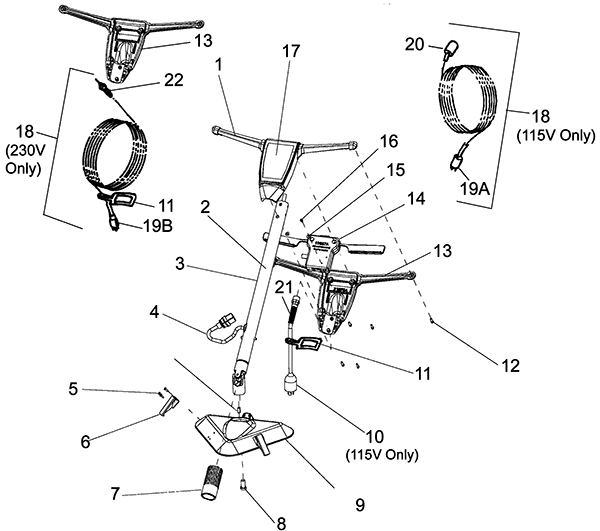

Handle Assembly - 272-1235
RefNbr Part Number Description Req Notes
1 270-0143 Front handle 1
2 372-0051 Decal (OBSOLETE) 1
3 372-0060 Handle tube 1
4 372-0056 Interconnect cord (OBSOLETE) 1
5 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 9
6 170-7019 Brush deck latch 3
7 372-0059 Handle lock collar 1
8 999-1199 Screw 1/2-13 x 1 socket head cap stainless steel 1
9 372-0055 Weight iron 1
10 154-5169 Adapter cord 1 (includes 21) (115V)
11 270-0652 Warning decal 1
12 999-1275 Screw 10-32 x 3/4 hex head stainless steel 6
13 270-0145 Rear handle 1
14 372-0052 Module interlock assembly 1
15 372-0064 Washer 10 Flat B Wide 1
16 999-1276 Screw 10-32 x 3/8 hex head stainless steel 2
17 372-0062 Decal (OBSOLETE) 1
18a 154-5171 12/3 powercord 40 foot 1 (115V 60HZ)
18b 372-1941 Power cord (OBSOLETE) 1 (230V 50HZ)
19a 270-0653 Cord plug 1 (115v)
19b 372-1691 Plug 1 (230v)
20 170-1477 Female electrical connector 1
21 372-1693 Strain relief 1 (included with item 10)
22 164-4502 Strain relief 1 (included with item 18) (230V)

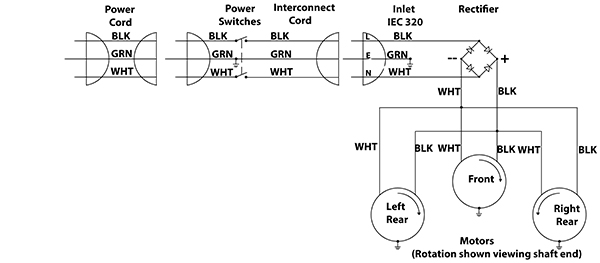

Wiring Diagram 115V -

RefNbr Part Number Description Req Notes

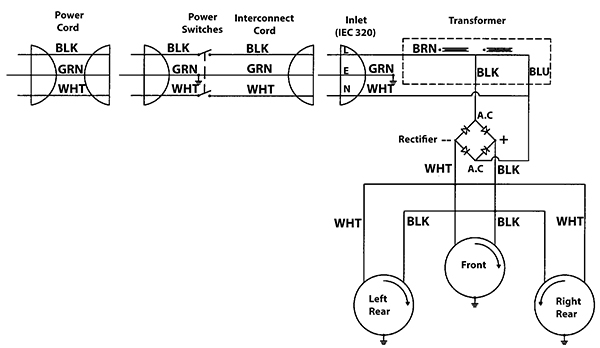

Wiring Diagram 230V -
