Parts List Complete for AMERSAND 1600 DC

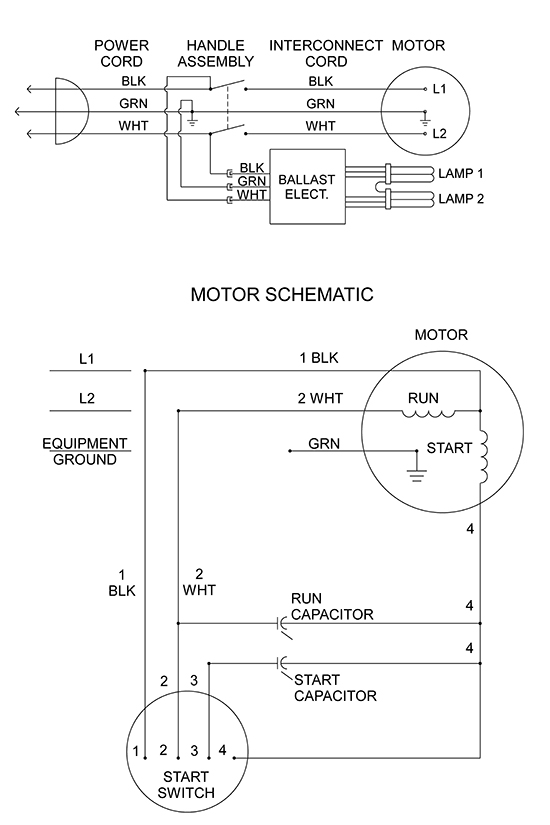

Wiring Assembly -

RefNbr Part Number Description Req Notes

- Pads - 16 inch - 255-1600
RefNbr Part Number Description Req Notes
01 255-1640 16 inch aqua plus burnishing pad (pkg of 5)
02 255-1635 16 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1664 16 inch Blue ace pad (pkg of 5)
04 255-1642 16 inch Blue Jay burnishing pad (pkg of 5)
05 255-1612 16 inch Cure white pad (pkg of 5)
06 255-1677 16 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1638 16 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1621 16 inch gorilla lite burnishing pad (pkg of 5)
09 255-1650 16 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1665 16 inch Heat concrete bonding pad (pkg of 5)
11 255-1630 16 inch jaguar burnishing pad (pkg of 5)
12 255-1687 16 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1690 16 inch premium black stripping pad (pkg of 5)
14 255-1670 16 inch premium blue cleaning pad (pkg of 5)
15 255-1692 16 inch premium brown stripping pad (pkg of 5)
16 255-1680 16 inch premium green scrubbing pad (pkg of 5)
17 255-1660 16 inch premium red scrubbing pad (pkg of 5)
18 255-1652 16 inch premium tan polishing pad (pkg of 5)
19 255-1620 16 inch premium white polishing pad (pkg of 5)
20 255-1611 16 inch superspeed rubberized pad (pkg of 5)
21 255-1695 16 inch razorback stripping pad (pkg of 5)
22 255-1647 16 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1655 16 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1623 16 inch sand screen driver pad (pkg of 2)
25 255-0132 16 inch Professional sand screen 100 grit (pkg of 10)
26 255-0133 16 inch Professional sand screen 120 grit (pkg of 10)
27 255-0134 16 inch Professional sand screen 150 grit (pkg of 10)
28 255-0135 16 inch Professional sand screen 180 grit (pkg of 10)
29 255-0136 16 inch Professional sand screen 220 grit (pkg of 10)
30 255-0137 16 inch Professional sand screen 400 grit (pkg of 10)
31 255-0130 16 inch Professional sand screen 60 grit (pkg of 10)
32 255-0131 16 inch Professional sand screen 80 grit (pkg of 10)
33 255-0217 16 inch Superscreen sand screen 100 grit (pkg of 10)
34 255-0218 16 inch Superscreen sand screen 120 grit (pkg of 10)
35 255-0219 16 inch Superscreen sand screen 150 grit (pkg of 10)
36 255-0220 16 inch Superscreen sand screen 180 grit (pkg of 10)
37 255-0221 16 inch Superscreen sand screen 220 grit (pkg of 10)
38 255-0222 16 inch Superscreen sand screen 400 grit (pkg of 10)
39 255-0215 16 inch Superscreen sand screen 60 grit (pkg of 10)
40 255-0216 16 inch Superscreen sand screen 80 grit (pkg of 10)
41 255-1624 16 inch Tiger carpet bonnet (pkg of 2)
42 255-9563 16 inch Diamond by Gorilla 11000 Grit (pkg of 2)
43 255-9560 16 inch Diamond by Gorilla 1500 Grit (pkg of 2)
44 255-9557 16 inch Diamond by Gorilla 200 Grit (pkg of 2)
45 255-9561 16 inch Diamond by Gorilla 3000 Grit (pkg of 2)
46 255-9558 16 inch Diamond by Gorilla 400 Grit (pkg of 2)
47 255-9559 16 inch Diamond by Gorilla 800 Grit (pkg of 2)
48 255-9562 16 inch Diamond by Gorilla 8000 Grit (pkg of 2)
49 255-9641 16 inch Diamond starter pack (1 of each grit)
50 255-1682 16 inch Turbostrip segmented rotary pad (pkg of 4)
51 255-1615 16 inch Duala clean and shine pad - low speed (pkg of 5)
52 255-1616 16 inch 2001 Duala clean and shine pad - high speed (pkg 5)

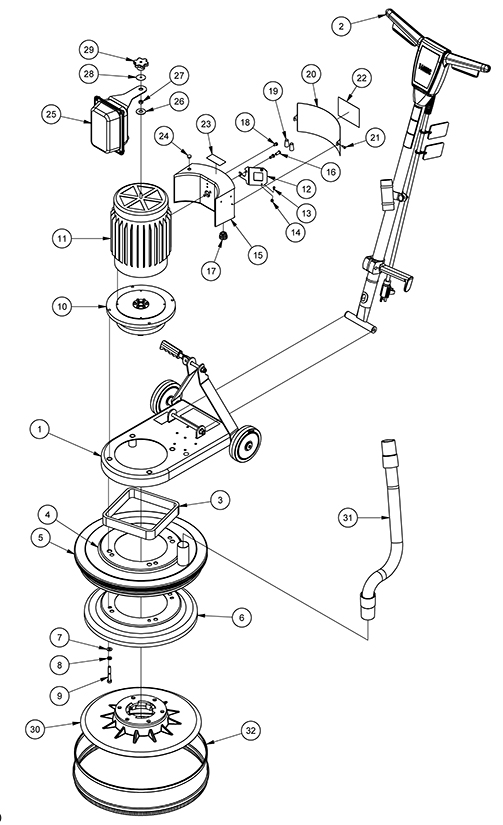

Main Assembly - 270-2448
RefNbr Part Number Description Req Notes
1 154-1652 Frame 1
2 154-1653 Handle 1
3 170-5180 Foam seal 1
4 154-1654 Dust shield weldment 1
5 154-1655 Outer shield bumper 1
6 154-1656 Right hand inner shield 1
7 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
8 999-0028 Washer 5/16 split lock plain finish 4
9 370-6728 SCR 5/16-18X2&1/4 HX ST 4
10 370-2111 GEARBOX 10 TO 1 SANDER 1
11 154-3708 1.5HP motor 1
12 154-1657 Mounting bracket 1
13 999-0463 Screw 6-32 x 3/8 pan head slotted zinc plated 2
14 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
15 154-3947 Start motor enclosure 1
16 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel 2
17 154-3948 7/8 inch strain relief bushing 1
18 154-3951 Screw #10 x 3/8 inch 1
19 170-5584 Connector 2
20 154-3949 Enclosure cover 1
21 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 2
22 373-3016 Decal 1
23 372-1644 Decal 1
24 270-0712 Nylon plug 1
25 154-1658 Lamp assembly 1
26 170-6124 Washer flat nylon 1
27 370-5215 NUTHEX JAM1/4-20 1
28 170-7132 Washer 1 1/4 1
29 154-1659 Lamp knob 1
30 154-1660 Pad driver assembly 1
31 170-2182 Squeegee hose 1
32 154-1661 Dust control skirt assembly 1
N/S 170-0491 115V capacitor 1
N/S 270-0151 Run capacitor 1
N/S 154-1662 125V Electronic switch 1

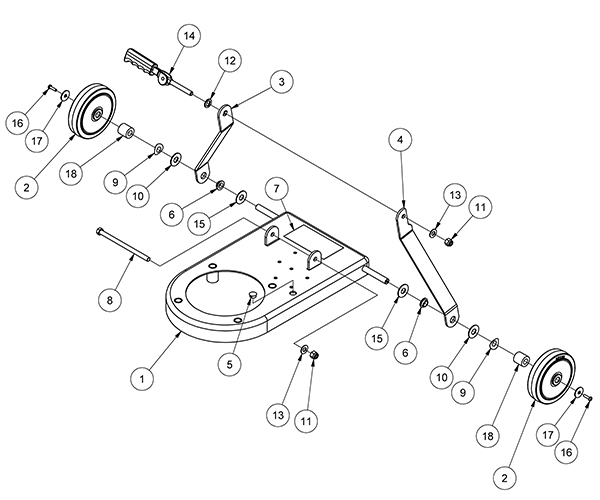

Base Assembly - 270-2449
RefNbr Part Number Description Req Notes
1 154-1663 Frame 1
2 375-7611 Wheel 2
3 154-1664 Right hand arm link 1
4 154-1665 Left hand arm link 1
5 170-1247 Plug 1
6 154-1206 Flanged bushing 2
7 154-1666 Decal 1
8 170-1521 Screw 3/8-16 x 6 1
9 272-8202 Bowed washer 2
10 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
11 999-0170 Nut 3/8-16 hex plain finish 2
12 170-5522 Wear washer 1
13 999-0032 Washer 3/8 USS flat plain finish 2
14 170-1267 Cam assembly with grip, bolt and locking lever 1
15 170-6124 Washer flat nylon 2
16 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 2
17 270-0710 Washer #10 stainless steel 2
18 154-1667 Spacer 1 x 1/2 x 1 inch nylon 2

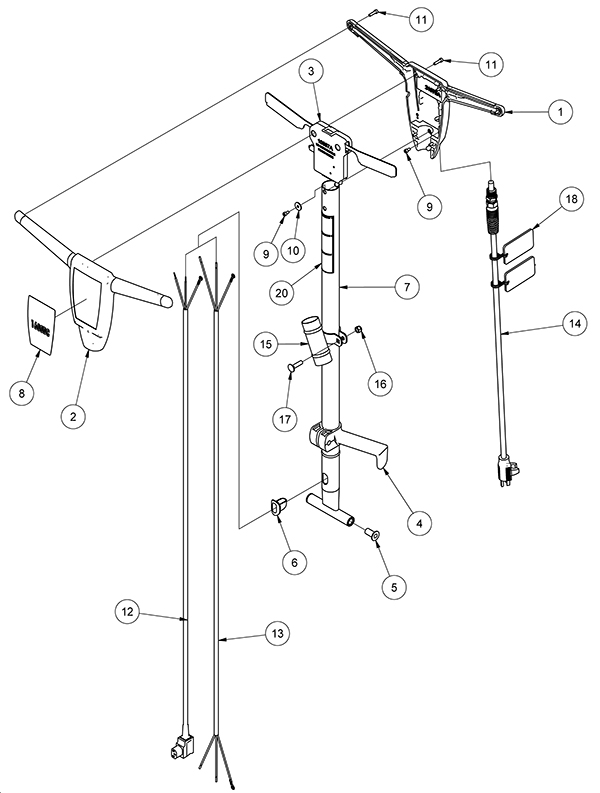

Handle Assembly - 270-2450
RefNbr Part Number Description Req Notes
1 270-0145 Rear handle 1
2 270-0143 Front handle 1
3 270-0077 Switch assembly 1
4 170-1517 Handle clamp 1
5 170-1520 Nylon bushing 2
6 170-1534 Strain relief 1
7 154-1668 Tube handle 1
8 154-1669 Handle decal 1
9 999-1276 Screw 10-32 x 3/8 hex head stainless steel 2
10 999-0998 Washer #10 flat stainless steel 1
11 999-1275 Screw 10-32 x 3/4 hex head stainless steel 6
12 154-1670 Lamp interconnect cord 1
13 154-1671 Interconnect cord 1
14 154-1672 14/3 power cord 50 foot 1
15 170-5181 Hose adapter weldment 1
16 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
17 370-6495 BOLT CARRIAGE 5/16-18X1 1/4 1
18 270-0652 Warning decal 1
20 154-5170 Warning decal 1
N/S 170-5182 Terminal 2

Lamp Assembly - 270-2451
RefNbr Part Number Description Req Notes
0 154-1658 Lamp assembly 1 (includes 1-18)
1 170-6340 Screw 6-32 x 1/2 flat head 2
3 154-1673 Lamp enclosure 1
4 154-1674 Lamp cover 1
5 154-1675 Inlet 1
6 370-1947 TAP SPLICE 22-16 AWG 2
7 170-2845 Bumper 2
8 154-1676 Ballast 120-277V 13w 1
9 154-1677 Lamp adaptor 2
10 154-1678 13 watt fluorescent lamp 2
11 154-1679 Socket assembly 2
12 154-1680 Grommet 2
13 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
14 170-2034 Nut 8-32 9
15 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 8
16 154-1681 Reflector lamp 1
17 154-1682 Lamp bracket 1
18 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 5

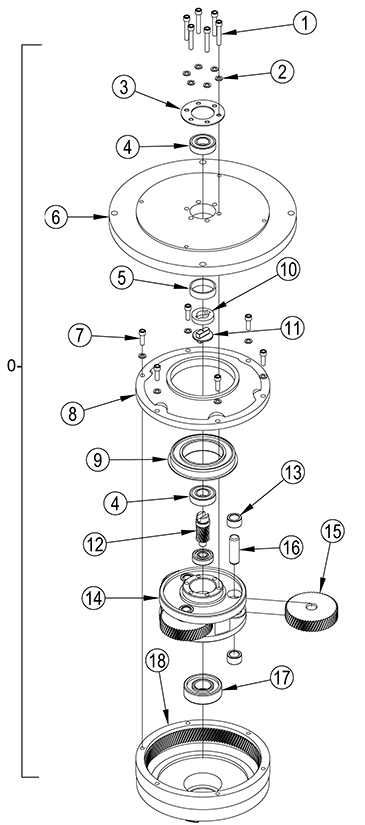

Gearbox Assembly - 270-2452
RefNbr Part Number Description Req Notes
0 370-2111 GEARBOX 10 TO 1 SANDER 1 (includes 1-18)
1 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated 6
2 170-6125 Washer 1/8 lock 6
3 170-0337 Retaining plate 1
4 170-0338 Ball bearing 3
5 170-1560 Sleeved spacer 1
6 N/A Not available 1 (Endshield)
7 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 6
8 N/A Not available 1 (Housing cover)
9 170-0342 Ball bearing 1
10 170-0343 Shaft retainer 1
11 170-0694 Odum coupling 1
12 170-0345 Pinon 1
13 170-0348 Needle bearing 6
14 N/A Not available 1 (Cage)
15 170-0349 Idle gear 3
16 170-0347 Shaft 3
17 170-0320 Bottom bearing 1
18 170-1225 Drive housing 1
