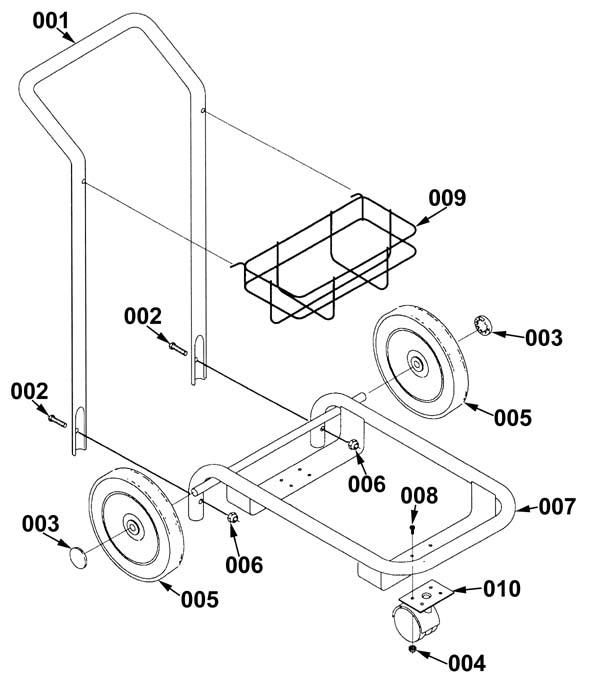

Cart Assembly - 173-6068 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
999-0506 |
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
|
|
| 003 |
173-2667 |
Nut 1/2 starlock push-on |
|
|
| 004 |
173-2472 |
Nut 10-32 with star washer |
|
|
| 005 |
173-2668 |
Wheel (OBSOLETE) |
|
|
| 006 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
|
|
| 008 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
|
|
| 010 |
173-2671 |
Swivel caster wheel |
|
|
|
|

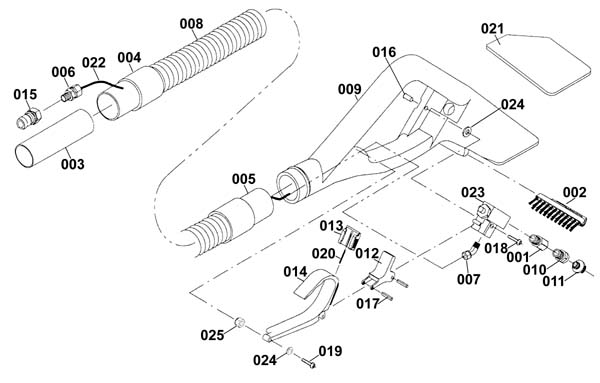

Deluxe Hand Tool Assembly - 173-6069 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
173-2672 |
Adapter 1/8 x 1/8 |
|
|
| 003 |
173-2674 |
Coupler 1.5 vac hose |
|
|
| 006 |
173-5000 |
Connector 1/4 x 1/8 (OBSOLETE) |
|
|
| 007 |
173-7016 |
45 degree elbow 1/4 x 1/8 |
|
|
| 009 |
173-2679 |
Housing handtool |
|
|
| 010 |
173-2086 |
Mini-quick jet body with seal |
|
|
| 011 |
173-2680 |
Mini quick replacement jet |
|
|
| 012 |
173-2585 |
Trigger lever |
|
|
| 014 |
173-2587 |
Handle lever |
|
|
| 015 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
|
|
| 016 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
|
|
| 018 |
999-1574 |
Screw 8-32 x 1 pan head phillips stainless steel |
|
|
| 019 |
999-0336 |
Screw 6-32 x 3/8 pan head phillips stainless steel |
|
|
| 020 |
173-2589 |
Compression spring .08D x .75L x .01W |
|
|
| 021 |
173-2683 |
Upholstery shield |
|
|
| 025 |
173-5037 |
Nut 6-32 elastic stop (OBSOLETE) |
|
|
|
|

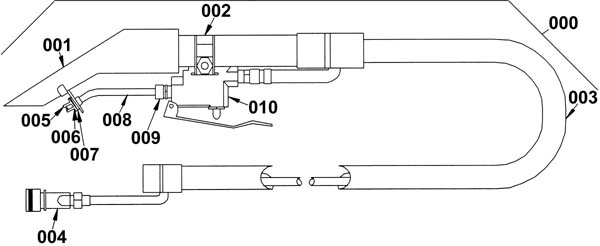

Hand Tool Assembly - 173-6070 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
273-5580 |
Hand tool kit |
|
Entire assembly as KIT |
| 001 |
173-7017 |
Spotter handtool housing (OBSOLETE) |
|
|
| 003 |
173-7018 |
Hose/cuff connector hose assembly |
|
|
| 004 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 005 |
173-7020 |
Jet assembly without ring (OBSOLETE) |
|
|
| 006 |
173-7021 |
Screw 8-32 x 1/4 pleated plastic |
|
|
| 007 |
173-7022 |
Retainer plate with screws |
|
|
| 008 |
173-7023 |
Spotter manifold 3/16 |
|
|
| 009 |
173-7024 |
Fitting 1/8 x 3/16 |
|
|
| 010 |
173-7025 |
Spotter plastic valve assembly (OBSOLETE) |
|
|
|
|

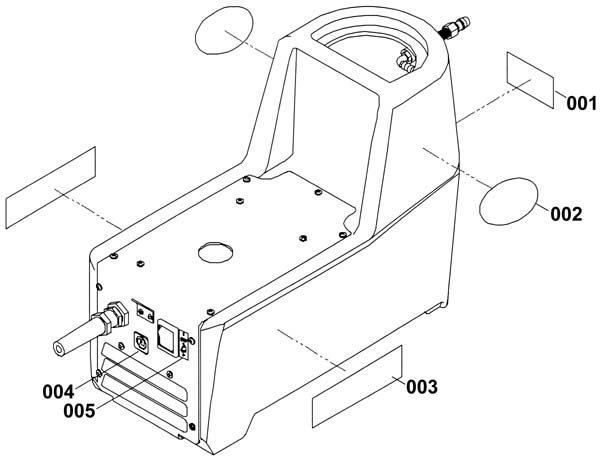

Labels Diagram - 173-6071 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
173-2228 |
Warning decal |
|
|
| 002 |
173-7027 |
Main Windsor label |
|
|
| 003 |
173-7028 |
Windsor logo label |
|
|
| 004 |
173-1282 |
For safety decal |
|
|
| 005 |
173-7029 |
On/Off vacuum pump label |
|
|
|
|

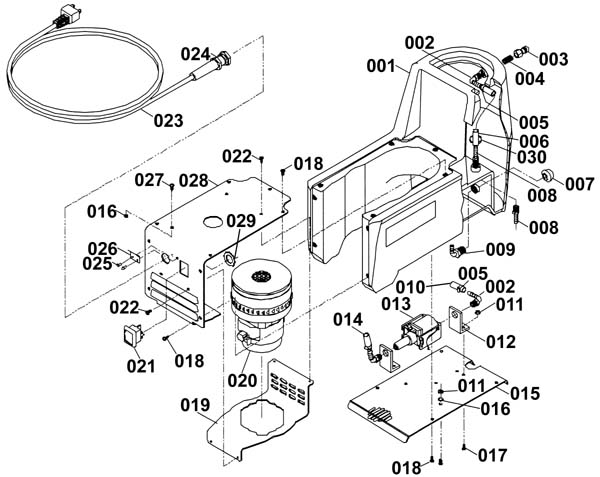

Solution Tank Assembly - 173-6072 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
173-7030 |
Spotter tank (dark gray) (OBSOLETE) |
|
|
| 002 |
173-2720 |
Hosebarb 1/8 MPT 3/8 |
|
|
| 003 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 004 |
173-7032 |
1/8 close nipple |
|
|
| 006 |
173-8327 |
Nylon braid 3/8 x 10 inch hose (OBSOLETE) |
|
|
| 007 |
189-4181 |
3/8 inch mesh strainer |
|
|
| 008 |
173-7033 |
Plastic hosebarb 1/8 x 3/8 |
|
|
| 009 |
173-1572 |
Hosebarb 3/8 x 3/8 inch |
|
|
| 010 |
173-7034 |
Rubber hose 3/8 x 17' |
|
|
| 011 |
173-2472 |
Nut 10-32 with star washer |
|
|
| 012 |
173-7035 |
PVC flojet pump L-shaped bracket (OBSOLETE) |
|
|
| 013 |
173-7036 |
120V flojet pump |
|
|
| 014 |
173-7037 |
Rubber hose 3/8 x 11 inches |
|
|
| 015 |
173-7038 |
Lower panel cover plate |
|
|
| 016 |
999-0311 |
Washer #10 external star lock zinc plated |
|
|
| 017 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
|
|
| 018 |
999-0811 |
Screw 10-32 x 3/8 pan head phillips stainless steel |
|
|
| 019 |
173-7040 |
Vacuum motor plate |
|
|
| 020 |
173-7041 |
115V Spotter vacuum assembly (OBSOLETE) |
|
|
| 021 |
189-0319 |
2 position rocker switch |
|
|
| 022 |
173-2549 |
Bolt 10-32 x 3/8 hex head thread rolling with star washer |
|
|
| 023 |
173-2707 |
18/3 cord set 25 foot (yellow) |
|
|
| 024 |
173-0682 |
Strain relief |
|
|
| 025 |
173-0808 |
Rivet 1/8 x 3/8 |
|
|
| 026 |
173-7042 |
Tension latch keeper |
|
|
| 027 |
173-7043 |
Screw 10-32 x 1 phillips pan head green |
|
|
| 028 |
173-7044 |
Switch/cord spotter plate |
|
|
| 029 |
173-2478 |
Nut 1/2 conduit nickel plated thread (OBSOLETE) |
|
|
| 030 |
173-7045 |
Nylon ratchet clamp 43/64 |
|
|
|
|

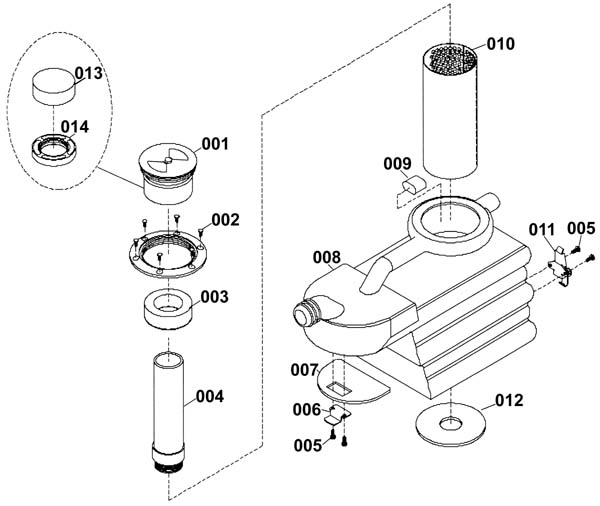

Recovery Tank Assembly - 173-6073 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
173-7046 |
Access cover assembly (OBSOLETE) |
1 |
|
| 002 |
999-1141 |
Screw 8 x 3/4 pan head phillips zinc plated |
6 |
|
| 003 |
173-7048 |
Spotter floating weight assembly |
1 |
|
| 004 |
173-7049 |
Spotter tube assembly |
1 |
|
| 005 |
999-0811 |
Screw 10-32 x 3/8 pan head phillips stainless steel |
4 |
|
| 006 |
173-7050 |
Recovery/solution tank grip bracket |
1 |
|
| 007 |
173-7051 |
Recovery tank seal gasket |
1 |
|
| 008 |
173-7052 |
Recovery spotter tank (dark blue) |
1 |
|
| 009 |
173-7053 |
Handle recovery tank plug |
1 |
|
| 010 |
173-7054 |
Backsplash shield plate |
1 |
|
| 011 |
173-7055 |
Tension latch |
1 |
|
| 012 |
273-0910 |
Vacuum bracket gasket |
1 |
|
| 013 |
173-7056 |
Spotter foam air filter |
|
|
| 014 |
173-7057 |
PVC plat shutoff bushing 3 inches |
|
|
|
|

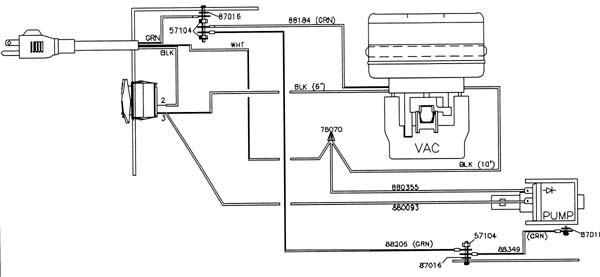

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Suggested Spare Parts - 173-9893 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
189-0319 |
2 position rocker switch |
|
|
| 0.9835 |
173-7020 |
Jet assembly without ring (OBSOLETE) |
|
|
| 0.9835 |
173-2680 |
Mini quick replacement jet |
|
|
| 0.9835 |
173-7036 |
120V flojet pump |
|
|
| 0.9835 |
173-7041 |
115V Spotter vacuum assembly (OBSOLETE) |
|
|
|
|
